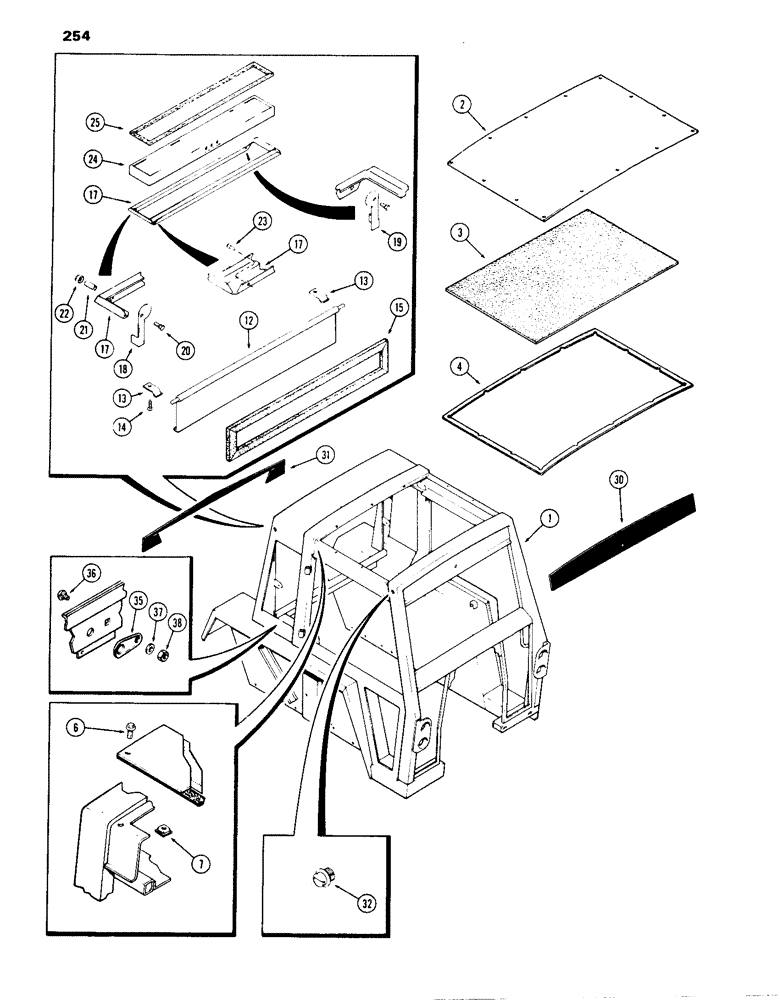

Запчасти Case IH 1070 (254) - CAB, UPPER SHEET METAL, BETTENDORF (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
A62790
CAB w/o heater or air conditioner, machinery item, 1st used trac. ser. no. 8676652
1шт.
A62791
CAB w/ air conditioner, machinery item, 1st used trac. ser. no. 8676652
1шт.
A62792
CAB w/ heater, machinery item, 1st used trac. ser. no. 8676652
1шт.
A62793
CAB w/ air conditioner and heater, machinery item, 1st used trac. ser. no. 8676652
1шт.
1
NSS
NOT SOLD SEPARAT
FRAME ASSY. cab
1шт.
2
F63196
ROOF
ASSY. cab, Order F63721
1шт.
3
F63221
FOAM roof temperature barrier, Order F63722
1шт.
4
NSS
NOT SOLD SEPARAT
SEAL roof, 1/4 x 3/8", Order A42676
1шт.
A42676
SEAL
roof, 25' roll
1шт.
6
163-14
SCREW,Hex Wshr Hd, 1/4" - 20 x 1"
1/4 x 1" N.C. hex. washer hd. mach
18шт.
7
131-617
NUT,Ret, J, 1/4"-20
1/4" "J" type tinnerman
18шт.
12
F89643
VALVE
ASSY. pressure adjusting
1шт.
13
F63260
CLIP
valve hinge
2шт.
14
187-1032
SCREW,Cross Truss Hd, #10 x 1/2"
self-tapping, no. 10 x 1/2" phillips hd.
2шт.
15
NSS
NOT SOLD SEPARAT
SEAL valve, 1/8 x 1/2 x 16-1/2", Order A42905
1шт.
A42905
FOAM
SEAL valve, 50' roll
1шт.
17
F89645
PLATE
ASSY. filter inlet
1шт.
18
F63267
CAM latch, R.H.
1шт.
19
F63266
LATCH
CAM latch, L.H.
1шт.
20
113-3
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
2шт.
21
T32262
SPACER cam bolt
2шт.
22
86625061
NUT,1/4"-20, GB
NUT lock, 1/4" N.C. hex.
2шт.
23
187-1032
SCREW,Cross Truss Hd, #10 x 1/2"
self-tapping, no. 10 x 1/2" phillips hd.
7шт.
24
A42573
FILTER
air intake
1шт.
25
F63197
SEAL filter, 1/4 x 3/4 x 90-13/64", Order (2) F63331 and (2) F63332
1шт.
30
A42582
DECAL
front panel
1шт.
31
321-1915
DECAL rear crown
1шт.
32
353-550
PLUG,Slotted, 1/2"-13
Plastic, In lifting holes Slotted, 1/2"-13
4шт.
35
F12598
PLATE
COVER utility
1шт.
36
111-107
CARRIAGE BOLT,Short NK, 1/4"-20 x 1/2", G2
BOLT, 1/4 x 1/2" N.C. carr.
1шт.
37
195-102
WASHER,1/4"
5/16 x 3/4 x 1/16"
1шт.
38
131-171
NUT, 1/4" N.C. Esna
1шт.
Выбрано товаров: 32
