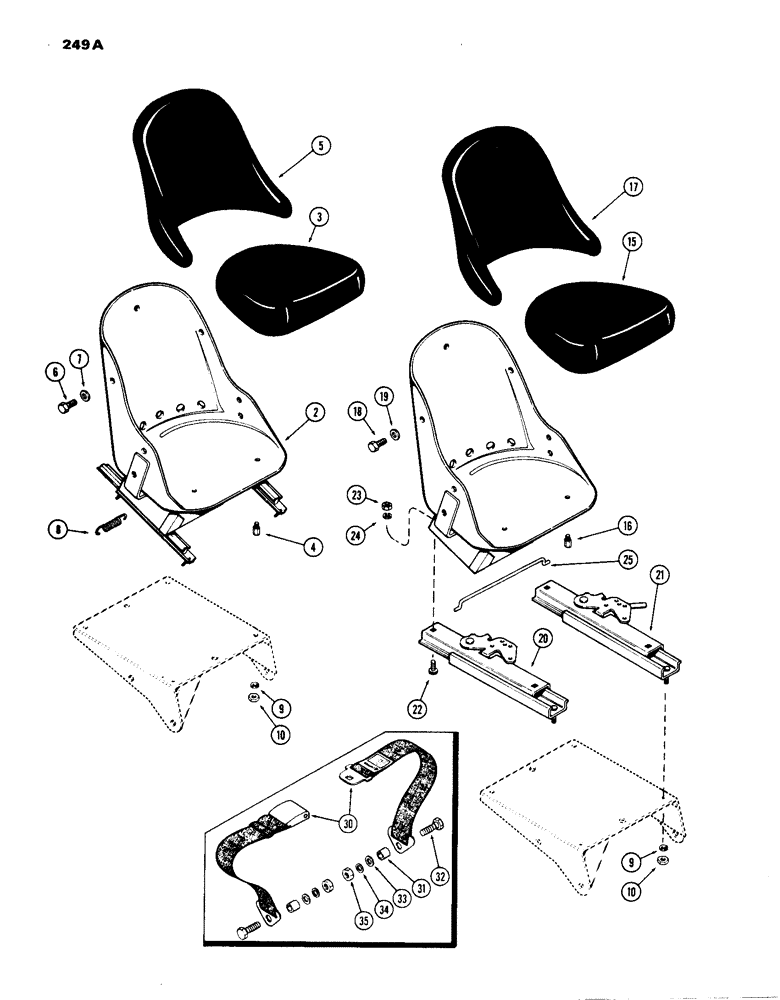

Запчасти Case IH 1070 (249A) - BUCKET SEAT (09) - CHASSIS/ATTACHMENTS

A61223

SEAT

ASSY. bucket, See A64851, Includes Ref. 2 - 10

1шт.

2

NSS

NOT SOLD SEPARAT

SHELL seat

1шт.

3

A42745

SEAT

CUSHION ASSY. seat bottom

1шт.

4

L30534

X

PIN cushion locating, Order L32870

2шт.

5

A42747

BACKREST

CUSHION ASSY. seat backrest

1шт.

6

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

5шт.

7

195-104

WASHER,3/8"

7/16 x 1 x 5/32"

5шт.

8

A42299

SPRING

adjuster

2шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

10

9635082

NUT,5/16" - 18, Gr 5

4шт.

A64851

SEAT

ASSY. bucket, Replaces A61223 for repairs, Includes Ref. 15 - 25

1шт.

15

A42745

SEAT

CUSHION seat bottom

1шт.

16

L32870

PIN

locating, seat cushion

2шт.

17

A42747

BACKREST

CUSHION ASSY. backrest

1шт.

18

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

5шт.

19

195-104

WASHER,3/8"

7/16 x 1 x 5/32"

5шт.

20

A64818

ADJUSTER

R.H., seat assy

1шт.

21

A64819

ADJUSTER

L.H., seat assy

1шт.

22

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

23

9635082

NUT,5/16" - 18, Gr 5

8шт.

24

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

25

A64822

ROD lock, adjuster

1шт.

30

A66391

SAFETY BELT

SAFETY BELT, Replaces A60906

1шт.

31

A60907

BUSHING

SPACER anchor, seat belt

2шт.

32

A61946

STEP BOLT

BOLT seat belt shoulder

2шт.

33

195-529

WASHER,7/16", SAE

15/32 x 59/64 x 1/16"

2шт.

34

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

35

425-117

NUT,7/16"-20, G5

7/16" N.F. hex.

2шт.
