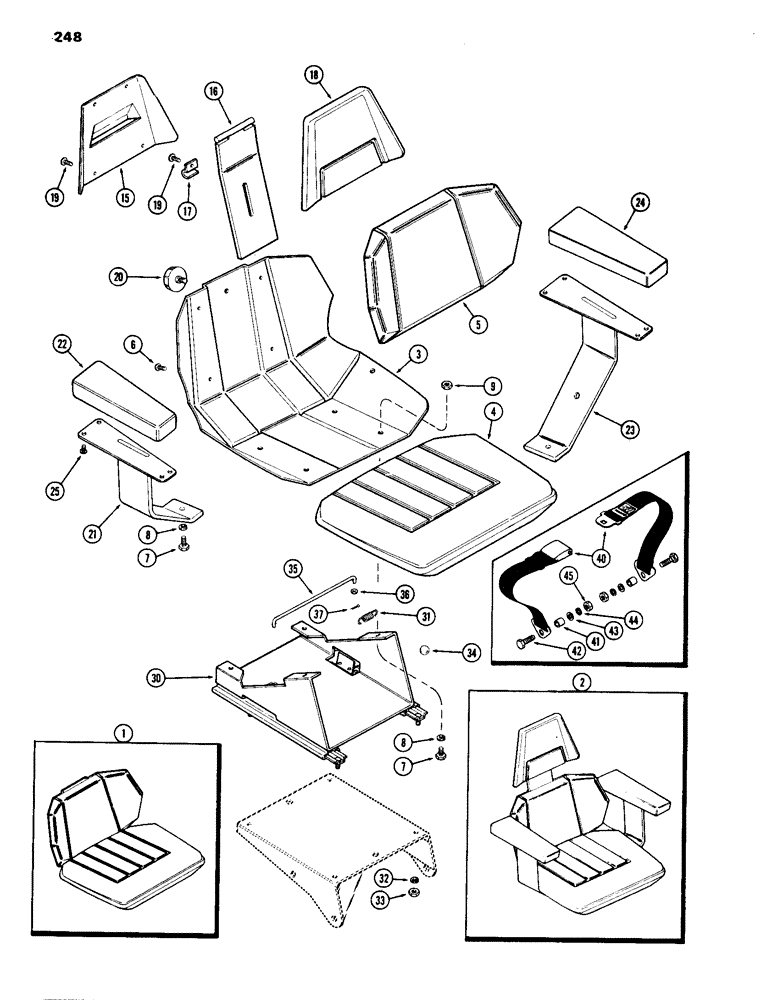

Запчасти Case IH 1070 (248) - AGRI-KING SEAT (09) - CHASSIS/ATTACHMENTS

1

A60460

DIFFERENTIAL ASSY

SEAT ASSY. Agri-King, w/o arm and backrests, Includes Ref. 3 - 9

1шт.

2

A60470

SEAT

ASSY. Agri-King, w/ arm and backrests, Includes Ref. 3 - 25, Order A64492

1шт.

Subs to 1340130C1. This new seat will not fit if the mounting bracket no. 30 A60450 is still being used. There will be an issue with the way the new seat fits on the old bracket. The only way to solve this is to remove the original bracket, order B93708 bracket, and order a seat that would fit with this bracket from the Mix n Match Seat program. You will then need to redrill holes in the floor to match the bracket.

1шт.

3

A60461

FRAME

ASSY. seat, Order A66642

1шт.

4

A60462

CUSHION

ASSY. seat bottom

1шт.

5

A60465

CUSHION

ASSY. backrest, Order A64823

1шт.

6

182-123

SCREW,Sl Pan Hd, #10 - 24 x 3/8"

no. 10 x 3/8" N.C. pan hd. mach

4шт.

7

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

4шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

w/arm and backrests only Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

7

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT 3/8 x 1/2" N.C. hex., w/o arm and backrest only

4шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

25-106

NUT,3/8"-16, G5

3/8" N.C. hex.

4шт.

A60696

BACKREST ASSY. upper, Includes Ref. 15 - 19

1шт.

15

A60478

FRAME

upper backrest cushion, Order A66649

1шт.

16

A60697

SPRING ASSY. backrest

1шт.

17

A60479

CLIP

upper backrest, pivot

2шт.

18

A60472

CUSHION

ASSY. backrest, upper

1шт.

19

182-123

SCREW,Sl Pan Hd, #10 - 24 x 3/8"

no. 10 x 1/2" pan hd., mach

6шт.

20

A60468

KNOB

ASSY. backrest adjusting

1шт.

21

A61092

SUPPORT

ASSY. arm rest, R.H.

1шт.

22

A61098

CUSHION

arm rest, R.H.

1шт.

23

A61093

SUPPORT

ASSY. arm rest, L.H.

1шт.

24

A61099

CUSHION

arm rest, L.H.

1шт.

25

187-534

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

SCREW self-tapping, no. 10 x 1/2" rd. hd.

8шт.

30

A60450

SUPPORT

ASSY. seat, upper, Includes Ref. 31

1шт.

31

A42299

SPRING

adjuster return

1шт.

32

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

33

9635082

NUT,5/16" - 18, Gr 5

4шт.

34

A59829

KNOB

seat adjusting, L.H., to be attached w/ adhesive 345-22

1шт.

35

A60898

ROD seat lock

1шт.

36

95-3

WASHER,#12

1/4 x 9/16 x 3/64"

2шт.

37

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

2шт.

40

A66391

SAFETY BELT

SAFETY BELT, Replaces A60906

1шт.

41

A60907

BUSHING

SPACER anchor, seat belt

2шт.

42

A61946

STEP BOLT

BOLT seat belt shoulder

2шт.

43

195-529

WASHER,7/16", SAE

15/32 x 59/64 x 1/16"

2шт.

44

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

45

425-117

NUT,7/16"-20, G5

7/16" N.F. hex.

2шт.
