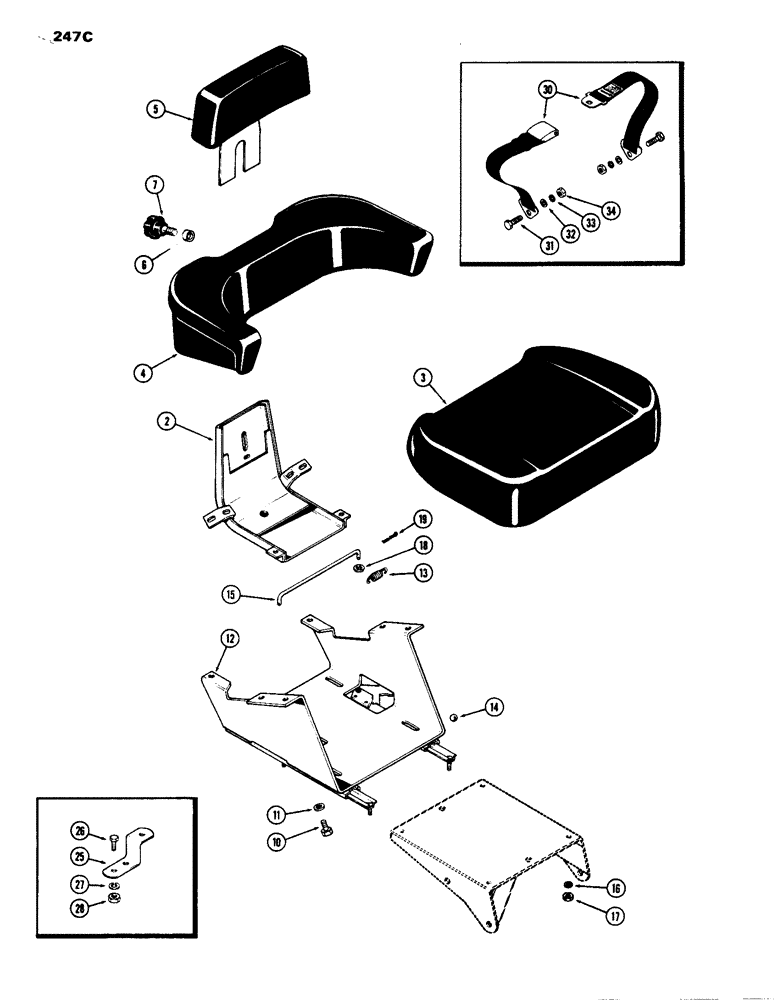

Запчасти Case IH 1070 (247C) - SERIES 30 SEAT (09) - CHASSIS/ATTACHMENTS

A61224

SEAT

ASSY. Series "30", Includes Ref. 2 - 7

1шт.

2

A57405

SUPPORT

seat frame, Order A44792

1шт.

3

A33317

CUSHION

seat, Order A65093

1шт.

4

A42497

BACKREST

seat, lower, Order A44791

1шт.

5

A34283

CUSHION

BACKREST seat, upper, Order A44790

1шт.

6

A40600

SPACER

backrest adjusting

1шт.

7

A40972

KNOB

backrest adjusting

1шт.

10

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

8шт.

10

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

11

195-103

WASHER,5/16"

3/8 x 7/8 x 3/32"

10шт.

12

A61225

SUPPORT ASSY. seat, Includes Ref. 13, 14 and 15

1шт.

13

A42299

SPRING

adjuster return

1шт.

14

A59829

KNOB

seat adjuster, L.H., to be attached w/ adhesive 345-22

1шт.

15

A60898

ROD seat lock

1шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

17

9635082

NUT,5/16" - 18, Gr 5

4шт.

18

95-3

WASHER,#12

1/4 x 9/16 x 3/64"

2шт.

19

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

2шт.

25

A62177

BRACKET

seat belt anchor

2шт.

26

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

4шт.

27

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

28

131-104

NUT, 7/16" N.C. hex.

4шт.

30

A66391

SAFETY BELT

SAFETY BELT, Replaces A60906

1шт.

31

A61946

STEP BOLT

BOLT seat belt shoulder

2шт.

32

195-529

WASHER,7/16", SAE

15/32 x 59/64 x 1/16"

2шт.

33

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

34

425-117

NUT,7/16"-20, G5

7/16" N.C. hex.

2шт.
