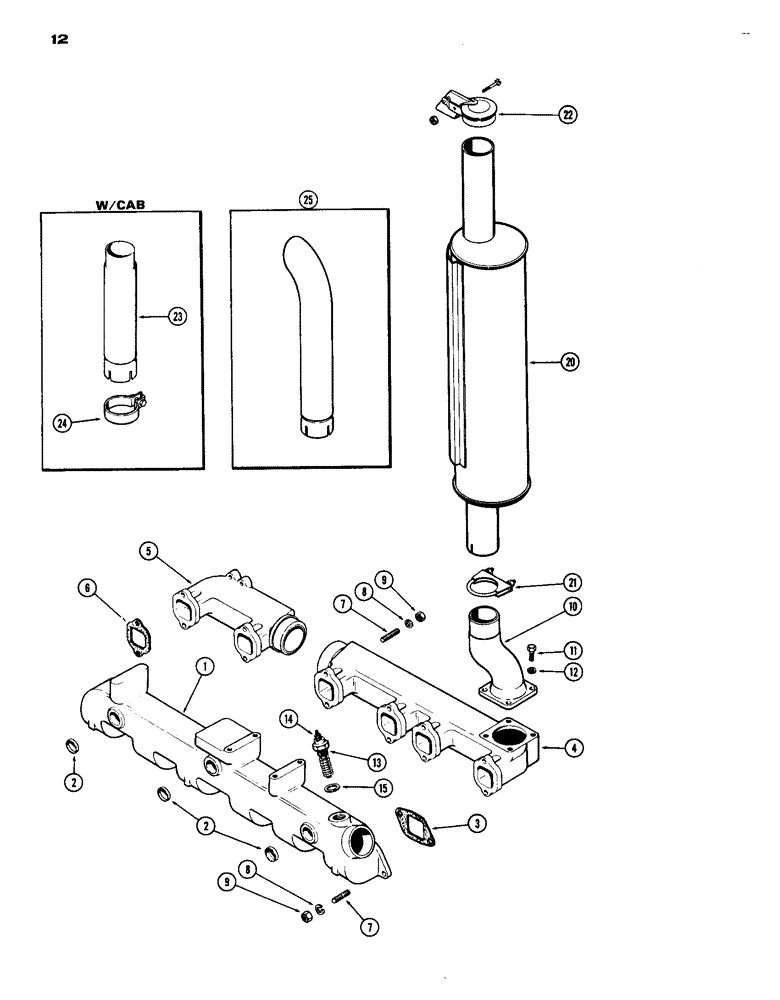

Запчасти Case IH 1070 (012) - MANIFOLD AND MUFFLER, (451B) DIESEL ENGINE (02) - ENGINE

1

A61005

MANIFOLD

intake, Includes Ref. 2

1шт.

2

41-1020

PLUG,Cup, 1 1/4"

intake manifold, Replaces A23468

3шт.

3

A58662

MANIFOLD GASKET

intake manifold

6шт.

4

A58749

MANIFOLD

exhaust, front

1шт.

5

A58664

MANIFOLD

exhaust, rear

1шт.

6

A58666

MANIFOLD GASKET

exhaust manifold

6шт.

7

A59077

STUD

intake and exhaust manifolds

24шт.

8

92-6

LOCK WASHER,3/8"

24шт.

9

25-106

NUT,3/8"-16, G5

3/8" N.C. hex.

24шт.

10

A58751

MUFFLER

STACK exhaust manifold

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

A37775

HEATER

ASSY. intake manifold, 12 V14, Includes Ref. 14

1шт.

14

129-503

NUT,1/4"-20, Brass

1шт.

15

A20916

MANIFOLD GASKET

GASKET heater

1шт.

20

A59765

MUFFLER

1шт.

21

A27115

CLAMP

muffler

1шт.

22

A59766

CAP

muffler rain, used w/o cab

1шт.

23

A61110

EXTENSION

exhaust pipe, used w/ cab

1шт.

24

A62168

CLAMP

extension, used w/cab, Order A27115

1шт.

25

A62471

EXTENSION

exhaust, optional w/ Ref. 23

1шт.
