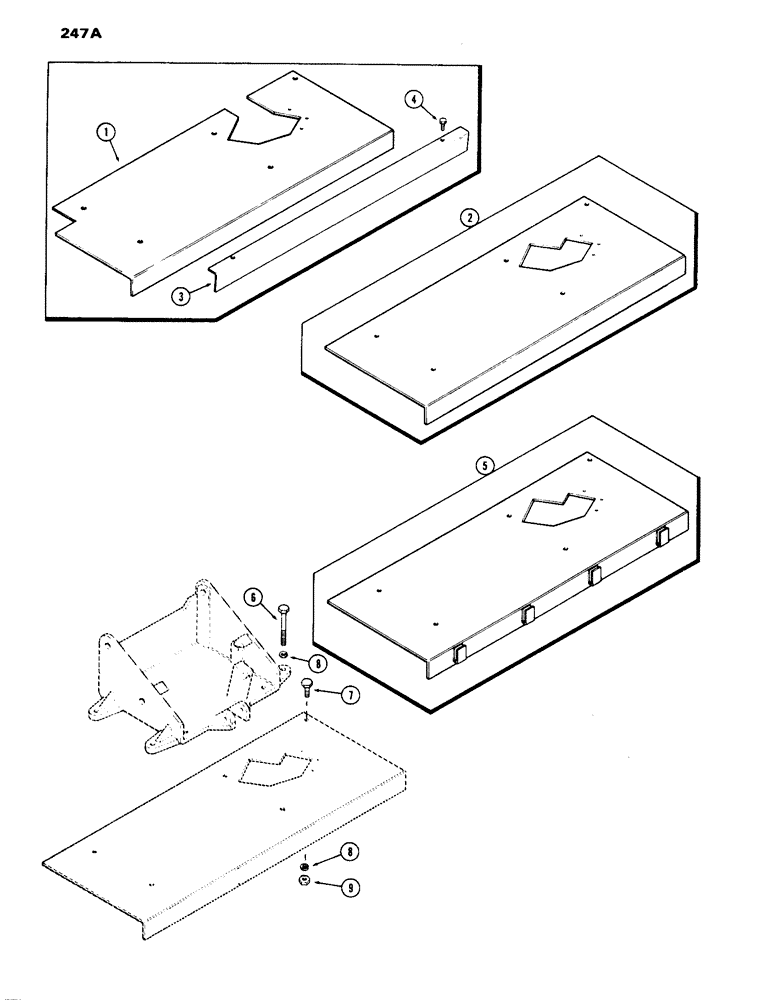

Запчасти Case IH 1070 (247A) - SEAT SUSPENSION PLATES (09) - CHASSIS/ATTACHMENTS

1

A62673

SUPPORT

PLATE seat support, w/ or w/o cab, 1st used trac. ser. no. 8675001

1шт.

2

A60349

PLATE seat support, w/o cab, used prior to trac. ser. no. 8675001, Order A62673

1шт.

3

A62461

FLOOR

ANGLE mounting, floor mat, w/ cab, 1st used trac. ser. no. 8675001

1шт.

4

187-1060

SELF-TAP SCREW,Sltd Hex Hd, 1/4" x 3/4"

SCREW, 1/4-14 x 3/4" self-drill and tap

2шт.

5

A60877

PLATE

seat support, w/ cab, used prior to trac. ser. no. 8675001, Order A62673, A62461 and (2) 187-1060

1шт.

6

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

3/8 x 3-1/2" N.C. hex

4шт.

7

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

plate, 3/8 x 2-3/4" N.C. hex

1шт.

8

92-6

LOCK WASHER,3/8"

5шт.

9

25-106

NUT,3/8"-16, G5

3/8" N.C. hex.

1шт.
