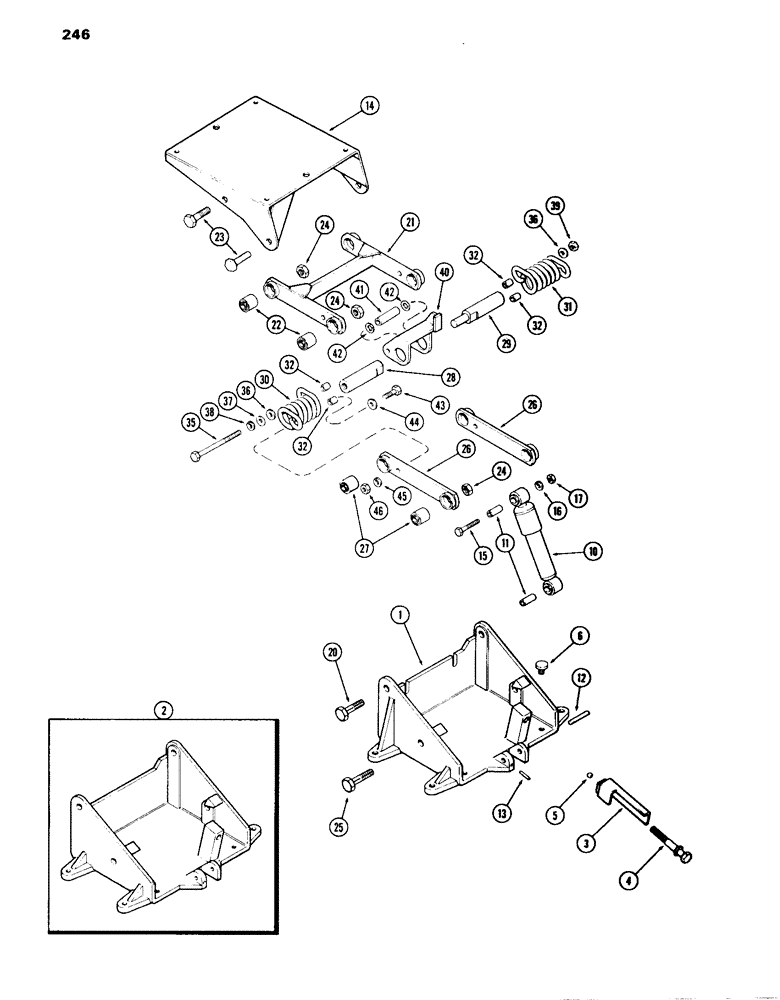

Запчасти Case IH 1070 (246) - SEAT SUSPENSION (09) - CHASSIS/ATTACHMENTS

A62670

SUSPENSION

ASSY. seat, Order A135608, 1st used trac. ser. no. 8675001

1шт.

A60459

SUSPENSION ASSY. seat, used prior to trac. ser. no. 8675001, Order A62670

1шт.

1

A62671

SUPPORT

seat, 1st used trac. ser. no. 8675001, Order A135544

1шт.

2

A60320

SUPPORT seat, used prior to trac. ser. no. 8675001, Order A62671, Includes Ref. 3 - 46

1шт.

3

A60675

BRACKET ASSY. seat adjusting

1шт.

4

A60677

SCREW seat adjusting

1шт.

5

211-12

BALL,7/16 Dia

seat adjusting screw, 7/16" dia. steel

1шт.

6

A60333

BUMPER support arm

2шт.

10

A60342

SHOCK ABSORBER

SHOCK seat adjusting

1шт.

11

A60343

BUSHING

- Seat shock mounting

2шт.

12

A60344

PIN seat adjusting shock pivot

1шт.

13

138-64

LOCK PIN,1/8" x 1 3/8", Slotted

Pin, 1/8" x 1 3/8", Slotted

1шт.

14

A60345

PLATE ASSY. seat shock mtg

1шт.

15

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

25-106

NUT,3/8"-16, G5

3/8" N.C. hex.

1шт.

20

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

21

A61846

ARM

ASSY. seat support, upper, Replaces A60324, Includes Ref. 22

1шт.

22

A60330

BUSHING,15.95mm ID x 35.56mm OD x 30.48mm L

- Arm

4шт.

23

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

24

25-1010

NUT,5/8"-11, G5

6шт.

25

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

26

A60325

ARM ASSY. seat support, lower, Includes Ref. 27

2шт.

27

A60330

BUSHING,15.95mm ID x 35.56mm OD x 30.48mm L

- Arm

4шт.

28

A60678

SPACER seat support, R.H.

1шт.

29

A60679

SPACER

seat support, L.H.

1шт.

30

A60684

SPRING

torsion, R.H.

1шт.

31

A60685

SPRING

torsion, L.H.

1шт.

32

A60335

BUSHING

seat spring, bolt

4шт.

35

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

3/8 x 4-1/2" N.C. hex

1шт.

36

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER bracket adjusting, 21/32 x 1 x 1/8"

1шт.

37

95-6

WASHER,3/8"

7/16 x 1 x 5/64"

2шт.

38

92-6

LOCK WASHER,3/8"

1шт.

39

25-106

NUT,3/8"-16, G5

3/8" N.C. hex.

1шт.

40

A60680

BRACKET ASSY. seat spring adjustment

1шт.

41

A60683

SPACER seat bracket adjustment

1шт.

42

195-26

WASHER

WASHER, 7/16 x 7/8 x 3/32"

1шт.

43

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3/8 x 1-3/4" N.C. hex

2шт.

44

95-6

WASHER,3/8"

7/16 x 1 x 5/64"

2шт.

45

92-6

LOCK WASHER,3/8"

2шт.

46

25-106

NUT,3/8"-16, G5

3/8" N.C. hex.

2шт.
