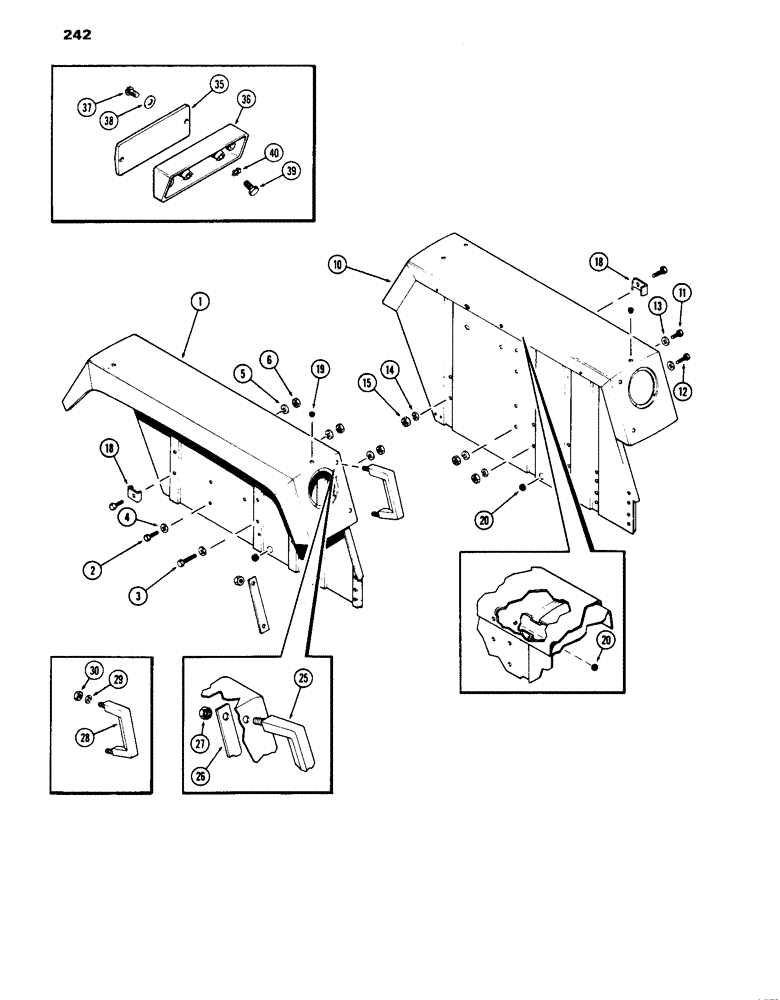

Запчасти Case IH 1070 (242) - FENDERS, 12" (09) - CHASSIS/ATTACHMENTS

1

A64878

FENDER

ASSY. 12" R.H., Replaces A60730

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

R.H. fender Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

3

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

R.H. fender Hex, 3/8"-16 x 1 3/4", G5

5шт.

4

195-526

WASHER,7/16" x 7/8" x .083"

7/16 x 7/8 x 3/32", R.H. fender

6шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , RH fender 3/8"

6шт.

6

9628503

NUT,3/8"-16, G5

RH fender 3/8"-16, G5

6шт.

10

A64879

FENDER

ASSY. 12" L.H., Replaces A60731

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

L.H. fender Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

12

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

L.H. fender Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

LH fender Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

12

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

L.H. fender Hex, 3/8"-16 x 1 3/4", G5

3шт.

13

195-526

WASHER,7/16" x 7/8" x .083"

7/16 x 7/8 x 3/32", L.H. fender

6шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , LH fender 3/8"

6шт.

15

9628503

NUT,3/8"-16, G5

LH fender 3/8"-16, G5

4шт.

18

A59318

BRACKET

fender side sheet mtg., R.H. and L.H.

4шт.

19

353-405

PLUG,Dome, .562" hole, Nylon

button, 9/16" hole, nylon

1шт.

20

A59722

GROMMET

wire harness

2шт.

A65434

KIT

ATTACHMENT fender mounted handle, machinery item, Includes Ref. 25, 26 and 27, w/o cab

1шт.

25

A60530

HANDLE

R.H. and L.H.

2шт.

26

A59338

PLATE

handle mtg.

1шт.

27

230-4216

LOCK NUT,3/8"-16, GA

NUT lock, 3/8" N.C. hex.

4шт.

28

A60530

HANDLE

cab mounting, w/ cab

1шт.

29

192-46

LOCK WASHER,3/8"

WASHER, LOCK, , w/Cab 3/8"

2шт.

30

129-770

NUT,3/8"-16, G5

3/8" N.C. hex., w/ cab

2шт.

35

A62415

REFLECTOR

fender, red

2шт.

36

A62416

BRACKET

reflector

2шт.

37

187-1058

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW self-tapping, 10-5/8" rd. hd., reflector

4шт.

38

195-512

WASHER,#10

7/32 x 7/16 x 1/16", reflector

4шт.

39

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2" N.C. hex., self-tapping, reflector

4шт.

40

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER shakeproof, 1/4" int./ext, reflector

4шт.
