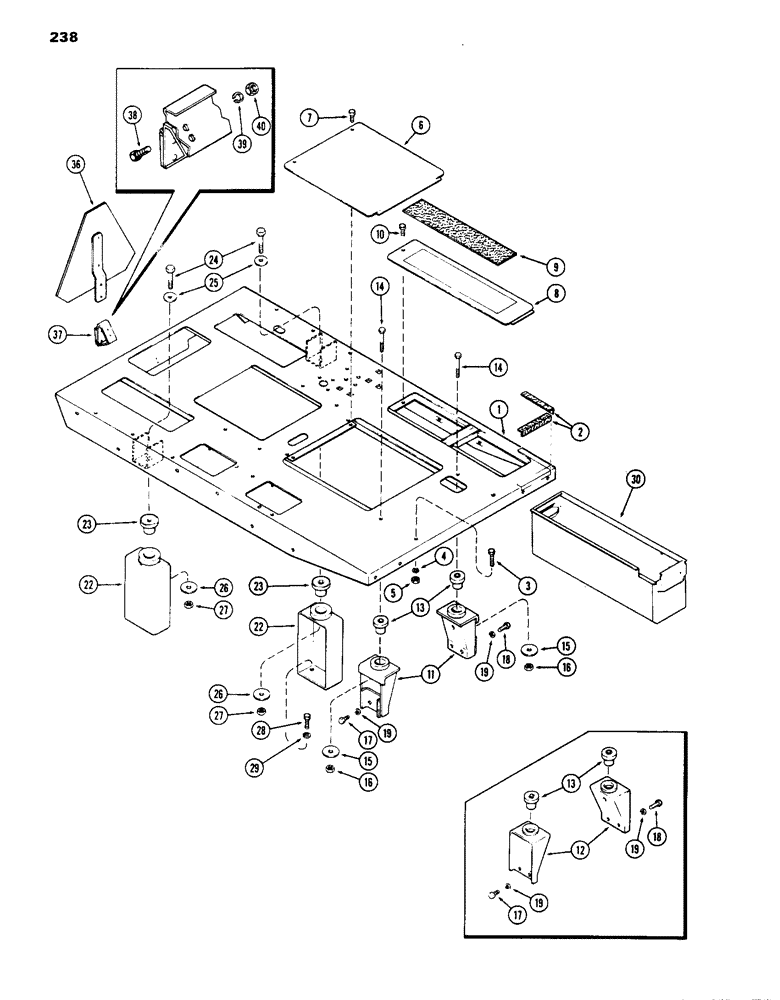

Запчасти Case IH 1070 (238) - PLATFORM (09) - CHASSIS/ATTACHMENTS

1

A62150

DECK ASSY. platform, Replaces A60672

1шт.

2

A62468

TREAD

platform, non-slip

2шт.

3

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

4

92-5

LOCK WASHER,5/16"

2шт.

5

9635082

NUT,5/16" - 18, Gr 5

5/16" N.C. hex.

2шт.

6

A61175

COVER ASSY. platform

1шт.

7

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

8

A59507

GUARD

COVER ASSY. battery

1шт.

9

A62469

COVER

TREAD battery cover, non-slip

1шт.

10

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

11

A62652

MOUNTING PARTS

MOUNT ASSY. platform, front, 1st used trac. ser. no. 867551

2шт.

12

A59510

BRACKET

MOUNT ASSY. platform, front, used prior to trac. ser. no. 8675001

2шт.

13

A59514

RUBBER BUSHING,13.49mm ID x 34.29mm OD x 41.1mm L

MOUNT rubber, front

2шт.

14

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

2шт.

15

195-36

WASHER

9/16 x 1-7/8 x 1/8"

2шт.

16

25-108

NUT,1/2"-13, G5

1/2" N.C. hex.

2шт.

17

113-2401

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

Used w/A62652 mount Hex, 1/2"-13 x 1 5/8", G5

2шт.

17

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Used w/ A59510 mount Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

18

113-2400

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

Used w/A62652 mount Hex, 1/2"-13 x 1 3/8", G5, Full Thd

2шт.

19

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Used w/ A59510 mount Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

19

92-8

LOCK WASHER,1/2"

4шт.

22

A60547

MOUNT ASSY. platform, rear

2шт.

23

A59516

RUBBER MOUNTING,63.5mm OD x 50.8mm L

MOUNT rubber, gear

2шт.

24

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

2шт.

25

95-10

WASHER,5/8"

11/16 x 1-3/4 x 9/64"

2шт.

26

A59517

WASHER,16.66mm ID x 57.15mm OD x 6.35mm Thk

21/32 x 2-1/4 x 1/4"

2шт.

27

131-1105

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

28

13-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5, Full Thd

4шт.

29

92-8

LOCK WASHER,1/2"

4шт.

30

A62137

BOX

ASSY. battery, Replaces A59556

1шт.

36

A59450

WARNING SIGN

EMBLEM ASSY. slow moving vehicle

1шт.

37

A60977

BRACKET

ASSY. smv emblem

1шт.

38

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

SMV emblem Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

39

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , SMV emblem 1/4"

2шт.

40

25-104

NUT,1/4"-20, G5

SMV emblem 1/4"-20, G5

2шт.
