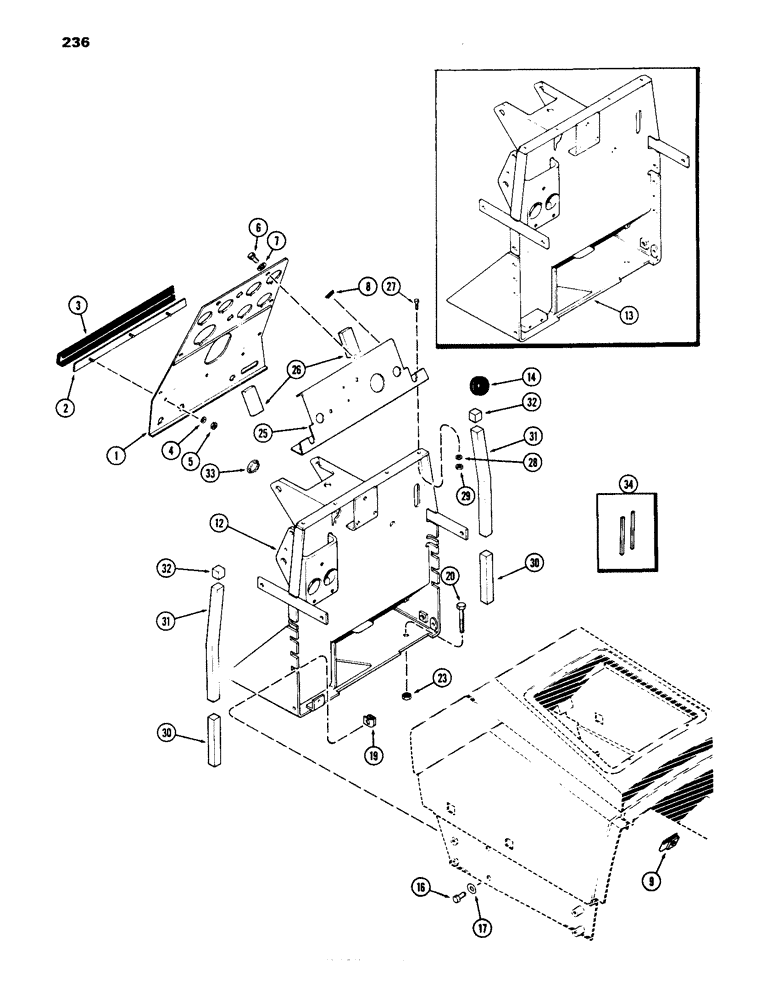

Запчасти Case IH 1070 (236) - INSTRUMENT PANEL (09) - CHASSIS/ATTACHMENTS

1

A62013

PANEL

ASSY. instrument, Replaces A60955

1шт.

2

A60957

PLATE ASSY. moulding

1шт.

3

A60956

MOLDING instr. panel bumper, Order A63895

1шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

5

25-104

NUT,1/4"-20, G5

3шт.

6

A60266

SCREW,Hex, 0.19"-24 x 5/8", Brass, BLK

no. 10-24 x 5/8" hex., brass

6шт.

7

193-93

LOCK WASHER,#10

WASHER shakeproof, no. 10 int

6шт.

8

131-621

NUT,Ret, J, #10-24

tinnerman, no. 10-24

4шт.

9

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

RETAINER, no. 10-24, "J" type

2шт.

12

A62365

FIREWALL ASSY., 1st used trac. ser. no. 8675001

1шт.

13

A61761

FIREWALL ASSY., Replaces A59794

1шт.

14

A59719

GROMMET

firewall, 1-1/8 x 2-1/2 x 1/2"

1шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Firewall Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

17

95-6

WASHER,3/8"

7/16 x 1 x 5/64", firewall

4шт.

19

131-608

NUT

tinnerman cage, 3/8" N.C., firewall

4шт.

20

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

Firewall Hex, 1/2"-13 x 3 3/4", G5

2шт.

20

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Firewall Hex, 1/2"-13 x 2", G5

2шт.

23

131-1116

LOCK NUT,1/2"-13, GB

NUT, 1/2" N.C. hex., crown lock, firewall

2шт.

23

25-108

NUT,1/2"-13, G5

1/2" N.C. hex., firewall

2шт.

25

A59803

BAFFLE ASSY. steering wheel, Includes Ref. 26, firewall

1шт.

26

A59805

FILLER

BAFFLE air, firewall, to be attached w/ adhesive 345-22

2шт.

27

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Firewall Hex, 1/4"-20 x 1", G5

4шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Firewall 1/4"

4шт.

29

25-104

NUT,1/4"-20, G5

Firewall 1/4"-20, G5

4шт.

30

A60777

FOAM

BAFFLE steering, column support, lower, firewall, to be attached w/ adhesive 345-22

2шт.

31

A60776

FOAM

BAFFLE steering, column support, center, firewall, to be attached w/ adhesive 345-22

2шт.

32

A60775

BAFFLE steering column support, upper, firewall, to be attached w/ adhesive 345-22

2шт.

33

205-61

HOLE PLUG BUTTON,1 1/2"

PLUG button, 1-1/2" dia., firewall

1шт.

34

345-27

BEAD weather seal, 1/4 x 10", firewall

1шт.
