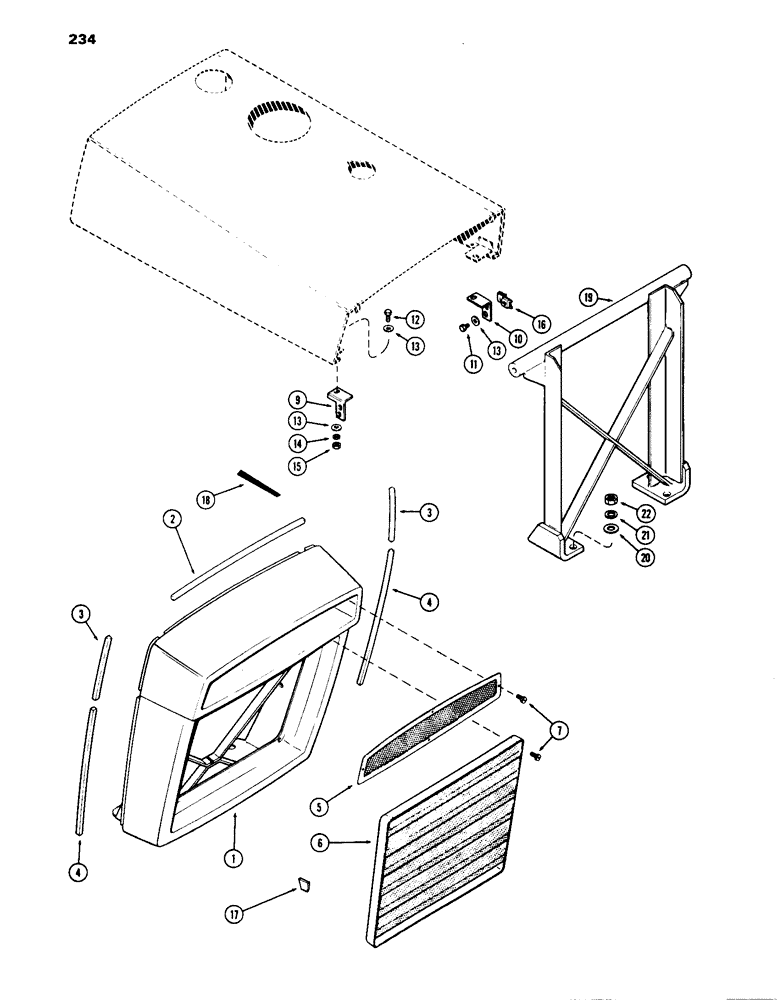

Запчасти Case IH 1070 (234) - GRILLE (09) - CHASSIS/ATTACHMENTS

1

A64244

PACKAGE, REPAIR

GRILLE fiberglass, Replaces A59160, Order A139374

1шт.

2

A59746

SEAL

SPACER hood to grille, center, to be attached w/ adhesive 345-22

1шт.

3

A59747

GASKET

SPACER hood to grille side, upper, to be attached w/ adhesive 345-22

2шт.

4

A59748

GASKET

SPACER front side sheets to grille, to be attached w/ adhesive 345-22

2шт.

5

A59754

GRILLE

SCREEN ASSY. grille cap

1шт.

6

A59752

FILTER SCREEN

SCREEN ASSY. grille

1шт.

7

169-154

SCREW,Phil Fil Hd, 5/16" - 18 x 3/4"

5/16 x 3/4" N.C. brass, phillips hd

8шт.

9

A62742

BRACKET

front hood to grille, R.H., Replaces A59240

1шт.

10

A62743

BRACKET

front hood to grille, L.H., Replaces A59241

1шт.

11

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

5/16 x 3/4" N.C. hex

4шт.

12

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

95-5

WASHER,3/8" x 7/8" x .083"

3/8 x 7/8 x 5/64"

8шт.

14

92-5

LOCK WASHER,5/16"

6шт.

15

9635082

NUT,5/16" - 18, Gr 5

5/16" N.C. hex

2шт.

16

131-616

NUT,Ret, J, 5/16"-18

tinnerman, 5/16" N.C., type 3

4шт.

17

A62211

FOAM

grille screen

12шт.

18

A62690

GUARD

TRIM grille sight gauge

1шт.

19

A60535

ATTACHMENT implement support, machinery item

1шт.

20

195-45

WASHER,3/4"

Implement support 3/4"

4шт.

21

192-167

LOCK WASHER,3/4"

WASHER, LOCK, , Implement support 3/4"

4шт.

22

25-1712

NUT,3/4"-16, G5, Hvy

3/4" N.F. hex., implement support

4шт.
