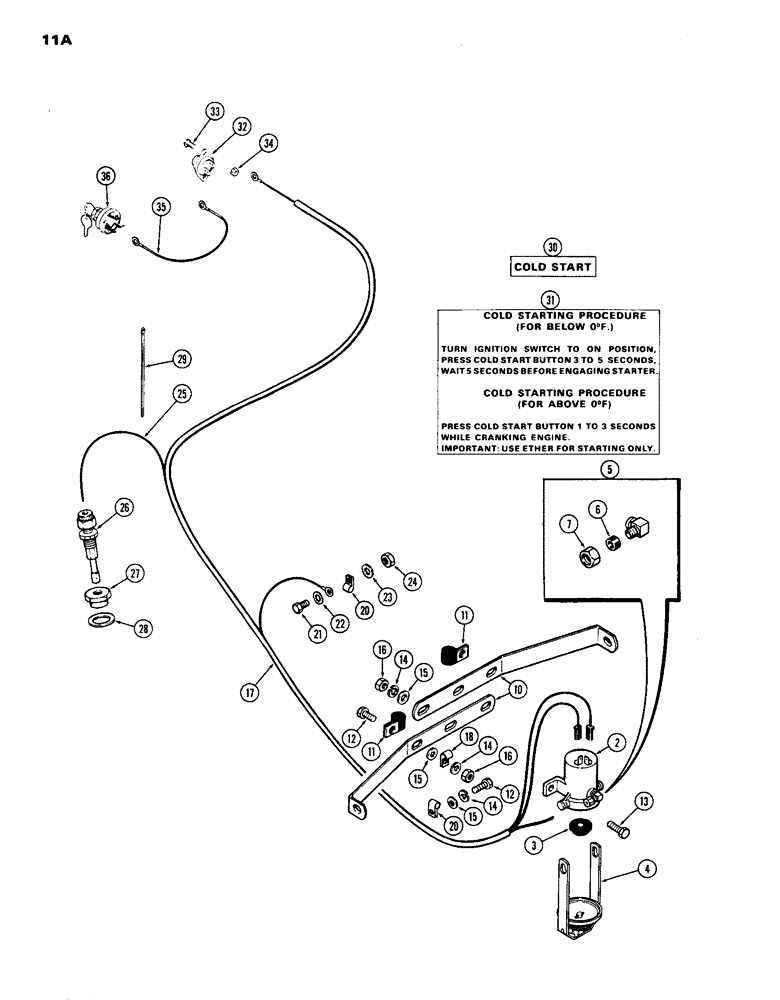

Запчасти Case IH 1070 (011A) - ETHER STARTING KIT, (451B) DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
A62440
KIT
ether starting, Includes Ref. 2 - 35
1шт.
2
A62441
SOLENOID
ether injector, w/ fitting, Includes Ref. 3 - 7
1шт.
3
R30786
GASKET
can
1шт.
4
R30785
BAIL
ASSY. solenoid
1шт.
5
222-615
ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp
Check, Solenoid, Incl. Ref 6 & 7 90º, 5/16"-24 x 1/8" NPT, Comp
1шт.
6
222-650
SLEEVE,1/8" Tube, Comp
2шт.
7
222-660
FLANGE NUT,5/16"-24, 45 Degree Fl, Comp
for 1/8" tube 5/16"-24, 45º Fl, Comp
2шт.
10
A62442
BRACKET solenoid mounting
2шт.
11
515-23159
CLAMP,5/8", Insul, 3/8" Bolt
CLIP steering tube to bracket
2шт.
12
113-103
BOLT,Hex, 5/16" - 18 x 1", Gr 5
4шт.
13
113-104
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
2шт.
14
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
6шт.
15
195-103
WASHER,5/16"
3/8 x 7/8 x 3/32"
6шт.
16
9635082
NUT,5/16" - 18, Gr 5
4шт.
17
A62443
HARNESS
wire, Serial Range: solenoid-switch
1шт.
18
A7922
CLIP
harness
1шт.
20
A62209
CLAMP,5/16", Insul, 1/4" Bolt
CLIP harness
2шт.
21
113-3
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
1шт.
22
193-44
LOCK WASHER,Ext-Int Tooth, 1/4"
WASHER shakeproof, 1/4" int./ext
1шт.
23
195-19
WASHER
5/16 x 3/4 x 1/8"
1шт.
24
7770
NUT,Hex, 1/4 - 20, Cl 5
1/4"-20, G5
1шт.
25
A62444
TUBE
, Serial Range: solenoid-injector
1шт.
26
A62446
NOZZLE
INJECTOR nozzle, w/ 1/8" tube fitting
1шт.
27
L10283
PLUG
ADAPTER nozzle to intake manifold
1шт.
28
A20916
MANIFOLD GASKET
WASHER, Serial Range: adapter-manifold
1шт.
29
L11541
CABLE TIE,203.2mm L, Nylon
STRAP tube and harness
7шт.
30
321-1752
DECAL
cold start
1шт.
31
321-1841
DECAL
cold start instructions
1шт.
32
A36948
SWITCH
ether solenoid
1шт.
33
173-257
SCREW,Phil Rnd Hd, #10 - 24 x 1/2"
machine, No. 10 x 1/2" N.C. Phillips hd.
2шт.
34
193-104
NUT brass, no. 10 N.C. hex.
2шт.
35
A62713
ELECTRICAL WIRE
WIRE solenoid switch to start switch
1шт.
36
A59693
SWITCH
starting, not included in kit
1шт.
Выбрано товаров: 33
