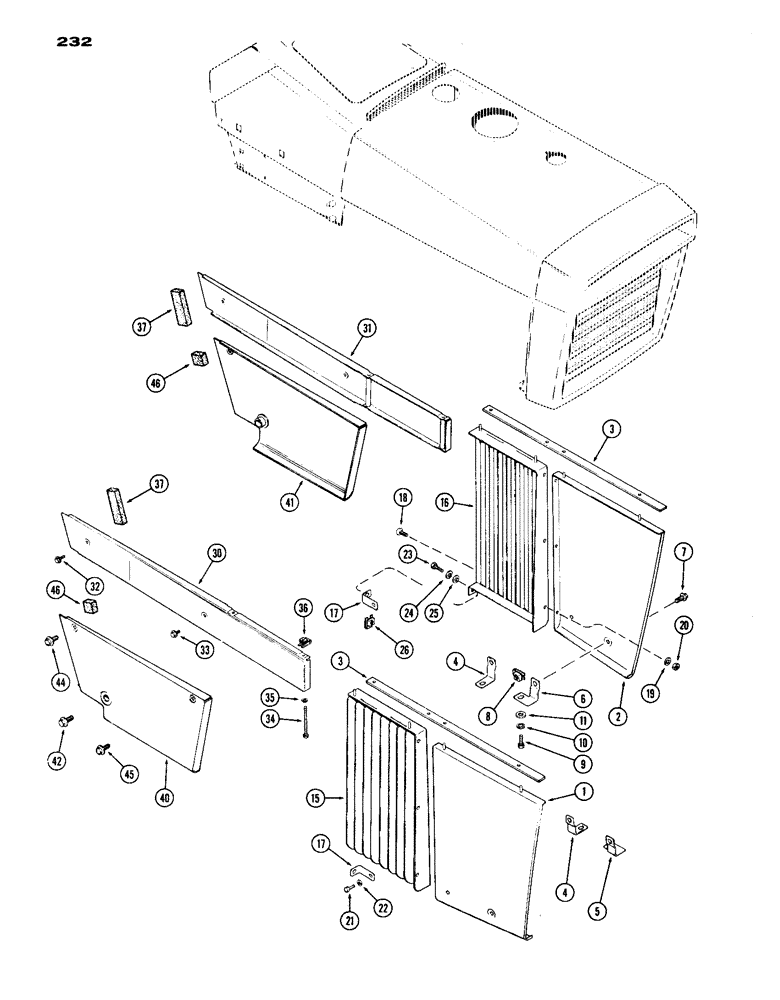

Запчасти Case IH 1070 (232) - SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

A59128

PANEL

ASSY. front side, R.H.

1шт.

2

A59365

PANEL

ASSY. front side, L.H.

1шт.

3

A59239

SPACER

hood and side sheets, to be attached w/ adhesive 345-22

2шт.

4

A59364

BRACKET

R.H. and L.H. side sheet mtg.

2шт.

5

A59278

BRACKET

R.H. side sheet mtg.

1шт.

6

A59279

BRACKET L.H. side sheet mtg.

1шт.

7

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

8

131-616

NUT,Ret, J, 5/16"-18

tinnerman, 5/16"

4шт.

9

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

4шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

95-6

WASHER,3/8"

7/16 x 1 5/64"

4шт.

15

A59440

VENTILATOR

LOUVER ASSY. R.H., w/ 8 slats, 1st used trac. ser. no. 8665648, Order (1) A64922 and (1) A64923

1шт.

15

A59442

VENTILATOR

LOUVER ASSY. R.H., Replaces A59446, w/ 10 slats, used prior to trac. ser. no. 8665648, Order (1) A64922 and (1) A64923

1шт.

16

A59441

GUARD

LOUVER ASSY. L.H., w/ 8 slats, 1st used trac. ser. no. 8665648, Order (1) A64922 and (1) A64923

1шт.

16

A59443

VENTILATOR

LOUVER ASSY. L.H., Replaces A59945, w/ 10 slats, used prior to trac. ser. no. 8665648, Order (1) A64922 and (1) A64923

1шт.

17

A61042

BRACKET louver mtg.

2шт.

18

175-437

SCREW,Phil Truss Hd, 5/16" - 18 x 5/8"

5/16 x 5/8" truss hd.

6шт.

19

95-5

WASHER,3/8" x 7/8" x .083"

lock, 5/16"

6шт.

20

9635082

NUT,5/16" - 18, Gr 5

5/16" N.C. hex.

6шт.

21

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

22

92-5

LOCK WASHER,5/16"

2шт.

23

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

95-6

WASHER,3/8"

7/16 x 1 x 5/64"

2шт.

26

131-616

NUT,Ret, J, 5/16"-18

tinnerman, 5/16"

2шт.

30

A60968

PANEL

ASSY. decal, R.H., Order A65206

1шт.

31

A60969

DISK HARROW

PANEL ASSY. decal, L.H., Order A65213

1шт.

32

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

Decal panel Hex Flg, 5/16"-18 x 1/2", Serr

2шт.

33

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

Decal panel Hex Flg, 5/16"-18 x 1", Serr

2шт.

34

113-20

BOLT,Hex, 1/4" - 20 x 4-3/4", Gr 5

1/4 x 4-3/4" N.C. hex., decal panel

6шт.

35

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Decal panel 1/4"

6шт.

36

131-620

SPRING NUT,J, 1/4" - 20, 0.025" Thk

RETAINER tinnerman, "J" type, decal panel

6шт.

37

A61879

FOAM

decal panel seal, Order A65939

2шт.

40

A60972

PANEL

ASSY. rear side, R.H., Order A65212

1шт.

41

A60973

PANEL

ASSY. rear side, L.H., Order A65231

1шт.

42

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

Rear side panel Hex Flg, 5/16"-18 x 1 1/4", Serr

2шт.

44

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

Rear side panel Hex Flg, 5/16"-18 x 1/2", Serr

2шт.

45

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

Rear side panel Hex Flg, 5/16"-18 x 1", Serr

2шт.

46

A61878

FOAM

rear side panel sealing, to be attached w/ adhesive 345-22

2шт.
