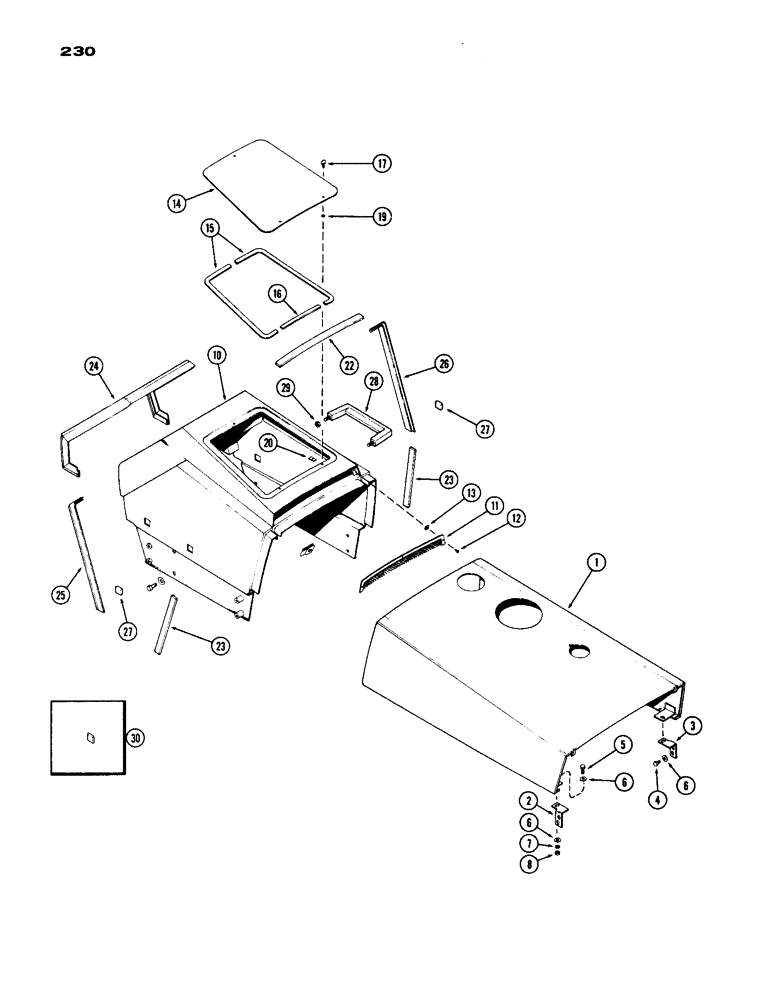

Запчасти Case IH 1070 (230) - HOOD (09) - CHASSIS/ATTACHMENTS

1

A60960

HOOD ASSY. front

1шт.

2

A59240

BRACKET

front hood to grille mtg., R.H., Order A62742

1шт.

3

A59241

BRACKET

front hood to grille mtg., L.H., Order A62743

1шт.

4

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

5/16 x 3/4" N.C. hex.

4шт.

5

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

6

95-5

WASHER,3/8" x 7/8" x .083"

3/8 x 7/8 x 5/64"

8шт.

7

92-5

LOCK WASHER,5/16"

6шт.

8

9635082

NUT,5/16" - 18, Gr 5

5/16" N.C. hex.

2шт.

10

A61640

HOOD

ASSY. rear, Replaces A60965, Order A65199

1шт.

11

A59395

SCREEN

ASSY. rear hood

1шт.

12

182-522

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

no. 6-32 x 1/2" pan hd.

3шт.

13

131-618

NUT

tinnerman

3шт.

14

A59391

COVER

hood access

1шт.

15

A59400

SEAL

hood access cover, outer, to be attached w/ adhesive 345-22

2шт.

16

A59401

SEAL

hood access cover, center, Order A136580, to be attached w/ adhesive 345-22

1шт.

17

A61044

STUD

wing head., rear hood cover

3шт.

19

A61045

RETAINER

stud, rear hood cover

3шт.

20

A61046

CLIP

RECEPTACLE rear hood cover

3шт.

22

A59406

SEAL

rear hood, center, to be attached w/ adhesive 345-22

1шт.

23

A59408

SEAL

rear hood, outer, to be attached w/ adhesive 345-22

2шт.

24

A60939

MOLDING

rear hood and inst. panel, Order A64864, to be attached w/ adhesive 345-21

1шт.

25

A60940

MOLDING

rear hood, lower, R.H., Order A64865, to be attached w/ adhesive 345-21

1шт.

26

A60941

EJECTOR

MOLDING rear hood, lower, L.H., Order A64865, to be attached w/ adhesive 345-21

1шт.

27

A62122

SEAL

rear hood, upper

2шт.

28

A60530

HANDLE

R.H. and L.H.

2шт.

29

230-4216

LOCK NUT,3/8"-16, GA

NUT lock, handles, 3/8" N.C. hex.

4шт.

30

A59366

PLUG

handle hole cover, used w/o hood handle

2шт.
