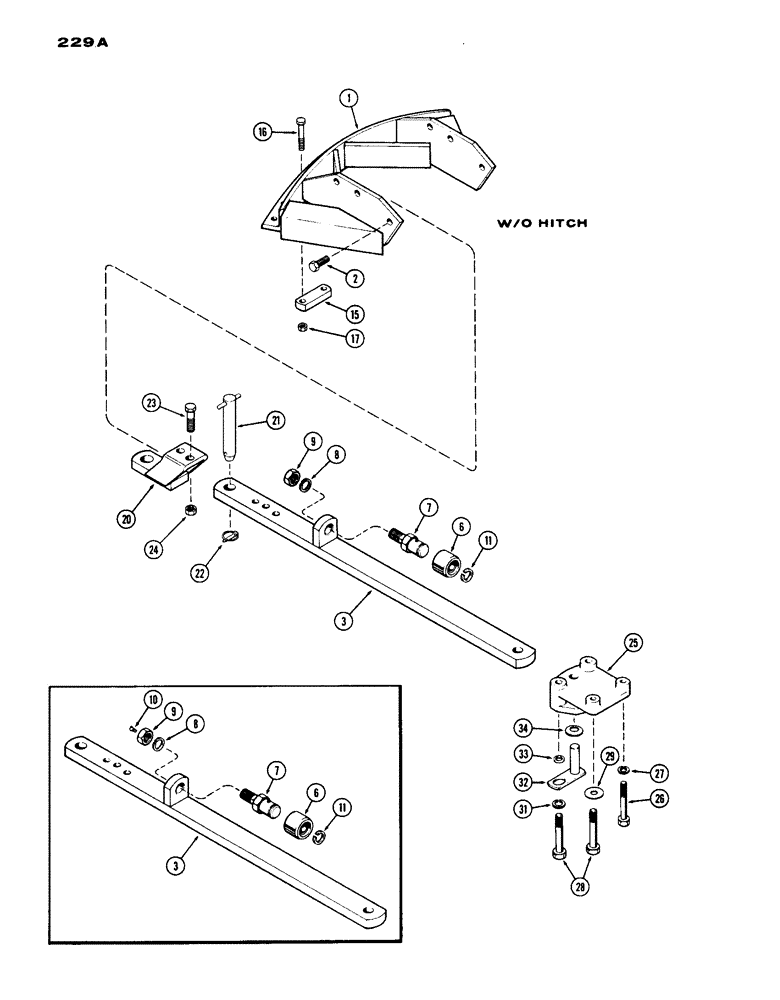

Запчасти Case IH 1070 (229A) - DRAWBAR, WITHOUT HITCH (09) - CHASSIS/ATTACHMENTS

1

A34846

SUPPORT ASSY. wide swing drawbar

1шт.

2

113-746

BOLT, 3/4 x 2" N.C hex

6шт.

3

A60444

DRAWBAR

ASSY. wide swing, Order A65752

1шт.

6

A27010

ROLLER

drawbar, used w/ A32946 bolt

1шт.

7

A32946

BOLT

drawbar roller, drilled

1шт.

8

92-18

LOCK WASHER,1 1/8"

1 1/8"

1шт.

9

129-131

NUT,1 1/8"-12, G5

1-1/8" N.F. hex

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING lube, 1/8" P.T. str., used w/ A32946 bolt

1шт.

11

A27012

RING

snap, drawbar roller bolt

1шт.

15

A58347

STRAP

drawbar clamp

1шт.

16

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

2шт.

17

25-108

NUT,1/2"-13, G5

1/2" N.C. hex.

2шт.

A60408

ATTACHMENT yoke, machinery item, Includes Ref. 20 - 24

1шт.

20

NSS

NOT SOLD SEPARAT

YOKE ASSY. drawbar

1шт.

21

A57998

PIN

ASSY. drawbar, Order A65764, Includes Ref. 22

1шт.

22

A30338

PIN

klik

1шт.

23

113-758

X

BOLT, 3/4 x 3-3/4" N.C. hex

2шт.

24

129-572

NUT,3/4"-10, G8

2шт.

25

A60425

BRACKET

drawbar pivot pin

1шт.

26

113-671

BOLT, 5/8 x 3-1/4" N.C. hex

2шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

28

113-755

BOLT, 3/4 x 5-1/4" N.C. hex

1шт.

29

95-12

WASHER,3/4"

3/16 x 2 x 5/32"

1шт.

31

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

32

A59605

PIN

ASSY. drawbar, Order A65762

1шт.

33

A57929

SPACER

drawbar pivot

1шт.

34

A35270

WASHER

drawbar anti-rattle spring

1шт.
