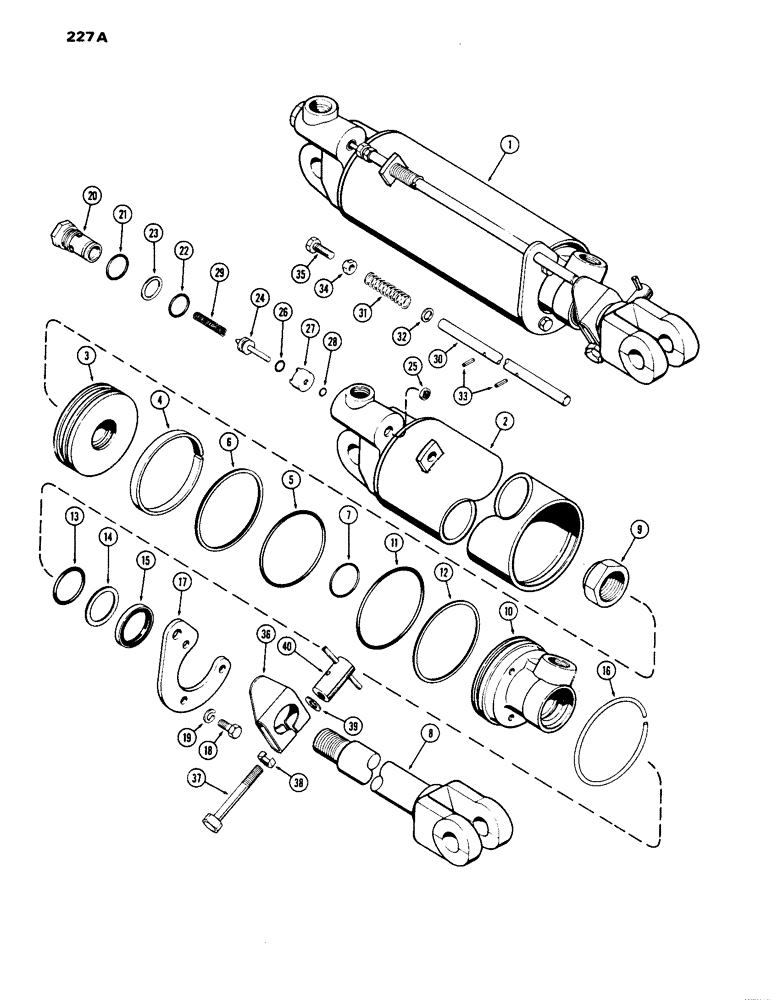

Запчасти Case IH 1070 (227A) - A34922 REMOTE HYDRAULIC CYLINDER, 3-1/4" BORE X 8" STROKE, WITH HYDRAULIC LIMIT STOP (09) - CHASSIS/ATTACHMENTS

1

A34922

CYLINDER

ASSY. hydraulic, Includes Ref. 2 - 40

1шт.

2

A42348

BODY cylinder

1шт.

3

A41177

PISTON cylinder

1шт.

4

A41191

RING

outer, 3-1/4" I.D. x 5/32", teflon

1шт.

Part of cylinder seal kit A41347

1шт.

5

A41185

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

outer, 2-7/8 x 3-1/8 x 1/8"

1шт.

Part of cylinder seal kit A41347

1шт.

6

A41183

RING wear, piston

1шт.

Part of cylinder seal kit A41347

1шт.

7

A41184

O-RING,1.234" ID x 1.512" OD x 0.139"

inner, 1-1/4 x 1-1/2 x 1/8"

1шт.

Part of cylinder seal kit A41347

1шт.

8

A41179

ROD piston

1шт.

9

A41189

LOCK NUT

NUT lock, piston ret., 1" - 14

1шт.

10

A41180

BEARING

cylinder

1шт.

11

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

bearing, outer 3 x 3-1/4 x 1/8"

1шт.

Part of cylinder seal kit A41347

1шт.

12

A41188

RING

back up

1шт.

Part of cylinder seal kit A41347

1шт.

13

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

inner, 1-1/4 x 1-1/2 x 1/8"

1шт.

Part of cylinder seal kit A41347

1шт.

14

T22277

OIL SEAL

RING back up

1шт.

Part of cylinder seal kit A41347

1шт.

15

A41176

X

SEAL oil, bearing, 1-1/4 x 1-1/2 x 1/4"

1шт.

Part of cylinder seal kit A41347

1шт.

16

A41186

RING, LOCKING

RING lock, bearing

1шт.

Part of cylinder seal kit A41347

1шт.

17

A41182

PLATE cylinder end

1шт.

18

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

20

A41351

PLUG cylinder end and valve plunger body

1шт.

21

A41316

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

plug, 7/8 x 1-1/16 x 3/32"

1шт.

Part of cylinder seal kit A41347

1шт.

22

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

plug, 11/16 x 7/8 x 3/32"

1шт.

Part of cylinder seal kit A41347

1шт.

23

A41346

RING

back up

1шт.

Part of cylinder seal kit A41347

1шт.

24

A41430

PLUNGER

ASSY. valve, Order A44489

1шт.

25

A41175

WIPER

valve plunger, 3/16 x 1/2 x 1/8", Order G31932

1шт.

Part of cylinder seal kit A41347

1шт.

26

A41147

X

O-RING plunger, 3/16 x 3/8 x 3/32", Order G31935

1шт.

Part of cylinder seal kit A41347

1шт.

27

A41429

SPACER

valve

1шт.

28

A41160

INSERT

O-RING valve, 23/64 x 9/16 x 3/32"

1шт.

Part of cylinder seal kit A41347

1шт.

29

A41163

SPRING

valve poppet

1шт.

30

A41153

ROD

push

1шт.

31

A41154

SPRING

push rod

1шт.

32

A41155

WASHER

push rod spring seat

1шт.

33

138-71

LOCK PIN,5/32" x 5/8", Slotted

PIN, , Push rod 5/32" x 5/8", Slotted

2шт.

34

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT lock, push rod, 5/16 - 18

1шт.

35

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

36

A41349

STOP

cylinder limit clamp

1шт.

37

114-115

BOLT,Hex, 5/16" - 24 x 2-3/4", Gr 5

1шт.

38

A41352

LOCK WASHER

LOCK stop clamp bolt

1шт.

39

A41353

WASHER

1/2 x 7/8 x 1/16"

1шт.

40

A41615

LOCK NUT

NUT lock, clamp bolt, 5/16" N.F.

1шт.

A41347

SEAL,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

KIT seal, cylinder, Includes Ref. 4 - 7, 11 - 16, 21, 22, 23, 25, 26 and 28

1шт.
