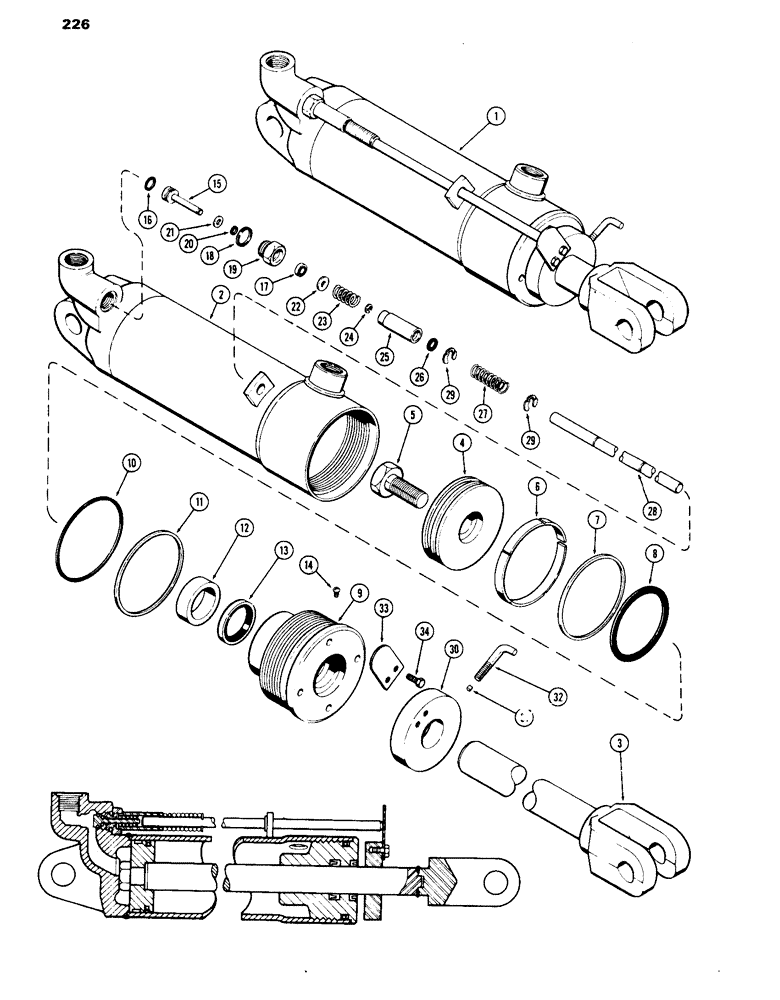

Запчасти Case IH 1070 (226) - G32083 REMOTE HYDRAULIC CYLINDER, 3-1/4" BORE X 8" STROKE, WITH HYDRAULIC LIMIT STOP (09) - CHASSIS/ATTACHMENTS

1

G32083

CYLINDER

ASSY. hydraulic, Replaces A34922, Includes Ref. 2 - 34

1шт.

2

G32084

TUBE,15.22" L

cylinder

1шт.

3

G32086

ROD

piston

1шт.

4

G32093

JACK PISTON

PISTON cylinder

1шт.

5

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

1шт.

6

G32090

RING

wear, piston, nylon

1шт.

Part of cylinder repair kit P/N G32094

1шт.

7

G32091

SEALING RING

RING seal, piston, teflon

1шт.

Part of cylinder repair kit P/N G32094

1шт.

8

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

2-3/4 x 3 x 1/8"

1шт.

Part of cylinder repair kit P/N G32094

1шт.

9

G32426

GLAND

packing, piston rod

1шт.

10

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

3-1/4 x 3-1/2 x 1/8"

1шт.

Part of cylinder repair kit P/N G32094

1шт.

11

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING back up

1шт.

Part of cylinder repair kit P/N G32094

1шт.

12

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

piston rod, 1-1/4 x 1-3/4 x 13/32"

1шт.

Part of cylinder repair kit P/N G32094

1шт.

13

D95141

WIPER SEAL

SCRAPER piston rod, 1-1/4 x 1-3/4 x 3/8"

1шт.

Part of cylinder repair kit P/N G32094

1шт.

14

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW self-tapping, no. 8-32 x 1/4" rd. hd. sltd.

1шт.

15

G31943

PLUNGER

valve

1шт.

16

G32070

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

27/64 x 5/8 x 3/32"

1шт.

Part of cylinder repair kit P/N G32094

1шт.

17

G31932

WIPER SEAL

SEAL wiper, 3/16 x 1/2 x 1/8"

1шт.

Part of cylinder repair kit P/N G32094

1шт.

19

G31933

GLAND

valve assy, Includes Ref. 20 and 21

1шт.

20

G31935

O-RING,0.174" ID x 0.377" OD

11/64 x 3/8 x 7/64"

1шт.

Part of cylinder repair kit P/N G32094

1шт.

21

G31948

WASHER

13/64 x 13/32 x 1/16"

1шт.

22

G31929

WASHER

spring backing, 7/32 x 5/8 x 1/16"

1шт.

23

G31980

SPRING

plunger return, 1" free length

1шт.

24

49485

SNAP RING,#X18, .122" Dia, E-Type

Ring, Retaining, #X18, .122" Dia, E-Type

1шт.

25

G32427

SLEEVE

protector

1шт.

26

A8613

O-RING,0.426" ID x 0.566" OD

7/16 x 9/16 x 1/16"

1шт.

Part of cylinder repair kit P/N G32094

1шт.

27

G31934

SPRING

rod return, 2-5/16" free length

1шт.

28

G32428

ROD

push

1шт.

29

G32429

RING

retaining, "Y" type

2шт.

30

G32425

COLLAR

stop

1шт.

31

G32076

PLUG

locking

1шт.

32

G32077

BOLT

hook

1шт.

33

G32075

PLATE

stop

1шт.

34

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

G32094

KIT

cylinder repair, Includes Ref. 6, 7, 8, 10 - 13, 16, 17, 18, 20 and 26

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 x 21/32 x 3/32"

1шт.

Part of cylinder repair kit P/N G32094

1шт.
