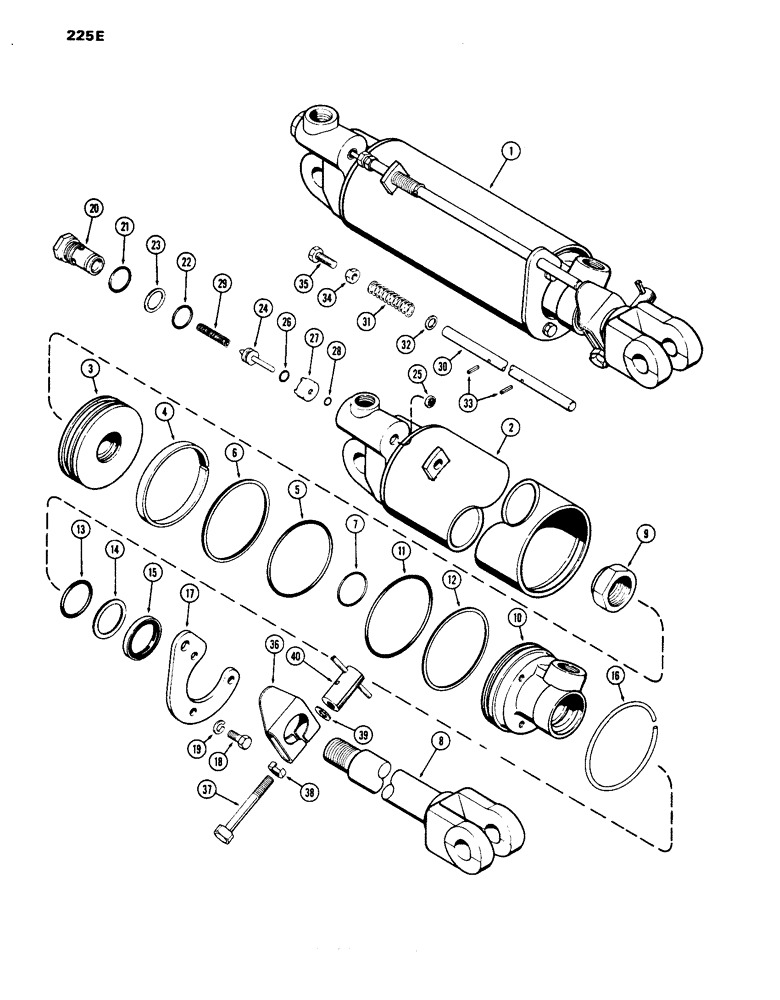

Запчасти Case IH 1070 (225E) - A34923 REMOTE HYDRAULIC CYLINDER, 4" BORE X 8" STROKE WITH HYDRAULIC LIMIT STOP (09) - CHASSIS/ATTACHMENTS

1

A34923

CYLINDER ASSY. hydraulic, Order G33769, Includes Ref. 2 - 40

1шт.

2

A41354

BODY cylinder

1шт.

3

A41357

PISTON cylinder

1шт.

4

A41169

SEAL

RING piston, outer, 4" I.D. x 5/32" teflon, Order G31928

1шт.

Part of cylinder seal kit P/N A41350

1шт.

5

A21301

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

outer, 3-5/8 x 3-7/8 x 1/8"

1шт.

Part of cylinder seal kit P/N A41350

1шт.

6

A41174

RING

wear, piston, Order G31927

1шт.

Part of cylinder seal kit P/N A41350

1шт.

7

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

inner, 1-1/2 x 1-3/4 x 1/8"

1шт.

Part of cylinder seal kit P/N A41350

1шт.

8

A41151

ROD piston

1шт.

9

A41168

LOCK NUT

NUT piston ret., 1-1/8"-12 lock nut, Order 131-1141

1шт.

10

A41148

BEARING

cylinder

1шт.

11

A27348

O-RING,3.734" ID x 4.012" OD x 0.139"

outer, 3-3/4 x 4 x 1/8"

1шт.

Part of cylinder seal kit P/N A41350

1шт.

12

A41165

RING,126.42mm ID x 132.52mm OD x 1.4mm Thk

back up

1шт.

Part of cylinder seal kit P/N A41350

1шт.

13

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

inner, 1-1/2 x 1-7/8 x 3/16"

1шт.

Part of cylinder seal kit P/N A41350

1шт.

14

T31052

RING

back up

1шт.

Part of cylinder seal kit P/N A41350

1шт.

15

A41785

WIPER SEAL

SEAL oil, bearing, 1-1/2 x 2 x 1/4"

1шт.

Part of cylinder seal kit P/N A41350

1шт.

16

41171

RING lock, bearing

1шт.

Part of cylinder seal kit P/N A41350

1шт.

17

A41158

PLATE cylinder end

1шт.

18

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

19

92-5

LOCK WASHER,5/16"

3шт.

20

A41351

PLUG cylinder end and valve plunger body

1шт.

21

A41316

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

7/8 x 1-1/16 x 3/32"

1шт.

22

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 x 7/8 x 3/32"

1шт.

Part of cylinder seal kit P/N A41350

1шт.

23

A41346

RING

back up

1шт.

Part of cylinder seal kit P/N A41350

1шт.

24

A41430

PLUNGER

ASSY. valve, Order A44489

1шт.

25

A41175

WIPER

valve plunger, 3/16 x 1/2 x 1/8", Order G31932

1шт.

Part of cylinder seal kit P/N A41350

1шт.

26

A41147

X

O-RING, 3/16 x 3/8 x 3/32", Order G31935

1шт.

Part of cylinder seal kit P/N A41350

1шт.

27

A41429

SPACER

valve

1шт.

28

A41160

INSERT

O-RING, 23/64 x 9/16 x 3/32"

1шт.

Part of cylinder seal kit P/N A41350

1шт.

29

A41163

SPRING

valve poppet

1шт.

30

A41153

ROD

push

1шт.

31

A41154

SPRING

push rod

1шт.

32

A41155

WASHER

push rod spring seat

1шт.

33

138-71

LOCK PIN,5/32" x 5/8", Slotted

PIN, , Push rod 5/32" x 5/8", Slotted

2шт.

34

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT push rod, 5/16", 18 lock nut

1шт.

35

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

36

A41149

CLAMP

STOP cylinder limit clamp

1шт.

37

114-115

BOLT,Hex, 5/16" - 24 x 2-3/4", Gr 5

1шт.

38

A41352

LOCK WASHER

LOCK stop clamp bolt

1шт.

39

A41353

WASHER

1/2 x 7/8 x 1/16"

1шт.

40

A41615

LOCK NUT

NUT lock, clamp bolt, 5/16" N.F.

1шт.

A41350

SEAL

KIT seal, cylinder, Includes Ref. 4 - 7, 11 - 16, 22, 23, 25, 26 and 28

1шт.
