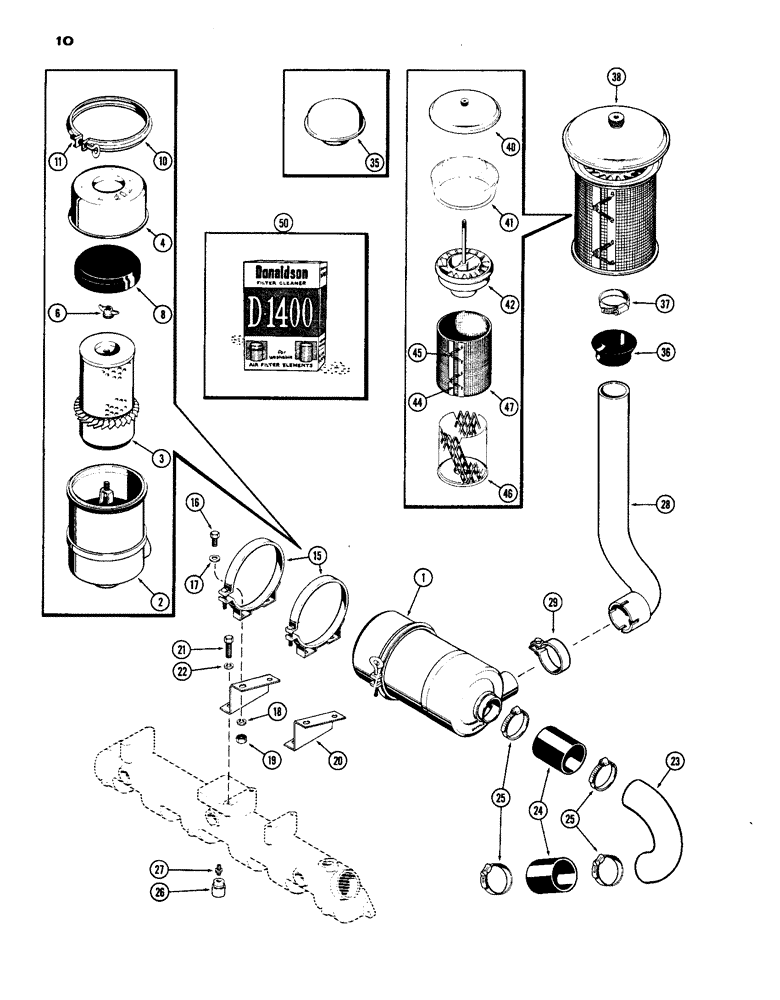

Запчасти Case IH 1070 (010) - AIR CLEANER, (451B) DIESEL ENGINE (02) - ENGINE

1

A59586

CLEANER ASSY. air, Includes Ref. 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSY. cleaner

1шт.

3

A42226

ELEMENT

ASSY. cleaner

1шт.

4

A40951

CUP

dust, Replaces D37980

1шт.

6

F91761

WING NUT

AND WASHER ASSY.

1шт.

8

D37979

BAFFLE

rubber

1шт.

10

R15731

CLAMP

ASSY. cleaner

1шт.

11

25-224

SQUARE NUT,Sq, 1/4"-20

1/4" N.C. hex.

1шт.

15

A16485

CLAMP

BANDS air cleaner mounting

2шт.

16

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

17

195-20

WASHER

5/16 x 7/8 x 1/16"

4шт.

18

92-5

LOCK WASHER,5/16"

4шт.

19

9635082

NUT,5/16" - 18, Gr 5

5/16" N.C. hex.

4шт.

20

A59209

BRACKET

air cleaner mounting

2шт.

21

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

A61106

TUBE

air cleaner to intake manifold

1шт.

24

A59581

HOSE

air intake tube

2шт.

25

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP hose, 2-5/16" to 3-1/4"

4шт.

26

A62574

INDICATOR

air restriction

1шт.

27

D36264

FITTING

FILTER safety

1шт.

28

A59582

TUBE

air cleaner intake

1шт.

29

A62125

CLAMP

air cleaner intake tube

1шт.

35

A61277

CAP

air stack, Replaces A10872

1шт.

36

A59584

GROMMET

air cleaner intake tube

1шт.

37

214-42

CLAMP

air cleaner tube grommet

1шт.

38

A61274

AIR PRE-CLEANER ASSY

PRE-CLEANER ASSY., Replaces A59585, Includes Ref. 40 - 47

1шт.

A42466

CLEANER

COLLECTOR pre-cleaner, Replaces A42280, Includes Ref. 40, 41 and 42

1шт.

40

A42465

COVER

pre-cleaner, Replaces A42281

1шт.

41

A42467

HOUSING

BODY pre-cleaner, plastic, Replaces A42283

1шт.

42

NSS

NOT SOLD SEPARAT

SLEEVE collector

1шт.

A42284

SCREEN

PRE-SCREENER, Includes Ref. 44 - 47

1шт.

44

A22780

SPRING

screen retaining

4шт.

45

A22781

CLIP

retaining spring

2шт.

46

NSS

NOT SOLD SEPARAT

BODY pre-screener

1шт.

47

A42286

SCREEN

pre-screener

1шт.

50

A40910

CLEANER

DETERGENT air cleaner element

1шт.
