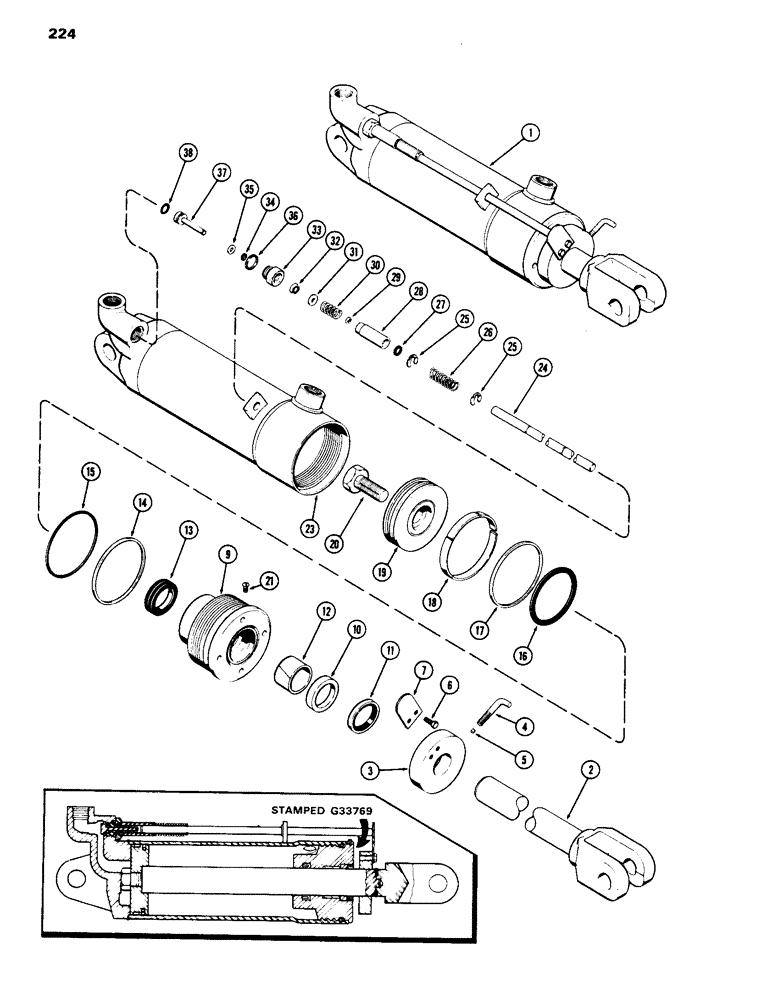

Запчасти Case IH 1070 (224) - G33769 REMOTE HYDRAULIC CYLINDER, 4" BORE X 8" STROKE, GLAND WITH CENTER BEARING (09) - CHASSIS/ATTACHMENTS

1

G33769

CYLINDER

ASSY. hydraulic, stamped G33769 on gland, Includes Ref. 1 - 38

1шт.

2

G33772

ROD

piston

1шт.

3

G32074

COLLAR

stop, Order (1) G34977 bolt, (1) G34979 plug and (1) G34980 collar

1шт.

4

G32077

BOLT

hook

1шт.

5

G32076

PLUG

locking

1шт.

6

187-1515

SELF-TAP SCREW,1/4" - 20 x 3/4"

SCREW, 1/4"-20 x 3/4" hex. hd. self-tapping

2шт.

7

G32075

PLATE

stop

1шт.

G34773

GLAND

ASSY., hand stamped for identification, Includes Ref. 9 - 15

1шт.

9

NSS

NOT SOLD SEPARAT

GLAND

1шт.

10

NSS

NOT SOLD SEPARAT

RING center bearing

1шт.

11

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston rod, outer, 1-1/2 x 2 x 5/16"

1шт.

Part of cylinder repair seal kit P/N G31946

1шт.

12

G34302

BEARING

center

1шт.

13

D36969

CUP

SEAL piston rod, 1-1/2 x 2 x 7/16"

1шт.

Part of cylinder repair seal kit P/N G31946

1шт.

14

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland, O-Ring

1шт.

Part of cylinder repair seal kit P/N G31946

1шт.

15

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

4 x 4-1/4 x 1/8"

1шт.

Part of cylinder repair seal kit P/N G31946

1шт.

16

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

3-1/2" x 3-3/4 x 1/8"

1шт.

Part of cylinder repair seal kit P/N G31946

1шт.

17

G31928

RING

piston seal, teflon

1шт.

Part of cylinder repair seal kit P/N G31946

1шт.

18

G31927

RING

wear, piston, nylon

1шт.

Part of cylinder repair seal kit P/N G31946

1шт.

19

G33774

PISTON

cylinder

1шт.

20

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

21

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW self-tapping, no. 8-32 x 1/4" rd. hd. sltd.

1шт.

23

G31942

HYD TUBE,15.15" L

TUBE cylinder

1шт.

24

G32428

ROD

push

1шт.

25

G32429

RING

retaining

2шт.

26

G31934

SPRING

rod return, 2-5/16" long

1шт.

27

A8613

O-RING,0.426" ID x 0.566" OD

7/16 x 9/16 x 1/16"

1шт.

Part of cylinder repair seal kit P/N G31946

1шт.

28

G32427

SLEEVE

protector

1шт.

29

49485

SNAP RING,#X18, .122" Dia, E-Type

Ring, Retaining, #X18, .122" Dia, E-Type

1шт.

30

G31980

SPRING

plunger return, 1" long

1шт.

31

G31929

WASHER

spring locking, 7/32 x 5/8 x 1/16"

1шт.

32

G31932

WIPER SEAL

SEAL wiper, 3/16 x 1/2 x 1/8"

1шт.

33

G31933

GLAND

ASSY. valve, Includes Ref. 34 and 35

1шт.

34

G31935

O-RING,0.174" ID x 0.377" OD

11/64 x 3/8 x 7/64"

1шт.

Part of cylinder repair seal kit P/N G31946

1шт.

35

G31948

WASHER

13/64 x 13/32 x 1/16"

1шт.

37

G31943

PLUNGER

valve

1шт.

38

G32070

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

27/64 x 5/8 x 3/32"

1шт.

Part of cylinder repair seal kit P/N G31946

1шт.

G31946

KIT

seal, cylinder repair, Includes Ref. 11, 13 - 18, 27, 32, 34, 36 and 38

1шт.

36

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 x 21/32 x 3/32"

1шт.

Part of cylinder repair seal kit P/N G31946

1шт.
