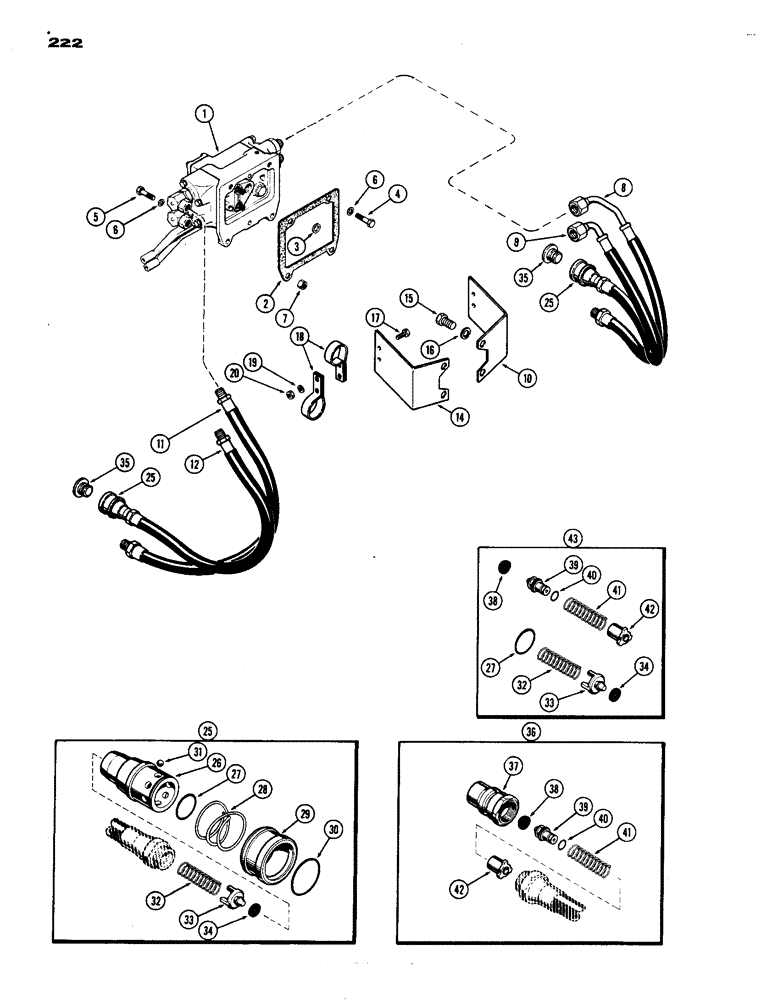

Запчасти Case IH 1070 (222) - BREAK-AWAY COUPLINGS & LINES (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

VALVE ASSY. dual remote, See Figures 204 and 206

1шт.

2

A32349

GASKET

auxiliary valve

1шт.

3

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

auxiliary valve

1шт.

4

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

5

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

6

92-8

LOCK WASHER,1/2"

4шт.

7

25-108

NUT,1/2"-13, G5

1/2" N.C. hex

2шт.

8

A32999

HOSE

hyd. coupling, lower, L.H., 24-7/16" long

1шт.

9

A33003

HOSE

hyd. coupling, upper, L.H., 18-3/16" long

1шт.

10

A57661

BRACKET mounting, break away coupling, L.H.

1шт.

11

A32998

HYDRAULIC HOSE,15.88mm ID x 787.4mm L, SAE 100R1

HOSE hyd. coupling, upper, R.H., 31-5/8" long

1шт.

12

A60395

HOSE,12.7mm ID x 726.95mm L

hyd. coupling, lower, R.H., 28-5/8" long

1шт.

14

A57660

BRACKET

mounting, break away coupling, R.H.

1шт.

15

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

Used w/o hitch Hex, 5/8"-11 x 1 1/4", G5, Full Thd

4шт.

16

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used w/o hitch 5/8"

4шт.

17

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

18

A57662

CLAMP

break away coupling

4шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

20

25-104

NUT,1/4"-20, G5

4шт.

25

A28542

COUPLING, QUICK, FEM

COUPLING ASSY. break away, female half, Includes Ref. 26 - 34

4шт.

26

A27349

BODY

female section

1шт.

27

A34848

O-RING

7/8 x 1-1/8 x 1/8"

1шт.

Part of break away coupling repair kit P/N A40459

1шт.

28

A27354

SPRING

sleeve tension

1шт.

29

A27353

SLEEVE

SLEEVE male coupling lock and release

1шт.

30

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

RING snap, sleeve retaining

1шт.

31

211-7

BALL,1/4" Dia

male coupling swivel, grade A 1/4" Dia

8шт.

32

A11324

SPRING

piston pressure

1шт.

Part of break away coupling repair kit P/N A40459

1шт.

33

A26215

PISTON

coupling socket

1шт.

Part of break away coupling repair kit P/N A40459

1шт.

34

A33964

SEAL

piston

1шт.

Part of break away coupling repair kit P/N A40459

1шт.

35

A22768

PLUG

dust, female coupling

4шт.

36

A28541

COUPLING, BREAK AWAY

COUPLING ASSY. hyd. break away, male half, Includes Ref. 37 - 42

1шт.

37

A27356

PIPE FITTING

BODY male section

1шт.

38

A33964

SEAL

piston

1шт.

Part of break away coupling repair kit P/N A40459

1шт.

39

A27508

PISTON

coupling

1шт.

Part of break away coupling repair kit P/N A40459

1шт.

40

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 x 3/8 x 1/16"

1шт.

Part of break away coupling repair kit P/N A40459

1шт.

41

A27351

SPRING

piston

1шт.

Part of break away coupling repair kit P/N A40459

1шт.

42

A9634

SLEEVE

piston

1шт.

Part of break away coupling repair kit P/N A40459

1шт.

43

A40459

KIT

repair, break away coupling, Includes Ref. 27, 32, 33, 34 and 38 - 42

1шт.
