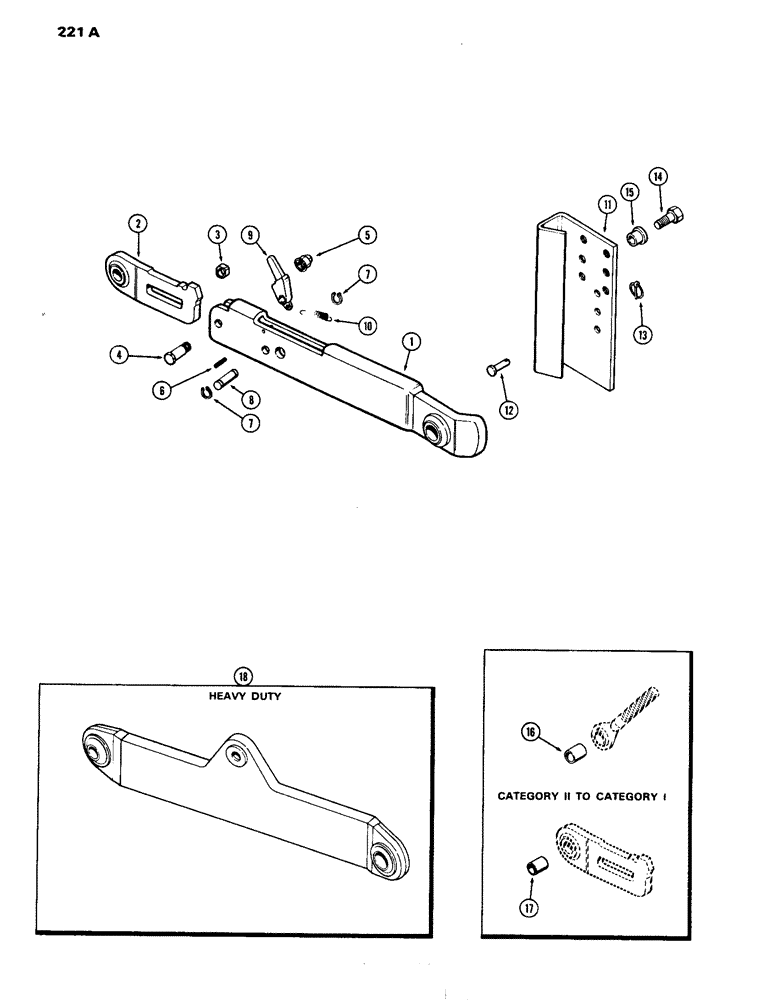

Запчасти Case IH 1070 (221A) - THREE POINT HITCH, DRAFT ARMS (09) - CHASSIS/ATTACHMENTS

A61010

ARM ASSY. draft, R.H., standard, not illustrated

1шт.

A61011

ARM ASSY. draft, L.H., standard, not illustrated, Includes Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

ARM draft, R.H., Order A61010

1шт.

1

NSS

NOT SOLD SEPARAT

ARM draft, L.H., Order A61011

1шт.

2

A61020

LINK

folding, R.H.

1шт.

2

A61021

LINK ASSY. folding, L.H.

1шт.

3

A61026

BLOCK

folding link slide

1шт.

4

A61111

BOLT

shoulder, 3/4 x 2-1/2" N.C., Replaces A61027

1шт.

5

131-657

LOCK NUT,3/4"-10, GB

NUT, 3/4" N.C. hex., crown lock

1шт.

6

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, , Folding link stop 3/16" x 1 1/2", Slotted

1шт.

7

A33531

SNAP RING,#75, Ext

Ring, Snap, , pivot pin retainer #75, Ext

2шт.

8

A60259

PIN

folding link latch pivot

1шт.

9

A61024

LATCH

folding link

1шт.

10

A61025

SPRING

folding link latch

1шт.

11

A61700

STOP

draft arm sway, R.H., Replaces A60598

1шт.

11

A61701

STOP

draft arm sway, L.H., Replaces A60599

1шт.

12

A60603

PIN

mtg., draft arm sway stop

2шт.

13

A33497

LINCH PIN,4.76mm OD Pin

PIN ASSY. klick

2шт.

14

13-744

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

3/4 x 1-3/4" N.C. hex

2шт.

15

A60597

SPACER

draft arm sway stop pivot

2шт.

16

A33499

ADAPTER

upper hitch pin, category II to category I

1шт.

17

A33498

ADAPTER

lower hitch pin, category II to category I

2шт.

18

A62378

ARM

draft, R.H., H.D., Replaces A61920 and A60980

1шт.

18

A62379

ARM

draft, L.H., H.D., Replaces A61921 and A60981

1шт.
