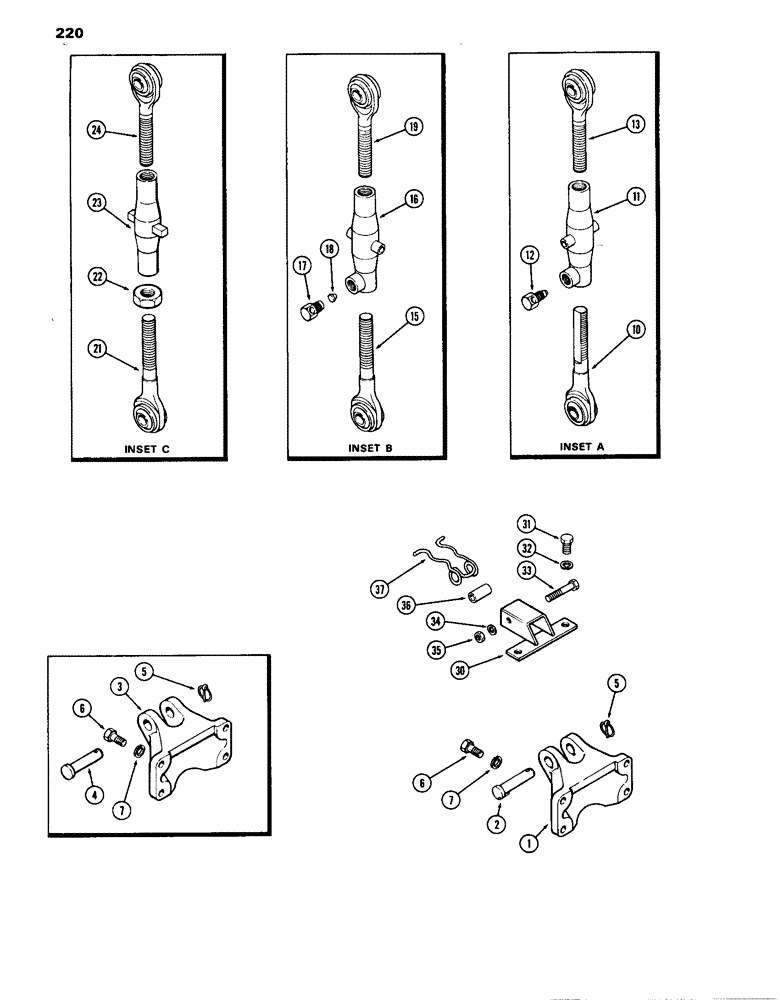

Запчасти Case IH 1070 (220) - THREE POINT HITCH, UPPER LIFT LINK (09) - CHASSIS/ATTACHMENTS

1

A66496

BRACKET

upper link mounting, 1st used trac. ser. no. 8742445

1шт.

2

A66497

PIN

rear link mast, 1st used trac. ser. no. 8742445

1шт.

3

A60667

BRACKET

mounting, upper link, Order A66496, Used prior to trac. ser. no. 8742445

1шт.

4

A33432

PIN

rear link mast, Used prior to trac. ser. no. 8742445

1шт.

5

A33509

PIN,11.18mm OD

ASSY. klick, one shipped loose in tool box

2шт.

6

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

10

A62289

SCREW,1 1/4" - 12 x 5.60"

upper link, rear, implement end, See Inset A

1шт.

11

A62287

TURNBUCKLE

upper lift link, See Inset A

1шт.

12

A62285

SCREW,Hex, 1" - 12 x 1-1/2"

yoke locking, See Inset A

1шт.

13

A34196

LIFT LINK END ASSY,1 1/4" - 12 x 6 1/2"

upper link, front, tractor end, See Inset A

1шт.

15

A34198

LIFT LINK END ASSY,1 1/4" - 12 x 6 1/2"

upper link, rear, implement end, See Inset B

1шт.

16

A61798

TURNBUCKLE upper lift link, See Inset B, Order A62287

1шт.

17

A61478

SCREW,1"-12 x 1.39"

yoke locking, See Inset B, Order A62285

1шт.

18

A61477

BUTTON

link locking, See Inset B, Order A62285

1шт.

19

A34196

LIFT LINK END ASSY,1 1/4" - 12 x 6 1/2"

upper link, front, tractor end, See Inset B

1шт.

21

A34198

LIFT LINK END ASSY,1 1/4" - 12 x 6 1/2"

upper link, rear, Implement end, See Inset C, mechanical shift

1шт.

22

25-1520

NUT

1-1/4" N.F. hex., jam, See Inset C, mechanical shift

1шт.

23

A57498

TURNBUCKLE

lift link, upper, See Inset C, Order A62386, mechanical shift

1шт.

24

A34196

LIFT LINK END ASSY,1 1/4" - 12 x 6 1/2"

upper link, front, tractor end, See Inset C, mechanical shift

1шт.

30

A60664

BRACKET

turnbuckle transport clip, mechanical shift

1шт.

31

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

Mechanical shift Hex, 5/8"-11 x 1 1/4", G5, Full Thd

2шт.

32

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Mechanical shift 5/8"

2шт.

33

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2 x 3" N.C. hex, mechanical shift

1шт.

34

92-8

LOCK WASHER,1/2"

mechanical shift 1/2"

1шт.

35

25-108

NUT,1/2"-13, G5

1/2" N.C. hex, mechanical shift

1шт.

36

A60246

SPACER

turnbuckle transport clip bracket, mechanical shift

1шт.

37

A61684

CLIP

retaining, mast, Replaces A34242, mechanical shift

1шт.
