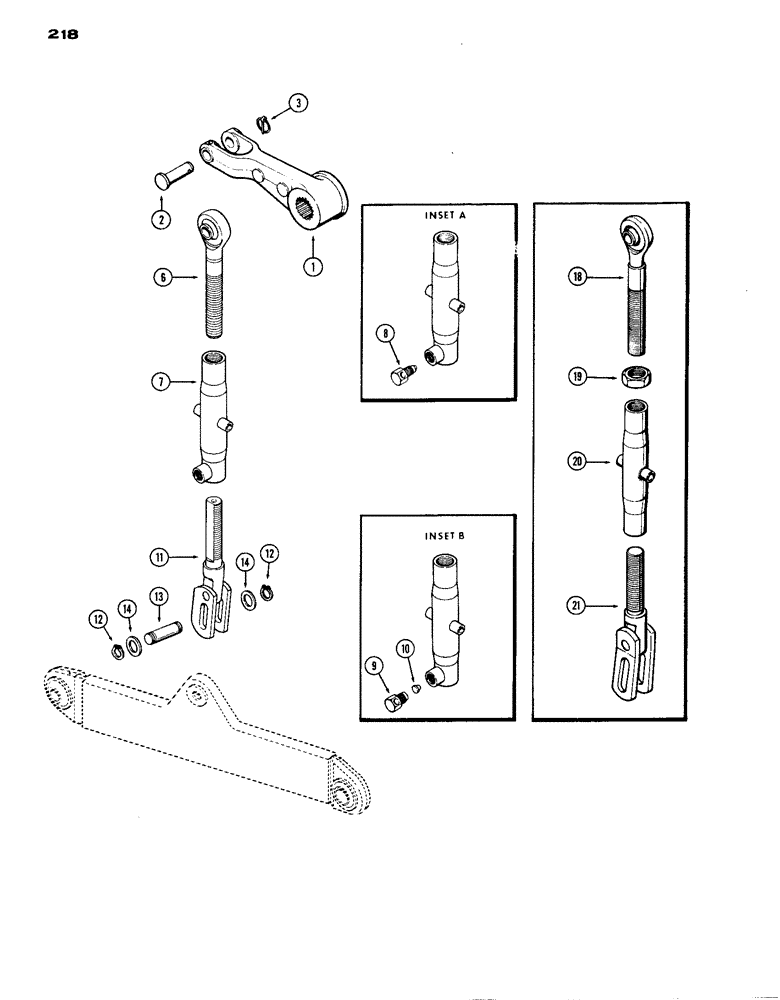

Запчасти Case IH 1070 (218) - THREE POINT HITCH, LIFT LINKS, HEAVY DUTY (09) - CHASSIS/ATTACHMENTS

1

A57494

ARM

rockshaft, lift links, R.H. and L.H.

2шт.

2

A62243

PIN

draft arm float lock-out, Replaces A23426

2шт.

3

A30338

PIN

klik, draft arm float lock-out

2шт.

6

A61470

LINK upper lift

1шт.

7

A61795

TURNBUCKLE lift link

1шт.

8

A62285

SCREW,Hex, 1" - 12 x 1-1/2"

yoke locking, See Inset A

1шт.

9

A61478

SCREW,1"-12 x 1.39"

yoke locking, See Inset B, Order A62285

1шт.

10

A61477

BUTTON

link locking, used w/ A61478 screw, See Inset B, Order A62285

1шт.

11

A61474

LINK lower lift

1шт.

12

A34428

SNAP RING,#98, Ext

Ring, Snap, , draft arm lift link pin #98, Ext

4шт.

13

A60979

PIN

draft arm lift link

2шт.

14

495-21106

WASHER,1"

2-1/2 x 1-1/16 x 11/64", Replaces 95-19

4шт.

18

A60992

LINK upper lift, used some early models

1шт.

19

25-1524

JAM NUT,Jam, 1 1/2"-12, G5

1-1/2" N.F. hex. jam, used some early models

1шт.

20

A61791

TURNBUCKLE lift link, Replaces A60991, Includes Ref. 21, used some early models

1шт.

21

A61474

LINK lower lift, Replaces A60993, used some early models

1шт.
