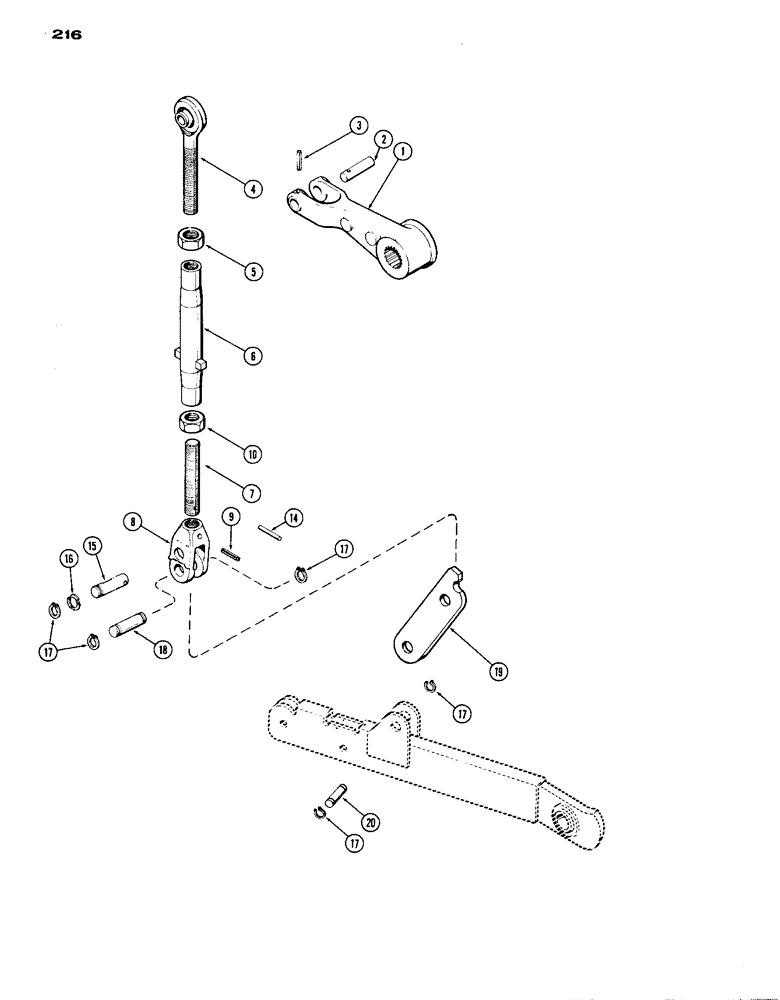

Запчасти Case IH 1070 (216) - THREE POINT HITCH, LIFT LINKS, STANDARD (09) - CHASSIS/ATTACHMENTS

1

A57494

ARM

rockshaft, lift links, R.H. and L.H.

2шт.

2

A32268

PIN

lift arm to link, upper

2шт.

3

135-361

GROOVED PIN,1/4" x 2", Type F

PIN groove, 1/4 x 2", type 3

2шт.

4

A60262

LINK

ASSY. lift, upper

2шт.

5

129-372

NUT,Jam, 1 1/4"-12, G5, LH

1-1/4" N.F. hex., jam, L.H.

2шт.

6

A60265

SHAFT

TURNBUCKLE lift link

2шт.

7

A57503

LINK

lift, lower, Order A64456

1шт.

8

A57504

YOKE lower lift link

1шт.

9

138-159

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

1шт.

10

25-1520

NUT

1-1/4" N.F. hex., jam, R.H. thread

2шт.

14

138-163

LOCK PIN,5/16" x 2 1/2", Slotted

PIN, 5/16" x 2 1/2", Slotted

2шт.

15

A34595

PIN

lock, lift link

2шт.

16

A34431

WASHER spring, float lock pin

2шт.

17

A34428

SNAP RING,#98, Ext

Ring, Snap, , link pins #98, Ext

10шт.

18

A34429

PIN

lift link, 2-3/4" long

2шт.

19

A34426

LINK float, draft arm

2шт.

20

A60261

PIN

lower, lift link

2шт.
