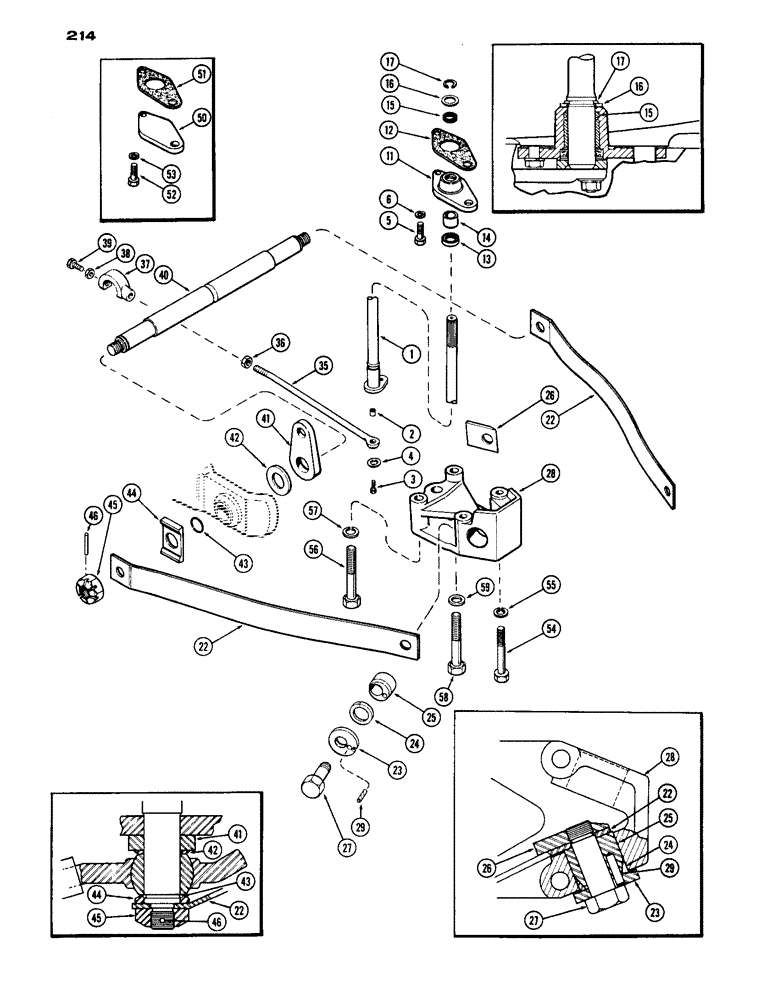

Запчасти Case IH 1070 (214) - D.O.M. LOWER SENSING LINKAGE (09) - CHASSIS/ATTACHMENTS

1

A34834

SHAFT

draft signal

1шт.

2

A34836

SPACER

draft signal arm, 5/16 x 1/2 x 15/32"

1шт.

3

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

4

95-5

WASHER,3/8" x 7/8" x .083"

3/8 x 7/8 x 5/64"

1шт.

5

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

6

92-6

LOCK WASHER,3/8"

1шт.

11

A32203

BUSHING

SUPPORT draft signal shaft

1шт.

12

A32210

GASKET

draft signal shaft support

1шт.

13

A23903

OIL SEAL

oil, draft signal shaft support, 1 x 1-1/2 x 1/4"

1шт.

14

A31082

BUSHING

BEARING draft signal shaft support, 1 x 1-1/4 x 1"

1шт.

15

A9394

RING

quad, draft signal shaft support, 1 x 1-1/4 x 9/64"

1шт.

16

B18275

WASHER

1-1/32 x 1-1/2 x 12 ga.

1шт.

17

A33315

RING

snap, retaining, draft signal shaft

1шт.

22

A57581

SPRING

D.O.M. wishbone, for satisfactory operation it is recommended that new springs be installed in pairs

2шт.

23

A57585

WASHER

clamp, wishbone adjusting cam

2шт.

24

A57584

RING

D.O.M. wishbone cam adjusting

2шт.

25

A57582

CLAMP

CAM D.O.M. wishbone adjusting

2шт.

26

A57583

CLAMP

D.O.M. wishbone adjusting

2шт.

27

A57943

STEP BOLT

BOLT wishbone spring cam

2шт.

28

A59603

BRACKET

drawbar pivot pin

1шт.

29

138-2042

PIN,5/16" x 1 1/4", Coiled

2шт.

35

A33405

LINK

draft signal control

1шт.

36

25-158

JAM NUT,Jam, 1/2"-20, G5

1/2" N.F. hex., jam

1шт.

37

A33006

LOCK

draft signal control link

1шт.

38

25-146

JAM NUT,Jam, 3/8"-16, G5

3/8" N.C. hex., jam

1шт.

39

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

40

A57587

BAR

cross, D.O.M. wishbone

1шт.

41

A32953

LINK

support, D.O.M. wishbone cross bar

2шт.

42

A62435

WASHER

inner, draft arm pivot, Replaces A34921

2шт.

43

A57588

RING

snap, wishbone cross bar

2шт.

44

A57589

PLATE

wishbone rear spacer

2шт.

45

A33404

NUT

retaining, D.O.M. wishbone

2шт.

46

138-2014

PIN,3/16" x 1 7/8", Coiled

nut retainer 3/16" x 1 7/8", Coiled

2шт.

50

A32387

COVER draft signal shaft, used w/o hitch

1шт.

51

A32210

GASKET

draft signal shaft cover

1шт.

52

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

53

92-6

LOCK WASHER,3/8"

1шт.

54

13-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

5/8 x 5" N.C. hex

2шт.

55

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

56

13-1284

CAPSCREW,Hex, 3/4" - 10 x 5 1/4", Gr 5

BOLT, 3/4 x 5-1/4" N.C. hex

1шт.

57

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

58

13-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

3/4 x 5-1/2" N.C. hex

1шт.

59

95-12

WASHER,3/4"

13/16 x 2 x 5/32"

1шт.
