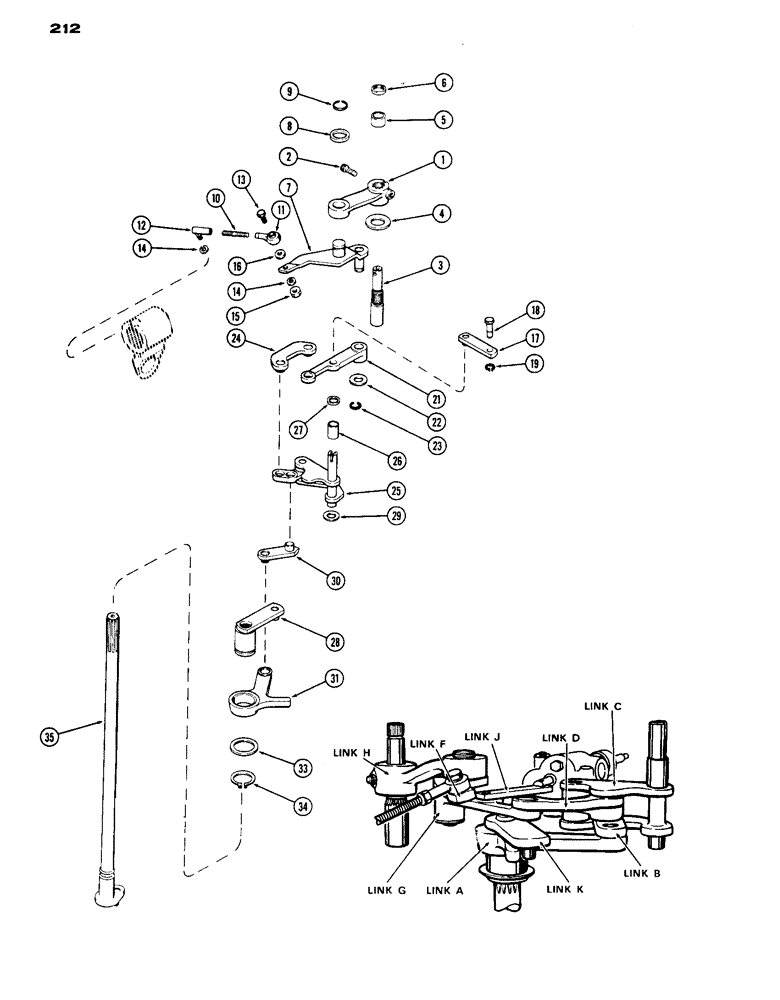

Запчасти Case IH 1070 (212) - D.O.M. UPPER SENSING LINKAGE (09) - CHASSIS/ATTACHMENTS

1

A32320

LEVER

draft control, link "H"

1шт.

2

166-27

SCREW, 5/16 x 1-1/4" N.C. Ferry hd. cap, link "H"

1шт.

3

A59599

SHAFT manual, draft control

1шт.

4

A33316

WASHER, 1-1/32 x 1-11/16 x 12 ga.

1шт.

5

A33314

SPACER

manual shaft, 53/64 x 1-3/64 x 9/16"

1шт.

6

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

oil, manual control shaft, 3/4 x 1 x 1/8"

1шт.

7

A57088

LINK

LEVER draft control, link "F"

1шт.

8

F20286

WASHER

link "F", 29/32 x 1-3/8 x 16 ga.

1шт.

9

F62205

RING, SNAP

RING snap, retaining, link "F"

1шт.

10

A32347

ROD

draft control link

1шт.

11

A35134

BEARING

link rod

1шт.

12

A27382

BALL

JOINT ball, draft control link

1шт.

13

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Link "F" Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

14

92-5

LOCK WASHER,5/16"

2шт.

15

25-155

JAM NUT,Jam, 5/16"-24, G5

5/16" N.C. hex., jam

1шт.

16

A32395

WASHER

SPACER ball joint, 25/64 x 9/16 x 16 ga.

1шт.

17

A32331

LINK

LEVER draft control, link "J"

1шт.

18

A32334

PIN

link "J", to draft valve spool

1шт.

19

G46146

SNAP RING,#37, Ext

Ring, Snap, , draft valve spool pin #37, Ext

1шт.

21

A32335

LINK

draft control, link "G", Order A64597

1шт.

22

B18080

WASHER

link "G", 21/32 x 1-1/4 x 16 ga.

1шт.

23

A26828

RING

snap, retaining, link "G"

1шт.

24

A57365

LEVER

draft control, link "D"

1шт.

25

A32310

LINK

draft control, l"C"

1шт.

26

A32914

SPACER

sensitivity hub, 21/32 x 3/4 x 1"

1шт.

27

A32308

OIL SEAL

oil, sensitivity shaft, 5/8 x 7/8 x 1/8"

1шт.

28

A33393

LEVER

draft control, link "K"

1шт.

29

A57090

WASHER

link, "C", 21/32 x 1-1/8 x 23 Ga.

1шт.

30

A57362

LINK

LEVER draft control, link "B"

1шт.

31

A64598

LEVER

draft control, link "A", Replaces A32324

1шт.

33

B18302

WASHER

link "A"

1шт.

34

R13338

SNAP RING,#150, Ext

Ring, Snap, , "K" link #150, Ext

1шт.

35

A34834

SHAFT

draft signal

1шт.
