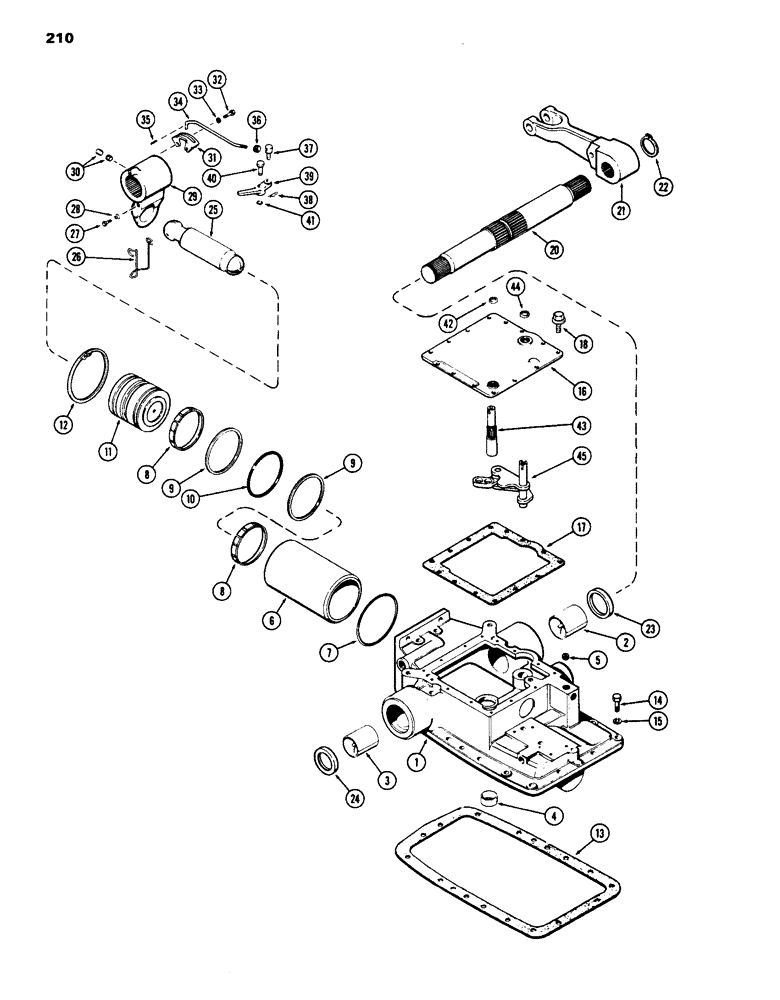

Запчасти Case IH 1070 (210) - ROCKSHAFT AND HOUSING (09) - CHASSIS/ATTACHMENTS

1

A60639

HOUSING

ASSY. rockshaft w/ bushings, Includes Ref. 2 - 5

1шт.

2

A32303

BUSHING,69.75mm ID x 74.73mm OD x 76.2mm L

rockshaft hsg., L.H., 2-3/4 x 2-15/16 x 3"

1шт.

3

A32302

BUSHING,60.27mm ID x 65.2mm OD x 76.2mm L

rockshaft hsg., R.H., 2-3/8 x 2-9/16 x 3"

1шт.

4

A12014

BUSHING

signal shaft, upper, 1-1/2 x 1-3/4 x 3/4"

1шт.

5

221-842

DRAIN PLUG,Hex Soc, 3/8"-18 NPTF

PLUG pipe, 3/8" P.T. hex. socket head

3шт.

6

A34273

LINING

LINER hyd. cylinder piston, 9-47/64" long

1шт.

7

A32295

O-RING,5.725" ID x 6.275" OD x 0.275"

5-3/4 x 6-1/4 x 1/4"

1шт.

8

A32219

RING,126.62mm ID x 133.35mm OD x 15.88mm Thk

wear, piston

2шт.

9

A32293

RING,121.94mm ID x 133.93mm OD x 2.97mm Thk

O-RING backup, piston liner

2шт.

10

A32294

O-RING,4.725" ID x 5.275" OD x 0.275"

4-3/4 x 5-1/4 x 1/4"

1шт.

11

A34270

PISTON

ASSY. rockshaft hyd. cylinder

1шт.

12

A32292

CIRCLIP

RING snap, piston liner retainer

1шт.

13

A32299

GASKET

rockshaft housing

1шт.

14

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

12шт.

14

13-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2шт.

14

15-8112

BOLT

1/2 x 7" N.C. hex

2шт.

15

92-8

LOCK WASHER,1/2"

16шт.

16

A59598

COVER

rockshaft housing

1шт.

17

A33383

GASKET

rockshaft housing cover

1шт.

18

193-538

BOLT, 5/16 x 1" N.C. hex., sems

10шт.

18

193-537

BOLT, 5/16 x 1-1/4" N.C. hex., sems

2шт.

20

A32286

ROCKSHAFT

1шт.

21

A57494

ARM

rockshaft, lift links, R.H. and L.H.

2шт.

22

A32300

SNAP RING,#225, 2.174", Ext

RING snap, retaining, rockshaft lift arm

2шт.

23

A32305

OIL SEAL,69.85mm ID x 92.2mm OD x 11.91mm Thk

oil, rockshaft, L.H., 2-3/4 x 3-5/8 x 15/32"

1шт.

24

A32304

OIL SEAL,60.33mm ID x 85.8mm OD x 11.91mm Thk

oil, rockshaft, R.H., 2-3/8 x 3-3/8 x 15/32"

1шт.

25

A57887

ROD

piston

1шт.

26

A60497

SPRING

rockshaft piston rod

1шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

28

95-6

WASHER,3/8"

7/16 x 1 x 5/64"

2шт.

29

A32287

ARM

rockshaft, piston rod

1шт.

30

84-88

SET SCREW,Hex Soc, 1/2"-20 x 1/2"

SCREW set, 1/2" N.F. cup pt. sckt. hd.

2шт.

31

A33380

BRACKET

draft control valve lock rod

1шт.

32

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

2шт.

33

92-5

LOCK WASHER,5/16"

2шт.

34

A33381

ROD

draft control lever valve lock

1шт.

35

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, , Lock rod 1/8" x 5/8", Slotted

2шт.

36

25-156

JAM NUT,Jam, 3/8"-24, G5

3/8" N.F. hex., jam

1шт.

37

A33379

TRUNNION

lock, Serial Range: rod-lever

1шт.

38

136-109

SPLIT PIN

PIN cotter, internal hair, 0.080 x 1-27/64"

1шт.

39

A34175

LEVER

draft control valve lock

1шт.

40

A32918

PIN

pivot, D.O.M. valve lock lever

1шт.

41

A11538

SNAP RING,#50, Ext

Ring, Snap, , D.O.M. valve lock lever pivot pin #50, Ext

1шт.

42

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

oil, manual control shaft, 3/4 x 1 x 1/8"

1шт.

43

A59599

SHAFT manual, draft control

1шт.

44

A32308

OIL SEAL

oil, sensitivity shaft, 5/8 x 7/8 x 1/8"

1шт.

45

A32310

LINK

draft control, "C"

1шт.
