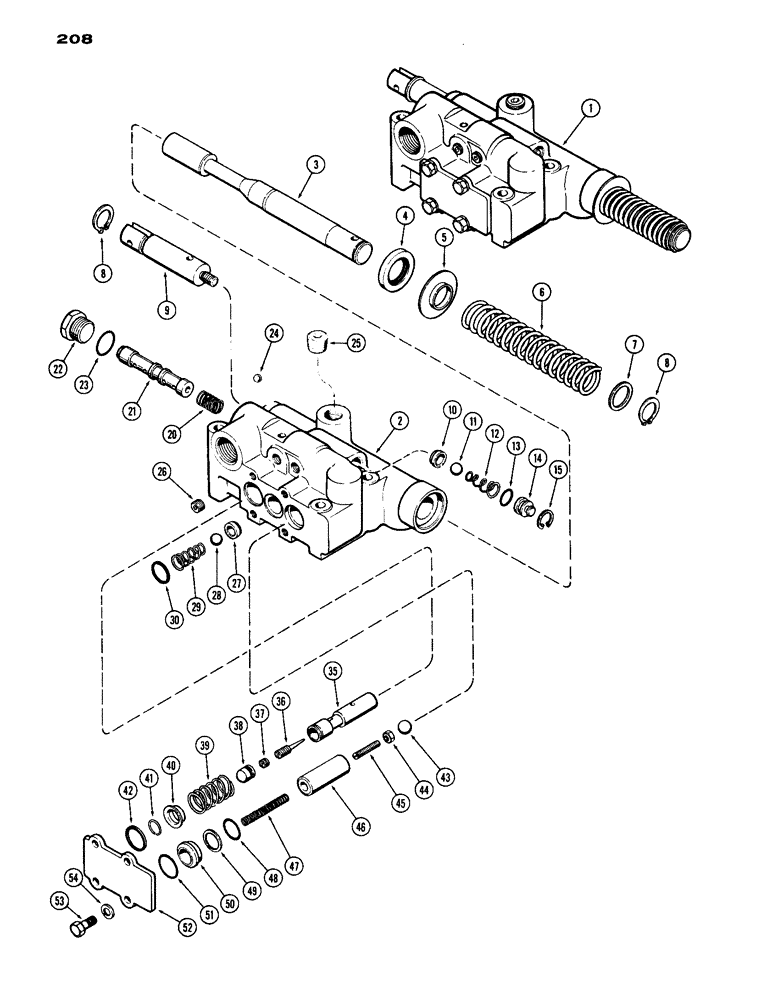

Запчасти Case IH 1070 (208) - A59600 VALVE (08) - HYDRAULICS

1

A59600

VALVE

ASSY. draft control, Includes Ref. 2 - 54

1шт.

2

NSS

NOT SOLD SEPARAT

BODY depth control valve, Order A59600

1шт.

3

A58363

SPOOL

depth control valve

1шт.

4

A11507

OIL SEAL

oil, spool, 7/8 x 1-3/8 x 1/4"

1шт.

Part of draft control valve seal kit P/N A43518

1шт.

5

A58364

SUPPORT

control valve spring

1шт.

6

A58366

SPRING

spool return, 6-23/64" free length, 1-5/32" O.D.

1шт.

7

A58365

WASHER

control valve spring

1шт.

8

A35094

SNAP RING,#81, Ext

Ring, Snap, , spool #81, Ext

2шт.

9

A32981

END valve spool

1шт.

10

L10120

SEAT

ball, check valve

1шт.

11

211-12

BALL,7/16 Dia

check valve, 7/16" dia.

1шт.

12

A35099

SPRING

check valve, 1-1/4" free length, 5/8" O.D.

1шт.

13

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

1/2 x 11/16 x 3/32"

1шт.

Part of draft control valve seal kit P/N A43518

1шт.

14

A35693

PLUG

check valve

1шт.

15

A35694

SNAP RING,0.688", Int, #68

Ring, Snap, , plug 0.688", Int, #68

1шт.

20

A35700

SPRING

flow control, 1-25/64" free length, 9/16" O.D.

1шт.

21

A32984

PISTON

flow control

1шт.

22

A34215

PLUG

ASSY. piston, flow control, Includes Ref. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 x 3/4 x 3/32"

1шт.

Part of draft control valve seal kit P/N A43518

1шт.

24

211-7

BALL,1/4" Dia

steel, relief valve 1/4" Dia

1шт.

25

221-843

PLUG,Hex Soc, 3/8"-18

pipe, valve body, 3/8" hex. sckt. hd.

1шт.

26

221-849

PLUG,Hex Soc, 1/8"-27

pipe, valve body, 1/8" hex. sckt. hd.

2шт.

27

L10120

SEAT

ball, check valve

1шт.

28

211-12

BALL,7/16 Dia

check valve, 7/16" dia.

1шт.

29

A35099

SPRING

check valve, 1-1/4" free length, 5/8" O.D.

1шт.

30

A35547

RING

quad, check valve

1шт.

Part of draft control valve seal kit P/N A43518

1шт.

35

A32982

PISTON

trigger poppet

1шт.

36

A35784

VALVE

needle, trigger poppet

1шт.

37

A35785

SET SCREW,5/16" - 18 x 1/4"

lock, needle valve

1шт.

38

A35097

PLUG

trigger valve cap

1шт.

39

A35691

SPRING

trigger valve, 1-5/8" free length, 7/8" O.D.

1шт.

40

A35689

RETAINER

SEAT pressure spring retainer

1шт.

41

A35690

RING

snap, retaining, seat

1шт.

42

A35548

RING

quad, trigger valve

1шт.

Part of draft control valve seal kit P/N A43518

1шт.

43

211-13

BALL,1/2" Dia

steel, lowering poppet 1/2" Dia

1шт.

44

A35102

NUT

no. 10-32 hex, lock

1шт.

45

A35101

SET SCREW,Hex Skt, #10 - 32 x 1 1/4", Gr 5

set, poppet adjusting

1шт.

46

A35695

PISTON

lowering poppet

1шт.

47

A35103

SPRING

lowering poppet, 2-3/16" free length, 25/64" O.D.

1шт.

48

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32"

1шт.

Part of draft control valve seal kit P/N A43518

1шт.

49

A35698

BACK-UP RING

WASHER o-ring back up

1шт.

50

A35696

SLEEVE

lowering poppet

1шт.

51

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32"

1шт.

Part of draft control valve seal kit P/N A43518

1шт.

52

A35105

COVER

valve

1шт.

53

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

54

92-5

LOCK WASHER,5/16"

4шт.

A43518

KIT

seal, draft control valve, Includes Ref. 4, 13, 23, 30, 42, 48 and 51

1шт.
