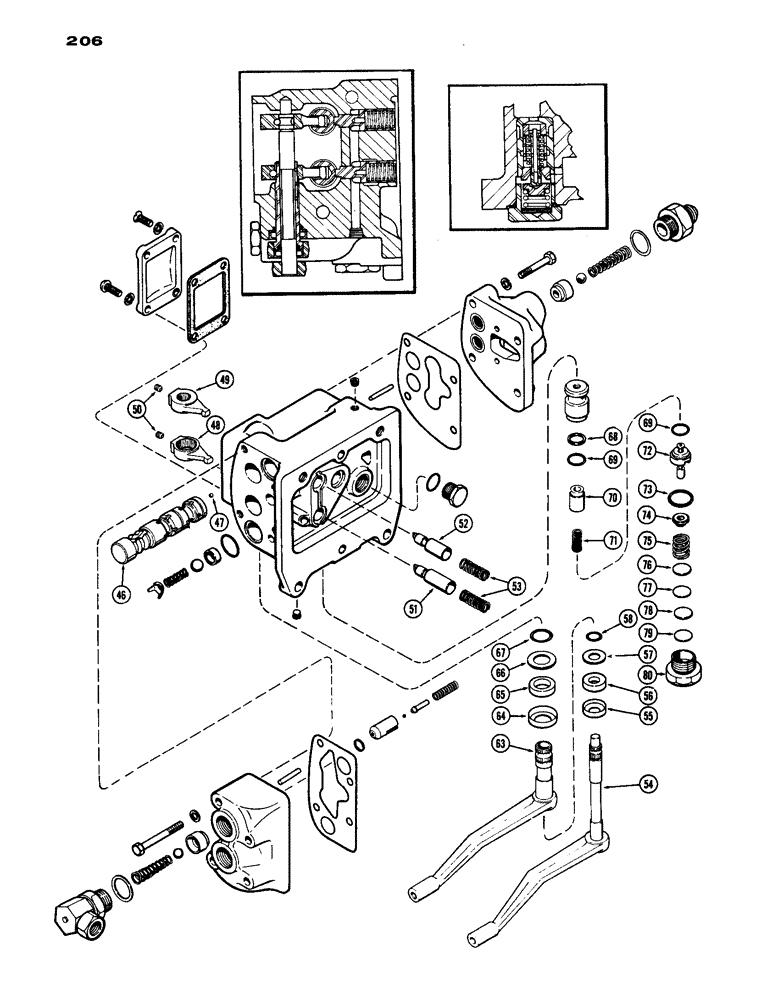

Запчасти Case IH 1070 (206) - A42248 VALVE (08) - HYDRAULICS

A42248

VALVE

ASSY. dual remote, continued from Figure 204, Includes Ref. 46 - 80

1шт.

46

A57538

SPOOL

ASSY. hydraulic valve, Includes Ref. 47

2шт.

47

211-5

BALL,3/16" Dia

., grade 3 3/16" Dia

1шт.

48

A57546

ARM

ASSY. hyd. valve spool shifter lever, inner

1шт.

49

A57547

ARM

ASSY. hyd. valve spool shifter lever, outer, Includes Ref. 50

1шт.

50

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW set, hex. sckt. hdless, cup pt.

1шт.

51

A57554

PLUNGER

hyd. valve spool, inner

1шт.

52

A57555

PLUNGER

hyd. valve spool, outer

1шт.

53

A30883

SPRING

hyd. valve spool plunger

2шт.

54

A60393

SHAFT

valve shifter lever, outer

1шт.

55

A30875

RETAINER

felt washer, outer shifter shaft

1шт.

Part of dual remote valve repair kit P/N A42882

1шт.

56

A30853

WASHER

felt, outer shifter shaft

1шт.

Part of dual remote valve repair kit P/N A42882

1шт.

57

A27409

WASHER

outer shifter shaft seal

1шт.

Part of dual remote valve repair kit P/N A42882

1шт.

58

A64836

O-RING,0.487" ID x 0.693" OD

3/32 x 1/2 x 11/16"

1шт.

Part of dual remote valve repair kit P/N A42882

1шт.

63

A60391

SHAFT

valve shifter lever, inner

1шт.

64

A30880

RETAINER

felt washer, inner shifter shaft

1шт.

Part of dual remote valve repair kit P/N A42882

1шт.

65

A30879

WASHER

felt, inner shifter shaft

1шт.

Part of dual remote valve repair kit P/N A42882

1шт.

66

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER inner shifter shaft

1шт.

Part of dual remote valve repair kit P/N A42882

1шт.

67

A64837

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/32 x 3/4 x 15/16"

1шт.

Part of dual remote valve repair kit P/N A42882

1шт.

68

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

pilot relief valve

1шт.

Part of dual remote valve repair kit P/N A42882

1шт.

69

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

5/8 x 3/4 x 1/16"

2шт.

Part of dual remote valve repair kit P/N A42882

1шт.

70

A57553

PISTON

pilot relief valve

1шт.

71

A34382

SPRING

pilot relief valve, 1" free length, 15/32" O.D.

1шт.

72

A57556

PISTON

ASSY. pilot relief valve

1шт.

73

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 x 59/64 x 1/8"

1шт.

Part of dual remote valve repair kit P/N A42882

1шт.

74

A57558

RETAINER

pilot relief valve spring

1шт.

75

A34492

SPRING

auxiliary valve pilot relief poppet, 23/32" free length, 49/64" O.D.

1шт.

76

A34849

SHIM,.0105" Thk

Pilot relief spring, Refer to tag attached to A42248 valve assy for shim data .0105" Thk

1шт.

Refer to tag attached to A42248 valve assy. For shim data.

1шт.

77

A34390

SHIM,.0329" Thk

Pilot relief spring, Refer to tag attached to A42248 valve assy for shim data .0329" Thk

1шт.

77

A34391

SHIM,.0149" Thk

Pilot relief spring, Refer to tag attached to A42248 valve assy. for shim data .0149" Thk

1шт.

78

A34817

SHIM,.0149" Thk

Pilot relief spring (Blue Japan), Refer to tag attached to A42248 valve assy for shim data .0149" Thk

1шт.

79

A34694

SHIM,.0201" Thk

Pilot relief spring, Refer to tag attached to A42248 valve assy for shim data .0201" Thk

1шт.

80

A34392

PLUG

pilot relief valve

1шт.

A42882

KIT

repair, dual remote valve, Includes Ref. 55 - 58, 64 - 69 and 73, not illustrated

1шт.

A42888

KIT

seal, Includes (1) A34493, (2) A17526 and (1) 218-5008, services pilot relief valve

1шт.
