Запчасти Case IH 1070 (204) - A42248 VALVE (08) - HYDRAULICS

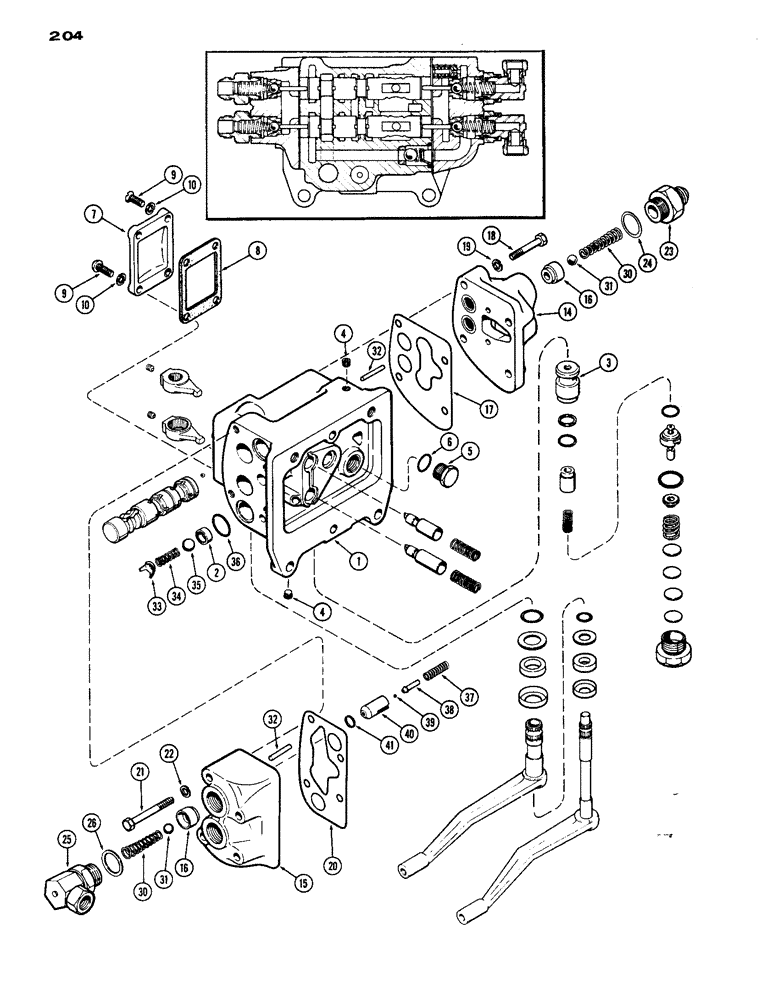

Схема запчастей Case IH 1070 - (204) - A42248 VALVE (08) - HYDRAULICS
3
9
36
4
41
40
16
33
9
18
32
30
26
35
30
7
2
6
24
22
23
39
15
21
14
17
5
16
34
25
10
32
38
4
31
1
19
31
20
10
8
37

Артикул

Название

Примечание

Количество

A42248

VALVE

ASSY. dual remote, not illustrated, Order A44745, Includes Ref. 2 - 41

1шт.

1

A57534

BODY

ASSY. hydraulic valve, Includes Ref. 2, 3 and 4

1шт.

2

A139799

SEAT

ball, check valve

4шт.

3

A57536

SLEEVE

relief valve pilot

1шт.

4

221-849

PLUG,Hex Soc, 1/8"-27

pipe, 1/8" P.T., hex. socket hd.

4шт.

5

86512512

PLUG,7/8" - 14 ORB

Body port, Incl. Ref. 6 Hex Hd, 7/8"-14 ORB

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 x 3/4 x 3/32"

1шт.

7

A57552

CAP

valve body

1шт.

8

A76374

GASKET

valve body cap

1шт.

9

75-414

SCREW,Rd, 1/4" x 7/8"

1/4 x 7/8" N.C. rd. hd. mach.

4шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

14

A57564

VALVE

HEAD ASSY. auxiliary valve, L.H.

1шт.

15

A57565

VALVE

HEAD ASSY. auxiliary valve, R.H., Includes Ref. 16

1шт.

16

NSS

NOT SOLD SEPARAT

SEAT auxiliary valve head

2шт.

17

A57560

GASKET

hyd. valve head, L.H.

1шт.

18

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

3/8 x 2-3/4" N.C. hex., L.H. head

4шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

A57561

GASKET

hyd. valve head, R.H.

1шт.

21

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

R.H. head Hex, 3/8"-16 x 1 3/4", G5

2шт.

21

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2" N.C. hex., R.H. head

2шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

A57569

FITTING

remote valve outlet, L.H. head

2шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 x 59/64 x 1/8"

2шт.

25

A57562

ADAPTER

ASSY. swivel, R.H., Includes Ref. 26

2шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 x 59/64 x 1/8"

1шт.

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32", inside hyd. fitting, not illustrated

1шт.

30

A30877

SPRING

hyd. valve return ball check

4шт.

31

211-13

BALL,1/2" Dia

hyd. valve return 1/2" Dia

4шт.

32

A57559

SPOOL

hyd. valve auxiliary

4шт.

33

A27364

GUIDE

auxiliary valve ball check spring

4шт.

34

A27452

SPRING

check, auxiliary valve outlet, 1-1/8" free length, 35/64" O.D.

4шт.

35

211-15

BALL,5/8" Dia

steel, . 5/8" Dia

4шт.

36

A64434

O-RING,0.93" ID x 1.142" x 0.106"

15/16 x 1-1/8 x 3/32"

4шт.

37

A57396

SPRING

hyd. cylinder relief valve ball, 1-7/64" free length, 21/64" O.D.

2шт.

38

A137594

GUIDE

ball, thermal valve, Replaces A57568

2шт.

39

211-3

BALL,1/8" Dia

steel, . 1/8" Dia

2шт.

40

A137335

SEAT

thermal valve, Replaces A57570

2шт.

41

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

3/8 x 9/16 x 3/32"

2шт.

Выбрано товаров: 38
