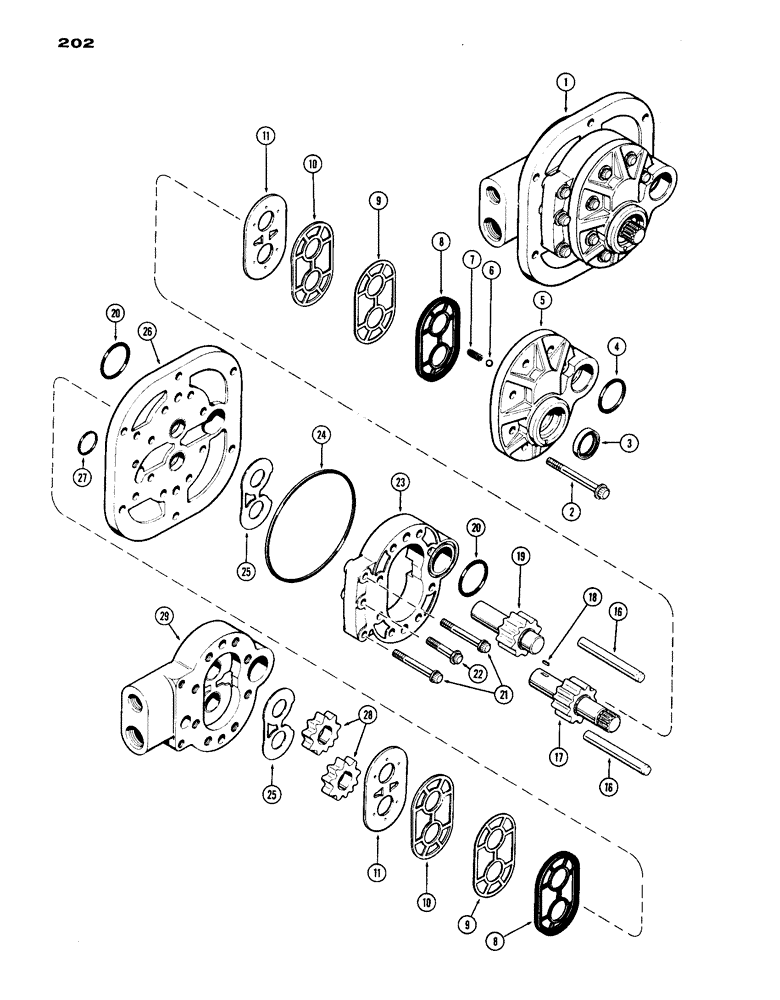

Запчасти Case IH 1070 (202) - HYDRAULIC PUMP (08) - HYDRAULICS

1

A62051

PUMP

PUMP ASSY. hydrualic dual, Replaces A58299, Includes Ref. 2 - 29

1шт.

1

AR62051

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP

1шт.

1

AC62051

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

166-54

12 PT SCREW,Flg, 3/8" - 16 x 3 1/4", Gr 8

SCREW flanged cap, 12 point, to body to covers, 3/8" dia. x 3-1/4"-16 N.C. thread

8шт.

3

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

SEAL pump, main drive shaft

1шт.

Part of pump seal repair kit P/N A42826

1шт.

4

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

O-RING, 1-3/8 x 1-5/8 x 1/8"

1шт.

Part of pump seal repair kit P/N A42826

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE pump front shaft end

1шт.

6

211-6

BALL,7/32" Dia

BALL, , steel - relief valve 7/32" Dia

1шт.

Part of pump seal repair kit P/N A42826

1шт.

7

F9883

SPRING

SPRING pump check valve

1шт.

Part of pump seal repair kit P/N A42826

1шт.

8

A42174

SEAL

SEAL pump diaphragm

2шт.

Part of pump seal repair kit P/N A42826

1шт.

9

A42305

GASKET

GASKET pump gear cavity sealing, metal

2шт.

Part of pump seal repair kit P/N A42826

1шт.

10

A42303

GASKET

GASKET gear cavity sealing back up, Order H273920

2шт.

Part of pump seal repair kit P/N A42826

1шт.

11

A42304

DIAPHRAGM

DIAPHRAGM pump, metal

2шт.

Part of pump seal repair kit P/N A42826

1шт.

16

A42167

PIN dowel, covers to body to flange, 7/16 x 2-3/4"

2шт.

17

NSS

NOT SOLD SEPARAT

GEAR drive, main shaft and pump

1шт.

18

NSS

NOT SOLD SEPARAT

KEY, 1/8 x 3/16 x 3/8"

1шт.

Part of pump seal repair kit P/N A42826

1шт.

19

NSS

NOT SOLD SEPARAT

GEAR idler, main shaft and pump

1шт.

20

A57390

O-RING,0.739" ID x 0.879" OD

O-RING, 1-9/16 x 1-3/4 x 3/32", Order D26820

2шт.

Part of pump seal repair kit P/N A42826

1шт.

21

166-32

12 PT SCREW,Flg, 5/16" - 18 x 2 1/2", Gr 8

SCREW, 5/16-18 x 2-1/2" 12 pt. cap

2шт.

22

166-29

12 PT SCREW,Flg, 5/16" - 18 x 1 3/4", Gr 8

SCREW, 5/16-18 x 1-3/4" 12 pt. cap

1шт.

23

NSS

NOT SOLD SEPARAT

BODY front pump, Order A58299

1шт.

24

A42301

O-RING,5.250" x 5.375" x .062"

O-RING, 5-1/4 x 5-3/8 x 1/16"

1шт.

Part of pump seal repair kit P/N A42826

1шт.

25

D41322

PLATE

PLATE pump thrust

2шт.

Part of pump seal repair kit P/N A42826

1шт.

26

NSS

NOT SOLD SEPARAT

FLANGE pump

1шт.

27

A42302

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

GASKET pressure port

1шт.

Part of pump seal repair kit P/N A42826

1шт.

28

NSS

NOT SOLD SEPARAT

GEAR rear pump displacement

2шт.

29

NSS

NOT SOLD SEPARAT

COVER pump end

1шт.

CASA42826

KIT

pump seal repair, not illustrated, Replaces A42306 Includes Ref. 3, 4, 6 - 11, 18, 20, 24, 25 and 27

1шт.

P/N A42826 is no longer available, order reman pump p/n AR62051

1шт.
