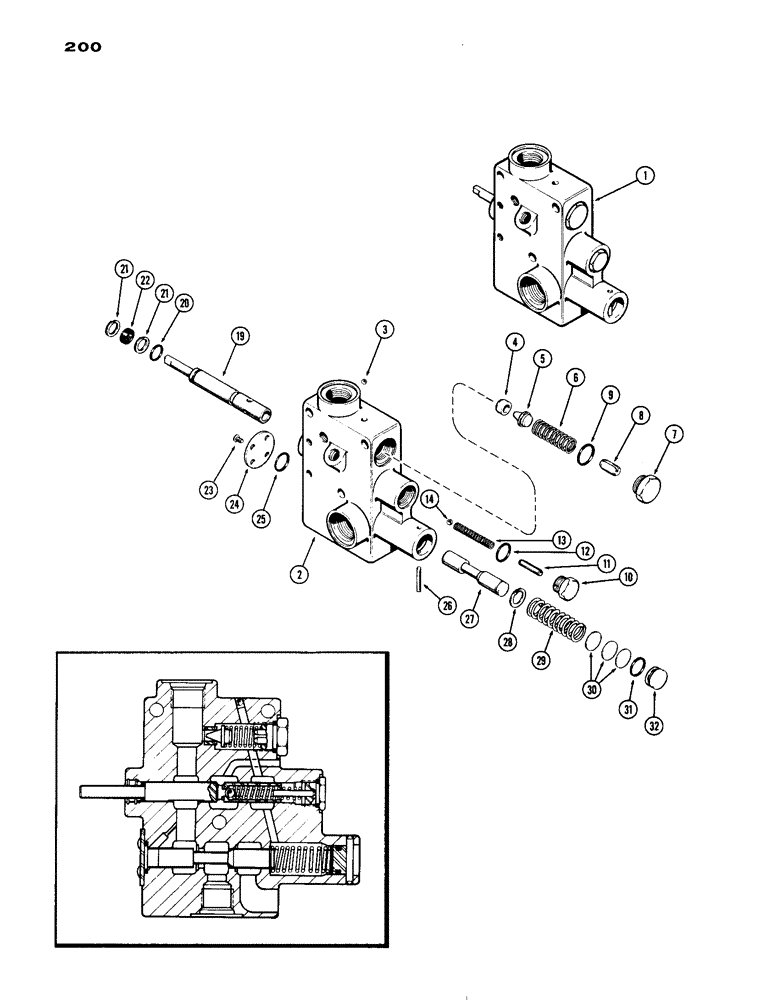

Запчасти Case IH 1070 (200) - A60270 VALVE (08) - HYDRAULICS

1

A65670

VALVE

ASSY. regulator, Replaces A60270, Includes Ref. 2 - 32

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSY. valve, Order A60270, Includes Ref. 3 and 4

1шт.

3

211-7

BALL,1/4" Dia

valve body 1/4" Dia

1шт.

4

A60686

SEAT

relief valve

1шт.

5

A60687

VALVE POPPET

POPPET relief valve

1шт.

6

A60286

SPRING

relief valve, 2-3/16" free length

1шт.

7

A60287

PLUG

ASSY. spring guide, Includes Ref. 8 and 9

1шт.

8

138-199

LOCK PIN,1/2" x 3/4", Slotted

PIN, 1/2" x 3/4", Slotted

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 x 3/4 x 3/32"

1шт.

Part of Case flow divider and P.T.O. control valve repair kit P/N A42884

1шт.

10

A60282

PLUG

ASSY. spring guide

1шт.

11

138-2028

PIN,3/16" x 1 1/4", Coiled

1шт.

13

A60281

SPRING

compression, P.T.O. clutch modulating spool, 2-1/8" free length

1шт.

14

211-8

BALL,9/32" Dia

P.T.O. clutch modulating spool 9/32" Dia

1шт.

19

NSS

NOT SOLD SEPARAT

SPOOL valve, P.T.O. clutch modulating, Order A60270

1шт.

20

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

7/16 x 5/8 x 3/32"

1шт.

Part of Case flow divider and P.T.O. control valve repair kit P/N A42884

1шт.

21

A60280

SNAP RING,#68, .743", Int, Spiral

RING retaining, modulating spool washer

2шт.

22

A60279

WASHER

modulating spool, 5/32 x 11/32 x 3/16"

1шт.

Part of Case flow divider and P.T.O. control valve repair kit P/N A42884

1шт.

23

164-522

SCREW,Btn Hd, #10 - 24 x 1/2"

cap, cap to body, no. 10 dia. x 1/2" N.C., button head hex. socket

4шт.

24

A60277

CAP

pressure regulating spool bore

1шт.

25

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32"

1шт.

Part of Case flow divider and P.T.O. control valve repair kit P/N A42884

1шт.

26

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN roll, 3/16 x 1-1/4"

1шт.

27

NSS

NOT SOLD SEPARAT

SPOOL pressure regulating, Order A60270

1шт.

28

A60273

SNAP RING,#62, Ext

Ring, Snap, , regulating spool #62, Ext

1шт.

29

A60274

SPRING

regulator spool, 2-7/8" free length

1шт.

30

A60275

SHIM,.0164" Thk

Regulating spring (.0184/.0144) .0164" Thk

1шт.

31

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 x 7/8 x 3/32"

1шт.

Part of Case flow divider and P.T.O. control valve repair kit P/N A42884

1шт.

32

A60276

PLUG

regulator spool

1шт.

A42884

KIT

repair, Case flow divider and P.T.O. control valve, Includes Ref. 9, 12, 20, 22, 25 and 31, not illustrated

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 x 21/32 x 3/32"

1шт.

Part of Case flow divider and P.T.O. control valve repair kit P/N A42884

1шт.
