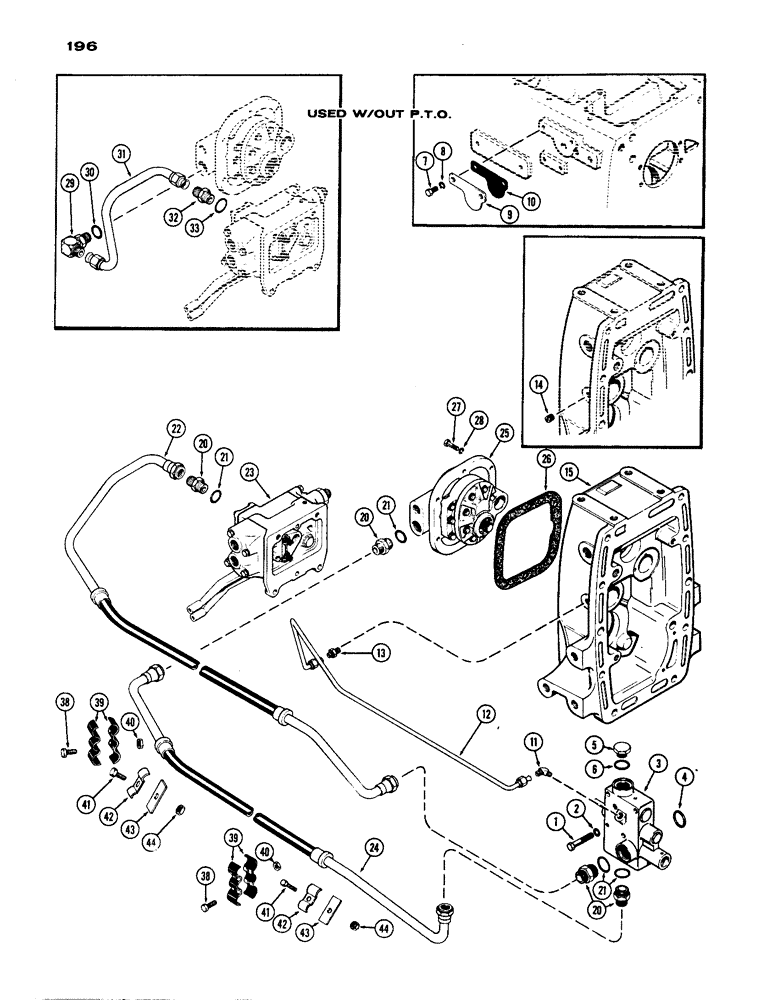

Запчасти Case IH 1070 (196) - HYDRAULIC SYSTEM, MECHANICAL SHIFT (08) - HYDRAULICS

1

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

Used w/ PTO

3шт.

2

92-6

LOCK WASHER,3/8"

Used w/ PTO

3шт.

3

A65670

VALVE

ASSY, Case flow divider and PTO control, used w/ PTO, See Figure 200

1шт.

4

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

Used w/ PTO

1шт.

5

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

ASSY, used w/ PTO, Incl. Ref. 6

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Used w/ PTO

1шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(w/o PTO)

2шт.

8

92-6

LOCK WASHER,3/8"

Used w/o PTO

2шт.

9

A60295

COVER trans. and PTO oil return, used w/o PTO

1шт.

10

A60296

GASKET

Oil return cover, used w/o PTO

1шт.

11

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

Used w/ PTO

1шт.

12

A60289

TUBE

Case flow divider and PTO control valve to housing, used w/ PTO

1шт.

13

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

Used w/ PTO

1шт.

14

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe, PTO and hyd. housing, used w/o PTO

1шт.

15

A59028

HOUSING

PTO and hyd. pump, See Figure 128

1шт.

20

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSY, used w/ PTO, Incl. Ref. 21

4шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Used w/ PTO

1шт.

22

A61861

TUBE ASSY.

Dual remote valve to "Case" flow divider and PTO control valve, used w/ PTO, Replaces A61080 and A60869

1шт.

23

REF

INSTRUCTION

VALVE ASSY, dual remote, See Figures 204 and 206

1шт.

24

A61859

TUBE ASSY.

Case flow divider and PTO control valve to hyd. pump, used w/ PTO, Replaces A61078 and A60868

1шт.

25

REF

INSTRUCTION

PUMP ASSY, hyd. dual, See Figure 202

1шт.

26

A32096

GASKET

Hydraulic dual pump

1шт.

27

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

28

92-6

LOCK WASHER,3/8"

6шт.

29

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, adjustable w/ O-ring and locknut, tube to hyd. pump, used w/o PTO, Incl. Ref. 30

1шт.

30

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Used w/o PTO

1шт.

31

A60294

TUBE

Hyd. pump to dual valve, used w/o PTO

1шт.

32

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSY, used w/o PTO, Incl. Ref. 33

1шт.

33

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Used w/o PTO

1шт.

38

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

Used w/ PTO

4шт.

39

A60862

CLAMP

Tube, used w/ PTO

4шт.

40

9635082

NUT,5/16" - 18, Gr 5

Used w/ PTO

4шт.

41

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Used w/ PTO

2шт.

42

A61272

CLAMP

Tube, used w/ PTO, Replaces A60863

2шт.

43

A60864

PLATE

Mounting, tube clamp, used w/ PTO

2шт.

44

9635082

NUT,5/16" - 18, Gr 5

Used w/ PTO

2шт.
