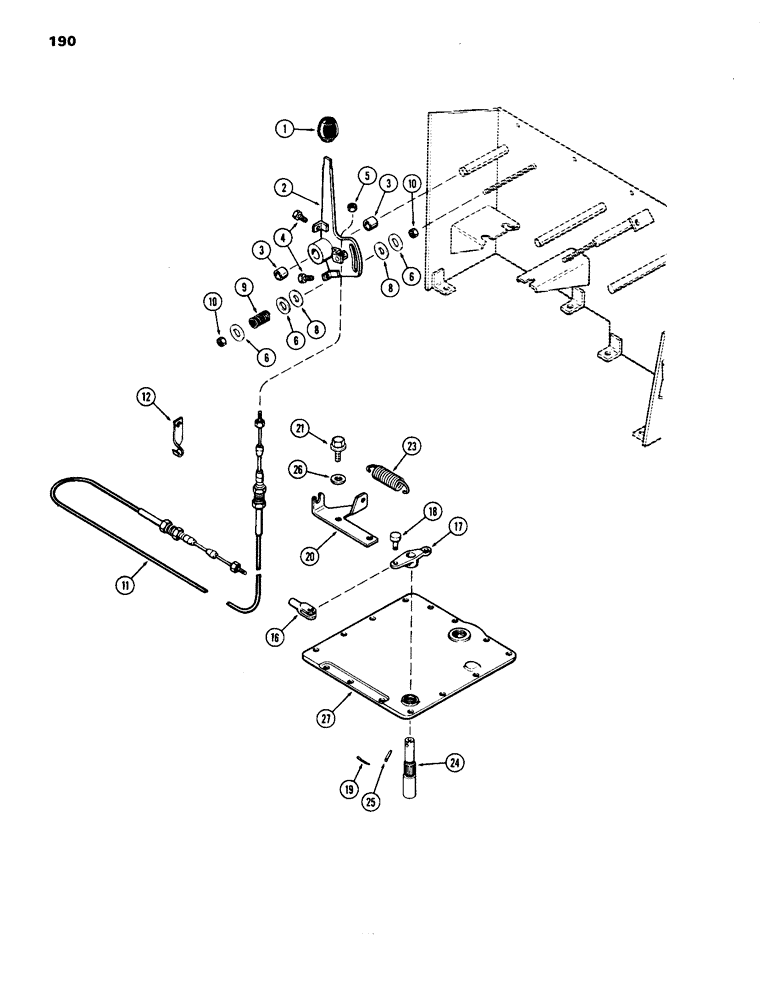

Запчасти Case IH 1070 (190) - DRAFT SENSING CONTROLS (08) - HYDRAULICS

1

A65699

KNOB

sensing hand lever, Replaces A23885 and A62078

1шт.

2

A61076

LEVER

ASSY. hand, draft sensing control, Replaces A59468, Includes Ref. 3

1шт.

3

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

hand lever, sensing

2шт.

4

A59463

BOLT

1/4 x 5/8" N.C. hex., nylon

2шт.

5

193-1000

NUT,Keps, w/LW,#10-32

no. 10 N.F. hex., keps

1шт.

6

195-2035

WASHER,7/16" x 1 1/4" x .083"

7/16 x 1-1/4 x 14 ga.

3шт.

8

A61069

DISC

friction, sensing lever, Replaces A59432

2шт.

9

A62201

SPRING

friction disc, Replaces A26546

1шт.

10

131-1306

JAM NUT,Jam, 3/8"-16

NUT, 3/8" N.C. hex., top face lock

2шт.

11

A59466

CABLE

sensing control

1шт.

12

A59467

CLIP sensing control cable

1шт.

16

213-1

ADJUSTABLE CLEVIS,#10-32

YOKE, 3/16"

1шт.

17

A62176

LEVER

sensing, lower, Replaces A61065 and A61221

1шт.

18

141-1

CLEVIS PIN,3/16" x .580"

PIN clevis, 3/16"

1шт.

19

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

20

A61064

BRACKET

sensing cable, lower

1шт.

21

193-536

BOLT, 3/8 x 1-1/8" N.C. hex., sems

1шт.

23

A59470

SPRING

sensing control

1шт.

24

A59599

SHAFT manual control sensing

1шт.

25

138-2009

PIN,3/16" x 1", Coiled

1шт.

26

195-21

WASHER,5/16"

5/16 x 7/8 x 1/16"

2шт.

27

A59598

COVER

rockshaft housing

1шт.
