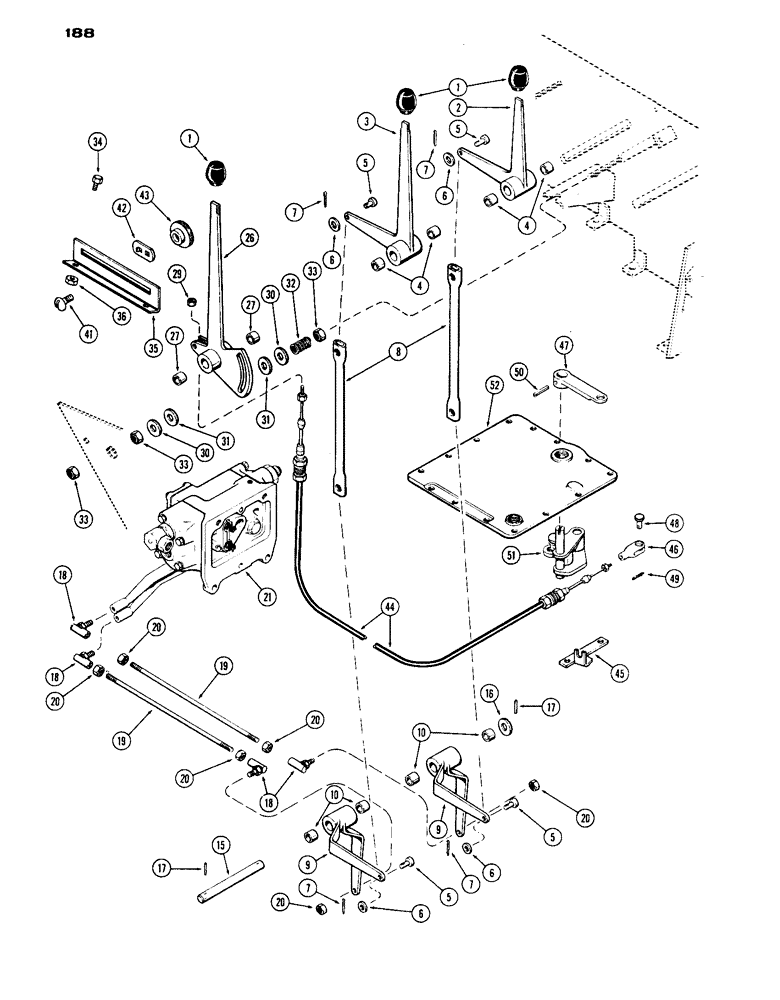

Запчасти Case IH 1070 (188) - REMOTE HYDRAULIC CONTROLS (08) - HYDRAULICS

1

A65699

KNOB

hand lever, Replaces A23885 and A62078

3шт.

2

A63543

LEVER

ASSY. remote, inner, Replaces A59525

1шт.

3

A59523

LEVER

ASSY. remote, outer, Order A63542, Includes Ref. 4

1шт.

4

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

remote leverrs

2шт.

5

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

4шт.

6

195-21

WASHER,5/16"

11/32 x 11/16 x 1/16"

4шт.

7

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

8

A61659

ROD

LINK remote levers, upper, Replaces A59531

2шт.

9

A59527

LEVER ASSY. remote, bellcrank, Includes Ref. 10

2шт.

10

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

remote bellcrank lever

2шт.

15

A59529

SHAFT

lever, remote bellcrank

1шт.

16

195-41

WASHER,5/8"

1шт.

17

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

PIN, , Levers to shaft, shaft to frame 1/8" x 1 1/8", Slotted

2шт.

18

A60604

BALL JOINT

JOINT ball, remote lever lower rod, 5/16"

4шт.

19

A59519

ROD

remote lever, lower

2шт.

20

25-115

NUT,5/16"-24, G5

5/16" NF hex

6шт.

21

A42248

VALVE

ASSY. dual remote, See Figure 204 and 206

1шт.

26

A61070

LEVER ASSY. hand, D.O.M., Replaces A59275, Includes Ref. 27

1шт.

27

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

D.O.M. hand lever

2шт.

29

193-1000

NUT,Keps, w/LW,#10-32

no. 10 N.F. hex. keps

1шт.

30

195-2035

WASHER,7/16" x 1 1/4" x .083"

7/16 x 1-1/4 x 14 ga.

2шт.

31

A61069

DISC

friction, D.O.M. hand lever, Replaces A59432

2шт.

32

A26546

SPRING

D.O.M. hand lever

1шт.

33

131-1306

JAM NUT,Jam, 3/8"-16

NUT, 3/8" N.C. hex., top face lock

3шт.

34

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

35

A59273

BRACKET

QUADRANT hand lever, D.O.M

1шт.

36

131-113

SPRING NUT,J, Ret, 5/16"-18

5/16" N.C. hex.

2шт.

41

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

42

G15950

STOP

quadrant, D.O.M. hand lever

1шт.

43

G15951

NUT

knurled, D.O.M. hand lever quadrant stop

2шт.

44

A59522

CABLE

D.O.M. control

1шт.

45

A61037

BRACKET

D.O.M. cable, lower

1шт.

46

213-1

ADJUSTABLE CLEVIS,#10-32

YOKE cable to lower lever, 3/16"

1шт.

47

A59521

LEVER

D.O.M., lower

1шт.

48

141-1

CLEVIS PIN,3/16" x .580"

PIN clevis, 3/16"

1шт.

49

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

50

138-2028

PIN,3/16" x 1 1/4", Coiled

1шт.

51

A32310

LINK

draft control, "C"

1шт.

52

A59598

COVER

rockshaft housing

1шт.
