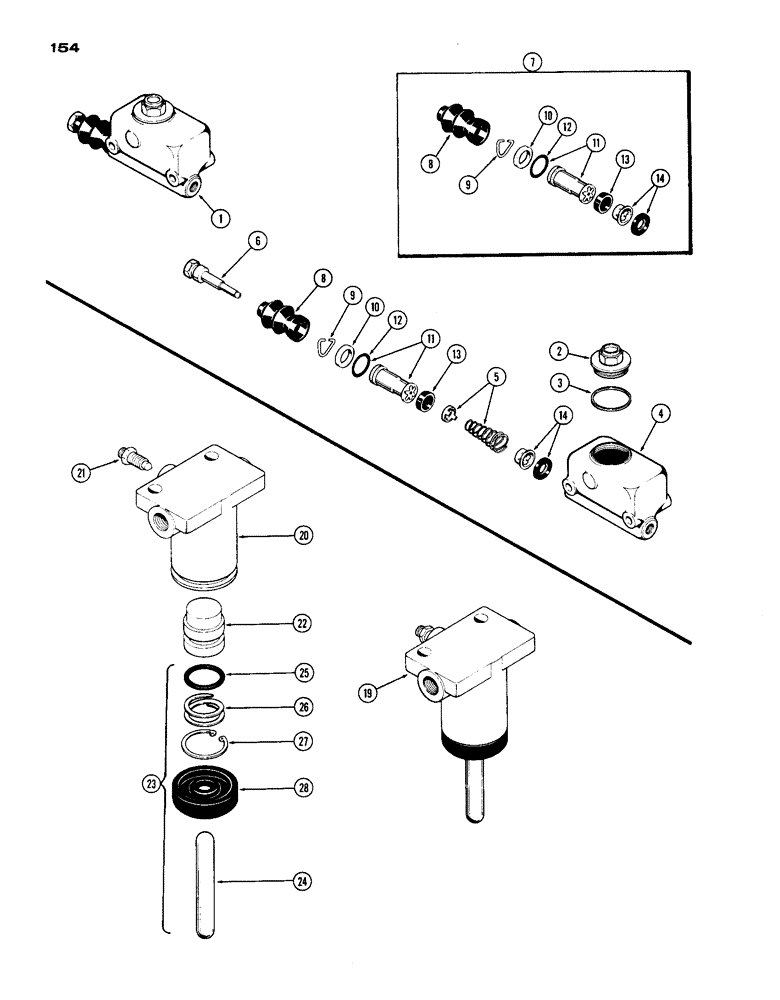

Запчасти Case IH 1070 (154) - A59534 MASTER BRAKE CYLINDER (07) - BRAKES

1

A59534

CYLINDER

ASSY. master brake, Includes Ref. 2 - 14

1шт.

2

A19918

CAP

filler

1шт.

3

A19755

GASKET

filler cap

1шт.

4

NSS

NOT SOLD SEPARAT

BODY master brake, Order A59534

1шт.

5

33352

SPRING

AND RETAINER ASSY. return, piston

1шт.

6

A42371

ROD

push, brake cylinder

1шт.

7

U242369

TRACK SHOE

master brake cylinder repair, Includes Ref. 8 - 14

1шт.

8

A42370

BOOT

master cylinder

1шт.

9

33347

LOCKING DEVICE

LOCKWIRE master cylinder stop plate

1шт.

10

NLS

NO LONGER SERVICED

stop, master cylinder piston

1шт.

11

NSS

NOT SOLD SEPARAT

PISTON ASSY. master cyl., Order A42366, Includes Ref. 12

1шт.

12

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

9/16 x 3/4 x 3/32"

1шт.

13

A42368

CUP ASSY.

CUP primary, master cylinder

1шт.

14

A42367

LOCK VALVE

VALVE ASSY. cylinder

1шт.

19

A62483

CYLINDER

ASSY. brake slave, 7/8" dia., Replaces A59611, Includes Ref. 20 - 28

2шт.

20

NSS

NOT SOLD SEPARAT

BODY brake slave cylinder, Order A62483

1шт.

21

A41491

BLEEDER,1/4" - 28 x 23.37mm

BLEEDER brake slave cylinder

1шт.

22

A43456

PISTON

brake slave cylinder

1шт.

23

A42258

KIT

brake slave cylinder repair, Includes Ref. 24 - 28

1шт.

24

A42254

ROD

push, brake slave cylinder

1шт.

25

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 x 7/8 x 3/32"

1шт.

26

A42252

SEALING RING

RING back-up, brake slave cyl. piston seal

1шт.

27

A42256

SNAP RING,0.901", Int, #90

1шт.

28

A42255

BOOT

brake slave cylinder rod

1шт.
