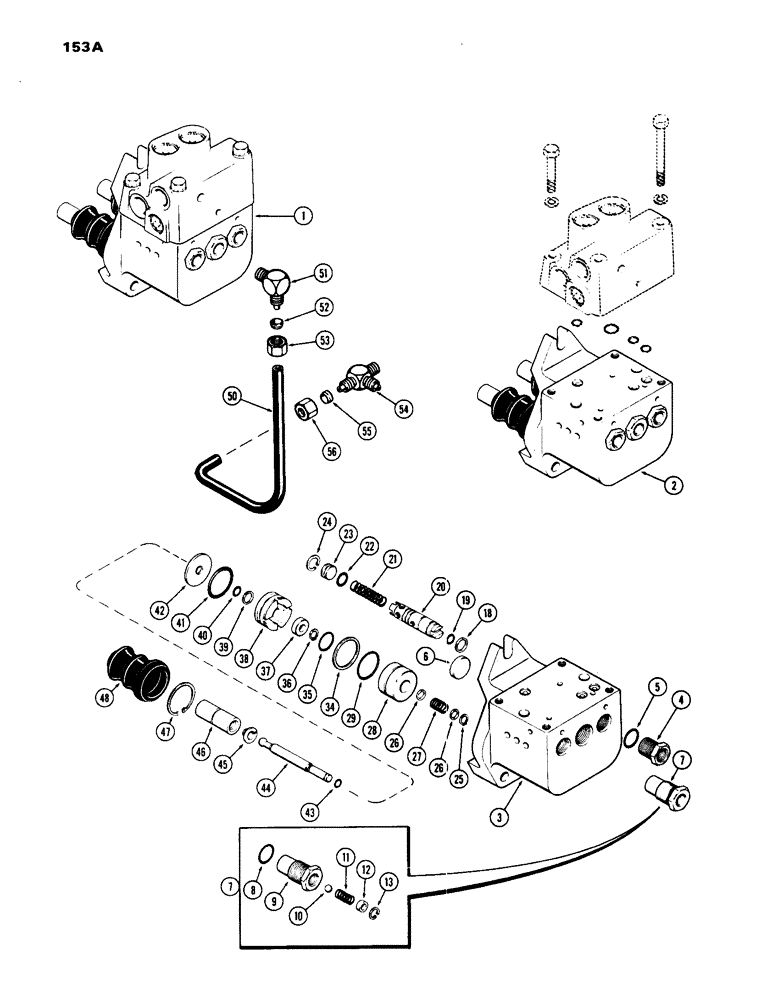

Запчасти Case IH 1070 (153A) - A62074 POWER BRAKE VALVE, USED PRIOR TO TRAC. SER. NO. 8711460 (07) - BRAKES

1

A62074

VALVE

ASSY. power brake, continued from Figure 152, Order G34991, Includes Ref. 2 - 48

1шт.

If the cover on this valve is stamped A60649 use repair kit A42499.

1шт.

2

A62073

SPARE PART

VALVE ASSY. power brake, Order G100060, Includes Ref. 3 - 48

1шт.

3

NSS

NOT SOLD SEPARAT

BODY valve, master cylinder, Order G100060

1шт.

4

A59948

PLUG

reducer, valve body

2шт.

6

41-1016

PLUG,Cup, 1"

cup, valve body, Replaces A37207

1шт.

7

A60643

VALVE

ASSY. sump pressure relief, Order A61508, Includes Ref. 8 - 13

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32"

1шт.

9

NSS

NOT SOLD SEPARAT

BODY sump relief valve, Order A60643

1шт.

10

211-11

BALL,3/8" Dia

relief valve, . 3/8" Dia

1шт.

11

A60644

SPRING compression sump pressure relief, 25/32" free length

1шт.

12

A59946

WASHER, 1/4 x 27/64 x 5/32"

1шт.

13

A59947

SNAP RING,0.453", Int, #45

Ring, Snap, , sump pressure relief 0.453", Int, #45

1шт.

18

A59951

RING

sealing, boost spool

2шт.

Part of power brake valve repair kit P/N A42499

1шт.

19

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

2шт.

Part of power brake valve repair kit P/N A42499

1шт.

20

A61104

SPOOL

boost, Order G100482

2шт.

21

A59950

SPRING

boost spool, 1-3/4" free length

2шт.

22

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

7/16 x 5/8 x 3/32"

2шт.

Part of power brake valve repair kit P/N A42499

1шт.

23

A59952

PLUG boost spool

2шт.

24

G46147

SNAP RING,0.625", Int, #62

Ring, Snap, , boost spool plug 0.625", Int, #62

2шт.

25

G10659

SNAP RING,#31, Ext

Ring, Snap, , retainer, piston #31, Ext

2шт.

26

A65936

COLLAR

RETAINER spring, Replaces A59958

4шт.

27

A59957

SPRING

piston, 21/32" free length

2шт.

28

A59953

PISTON

power brake

2шт.

29

A59954

O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro

1-3/16 x 1-5/16 x 1/16"

2шт.

Part of power brake valve repair kit P/N A42499

1шт.

34

A59955

SEALING RING

RING sealing, piston, rectangular

2шт.

Part of power brake valve repair kit P/N A42499

1шт.

35

F8222

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3/4 x 7/8 x 1/16", Replaces T22211

2шт.

Part of power brake valve repair kit P/N A42499

1шт.

36

G10659

SNAP RING,#31, Ext

Ring, Snap, , piston seal washer #31, Ext

2шт.

37

A59959

WASHER

seal, piston

2шт.

38

A62072

SEAT

STOP piston, Replaces A61519

2шт.

39

A59961

RING

back up, piston stop

2шт.

Part of power brake valve repair kit P/N A42499

1шт.

40

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

3/8 x 9/16 x 3/32"

2шт.

Part of power brake valve repair kit P/N A42499

1шт.

41

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1-1/4 x 1-1/2 x 1/8"

2шт.

Part of power brake valve repair kit P/N A42499

1шт.

42

A60646

SPACER

RETAINER piston stop

2шт.

43

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

3/16 x 5/16 x 1/16"

2шт.

Part of power brake valve repair kit P/N A42499

1шт.

44

A59963

ROD

piston

2шт.

45

A60647

COLLAR

RETAINER piston rod, nylon

2шт.

Part of power brake valve repair kit P/N A42499

1шт.

46

A59964

CONNECTOR, ELEC

CONNECTOR piston rod

2шт.

47

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, , piston stop 1.50", Int, #150

2шт.

48

A59966

BOOT

piston rod

2шт.

Part of power brake valve repair kit P/N A42499

1шт.

A42499

KIT

repair, power brake valve, Includes Ref. 18, 19, 22, 29, 34, 35, 39, 40, 41, 43, 45 and 48

2шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 x 21/32 x 3/32"

2шт.
