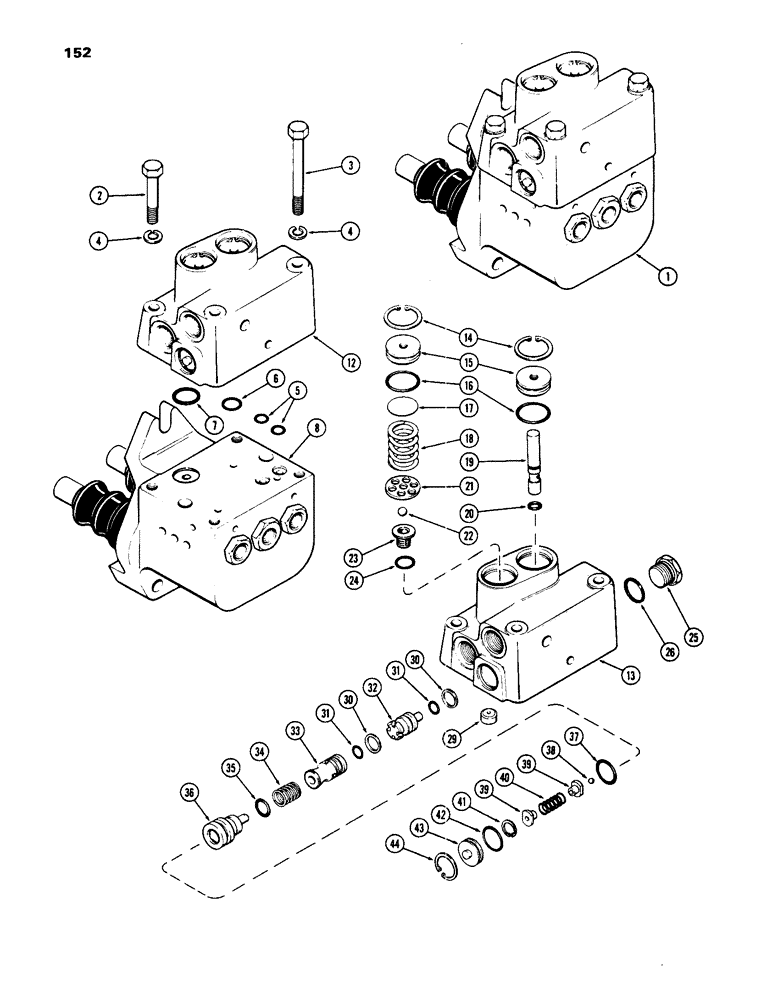

Запчасти Case IH 1070 (152) - A62074 POWER BRAKE VALVE, USED PRIOR TO TRAC. SER. NO. 8711460 (PART NO. STAMPED ON COVER) (07) - BRAKES

1

A62074

VALVE

ASSY. brake, power, Order G34991, Includes Ref. 2 - 44

1шт.

2

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

3

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

5/16 x 3-1/4" N.C. hex.

2шт.

4

92-5

LOCK WASHER,5/16"

4шт.

5

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

2шт.

Part of valve cover repair kit A43709

1шт.

6

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1/2 x 5/8 x 1/16"

1шт.

Part of valve cover repair kit A43709

1шт.

7

F10894

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

3/4 x 7/8 x 1/16"

1шт.

Part of valve cover repair kit A43709

1шт.

8

A62073

SPARE PART

VALVE ASSY. master cylinder brake, Order G100060

1шт.

12

A62434

COVER

ASSY. brake valve, power, Order G34994, Includes Ref. 13 - 44

1шт.

13

NSS

NOT SOLD SEPARAT

BODY valve cover, Order G34994

1шт.

14

A36277

SNAP RING,1.125", Int, #112

pressure relief & influx pressure plug 1.125", Int, #112

2шт.

15

A59981

PLUG

pressure relief and brake influx pressure

2шт.

16

A64434

O-RING,0.93" ID x 1.142" x 0.106"

15/16 x 1-1/8 x 3/32"

2шт.

Part of valve cover repair kit A43709

1шт.

17

A60655

SHIM,.010" Thk

(1-1/10" OD x 1/100" width) .010" Thk

1шт.

18

A59980

SPRING

1-3/16" free length, Order G35350

1шт.

19

A62836

INSERT

LIMITER flow, Replaces A61899

1шт.

20

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 x 3/8 x 1/16"

1шт.

Part of valve cover repair kit A43709

1шт.

21

A59979

WASHER

pressure relief valve

1шт.

22

211-9

BALL,5/16" Dia

pressure relief valve, . 5/16" Dia

1шт.

23

A62433

SEAT

pressure relief valve, 9/16"-18 N.F. thread, Order G35351

1шт.

24

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1/2 x 5/8 x 1/16"

1шт.

25

A61801

PLUG ASSY. pressure regulator, Includes Ref. 26

1шт.

29

A59969

PLUG

valve cover orifice

1шт.

30

A59951

RING

seal, spool and piston

2шт.

Part of valve cover repair kit A43709

1шт.

31

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

2шт.

Part of valve cover repair kit A43709

1шт.

32

A59977

PISTON

power assist

1шт.

33

A62833

SPOOL

pressure regulating, Replaces A61800, Order G35357

1шт.

34

A59975

SPRING

pressure reg. spool, 21/32" free length

1шт.

35

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

7/16 x 5/8 x 3/32"

1шт.

Part of valve cover repair kit A43709

1шт.

36

A60650

SPOOL

pressure release, Order G35357

1шт.

37

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 x 7/8 x 3/32"

1шт.

Part of valve cover repair kit A43709

1шт.

38

211-4

BALL

pressure control, 5/32" dia.

1шт.

39

A59972

RETAINER

pressure control spring

2шт.

40

A60651

SPRING pressure control, 9/16" free length

1шт.

41

A59973

SNAP RING,0.50", Int, #50

Ring, Snap, 0.50", Int, #50

1шт.

42

D32114

O-RING,0.75" ID x 0.875" OD

3/4 x 7/8 x 1/16"

1шт.

Part of valve cover repair kit A43709

1шт.

43

A60652

PLUG

pressure control

1шт.

44

D28157

SNAP RING,0.875", Int, #87

Ring, Snap, , pressure control plug 0.875", Int, #87

1шт.

A43709

SEAL

KIT repair, valve cover, Replaces A42878, Includes Ref. 5, 6, 7, 16, 20, 26, 30, 31, 35, 37 and 42

1шт.

26

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

41/64 x 13/16 x 3/32"

1шт.

Part of valve cover repair kit A43709

1шт.
