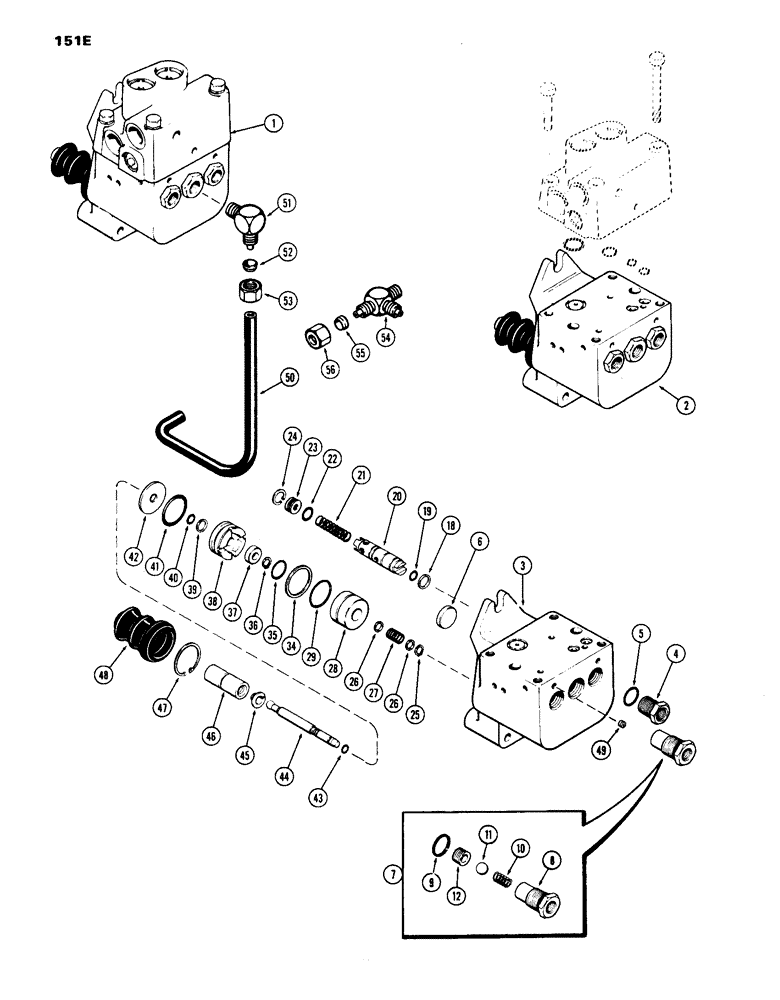

Запчасти Case IH 1070 (151E) - A65055 POWER BRAKE VALVE, 1ST USED TRAC. SER. NO. 8711460 (07) - BRAKES

1

A65055

VALVE

ASSY. power brake, continued from Figure 151C, Order G34991, Includes Ref. 2 - 49

1шт.

2

A65363

VALVE

ASSY. brake, master cylinder, Order G100060, Includes Ref. 3 - 12

1шт.

3

NSS

NOT SOLD SEPARAT

BODY valve, master cylinder, Order G10060

1шт.

4

A59948

PLUG

reducer, valve body

2шт.

6

41-1016

PLUG,Cup, 1"

cup, valve body

1шт.

7

A61508

VALVE

ASSY. sump pressure relief, Includes Ref. 8 - 12

1шт.

8

NSS

NOT SOLD SEPARAT

BODY relief valve, Order A61508

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32"

1шт.

Part of repair kit P/N A43710

1шт.

10

A61510

SPRING

compression, 21/32" free length

1шт.

11

211-12

BALL,7/16 Dia

7/16" dia.

1шт.

12

A61511

SEAT

relief valve

1шт.

18

A59951

RING

sealing, boost spool

2шт.

Part of repair kit P/N A43710

1шт.

19

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

2шт.

Part of repair kit P/N A43710

1шт.

20

A61104

SPOOL

boost, Order G100482

2шт.

21

A59950

SPRING

compression, 1-3/4" free length

2шт.

22

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

7/16 x 5/8 x 3/32"

2шт.

Part of repair kit P/N A43710

1шт.

23

A64911

PLUG

boost spool

2шт.

24

G46147

SNAP RING,0.625", Int, #62

Ring, Snap, , boost spool plug 0.625", Int, #62

2шт.

25

G10659

SNAP RING,#31, Ext

Ring, Snap, , piston retainer #31, Ext

2шт.

26

A59958

RETAINER

spring, Order A65936

4шт.

27

A59957

SPRING

piston, 21/32" free length

2шт.

28

A59953

PISTON

power brake

2шт.

29

A59954

O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro

1-3/16 x 1-5/16 x 1/16"

2шт.

Part of repair kit P/N A43710

1шт.

34

A59955

SEALING RING

RING sealing, piston, rectangular

2шт.

Part of repair kit P/N A43710

1шт.

35

F8222

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3/4 x 7/8 x 1/16"

2шт.

Part of repair kit P/N A43710

1шт.

36

G10659

SNAP RING,#31, Ext

Ring, Snap, , piston seal washer #31, Ext

2шт.

37

A64912

WASHER

seal, piston

2шт.

38

A62072

SEAT

STOP piston

2шт.

39

A59961

RING

back up, piston stop

2шт.

Part of repair kit P/N A43710

1шт.

40

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

3/8 x 9/16 x 3/32"

2шт.

Part of repair kit P/N A43710

1шт.

41

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1-1/4 x 1-1/2 x 1/8"

2шт.

Part of repair kit P/N A43710

1шт.

42

A60646

SPACER

RETAINER piston stop

2шт.

43

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

3/16 x 5/16 x 1/16"

2шт.

Part of repair kit P/N A43710

1шт.

44

A64913

ROD

piston

2шт.

45

A60647

COLLAR

RETAINER piston rod, nylon

2шт.

Part of repair kit P/N A43710

1шт.

46

A59964

CONNECTOR, ELEC

CONNECTOR piston rod, Includes Ref. 47, 48 and 49

2шт.

47

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, , piston stop 1.50", Int, #150

2шт.

48

A59966

BOOT

piston rod

2шт.

Part of repair kit P/N A43710

1шт.

49

221-1850

PLUG,Hex Soc, 1/16"-27

pipe, 1/16" N.F.

7шт.

50

A60770

TUBE

relief valve pressure, 50" long

1шт.

51

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

ASSY. 90 deg., 3/8" tube x 1/4" P.T., Includes Ref. 52 and 53

1шт.

52

222-5186

SLEEVE,3/8" Tube

for 3/8" Tube

1шт.

53

222-5181

NUT,9/16"-24

NUT, for 3/8" tube

1шт.

54

222-5120

TEE,7/16"-24 x 1/4" NPT Run

ASSY., 3/8" tube x 1/4" P.T., Includes Ref. 55 and 56

1шт.

55

222-5186

SLEEVE,3/8" Tube

for 3/8" Tube

2шт.

56

222-5181

NUT,9/16"-24

NUT, for 3/8" tube

2шт.

A43710

KIT

repair, Includes Ref. 5, 9, 18, 19, 22, 29, 34, 35, 39, 40, 41, 43, 45 and 48

2шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 x 21/32 x 3/32"

2шт.

Part of repair kit P/N A43710

1шт.
