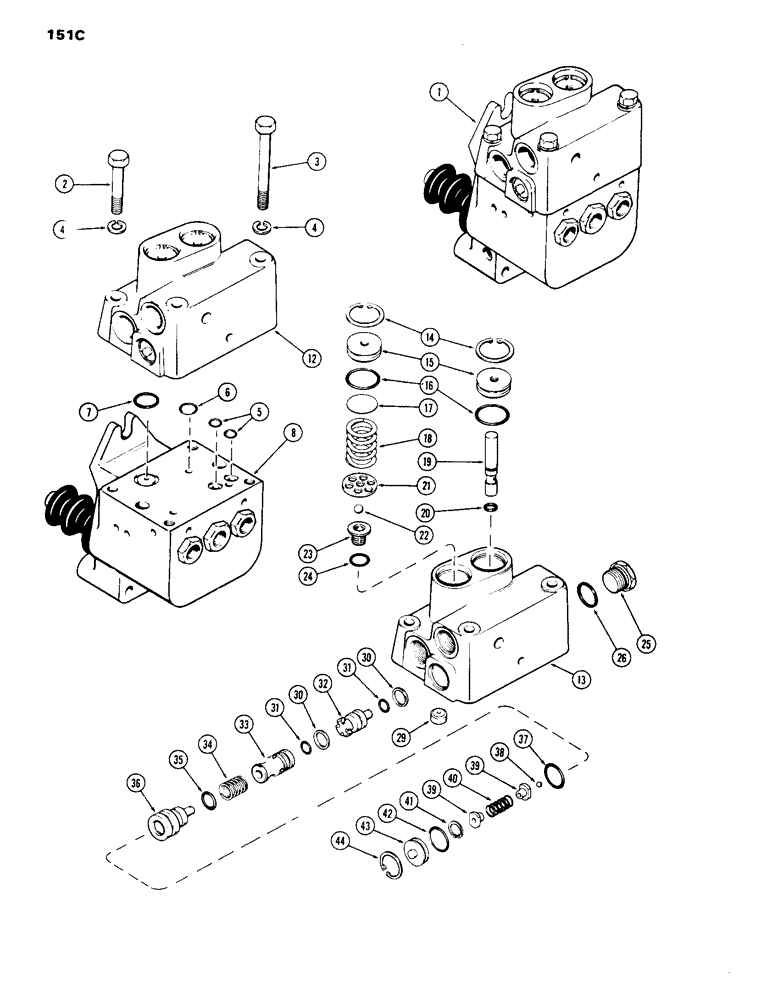

Запчасти Case IH 1070 (151C) - A65055 POWER BRAKE VALVE, 1ST USED TRAC. SER. NO. 8711460 (PART NO. STAMPED ON COVER) (07) - BRAKES

1

A65055

VALVE

ASSY. power brake, Replaces A62074, Order G34991, Includes Ref. 2 - 44

1шт.

2

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

3

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

5/16 x 3-1/4" N.C. hex

2шт.

4

92-5

LOCK WASHER,5/16"

4шт.

5

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

2шт.

Part of repair kit A43709

1шт.

6

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1/2 x 5/8 x 1/16"

1шт.

Part of repair kit A43709

1шт.

7

F10894

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

3/4 x 7/8 x 1/16"

1шт.

Part of repair kit A43709

1шт.

8

A65363

VALVE

ASSY. brake, See Figure 151E, Order G100060

1шт.

12

A64914

COVER

ASSY. power brake valve, Order G34994, Includes Ref. 13 - 44

1шт.

13

NSS

NOT SOLD SEPARAT

BODY power brake valve cover, Order G34994

1шт.

14

A36277

SNAP RING,1.125", Int, #112

pressure relief & brake influx pressure plug 1.125", Int, #112

2шт.

15

A59981

PLUG

pressure relief and brake influx pressure

2шт.

16

A64434

O-RING,0.93" ID x 1.142" x 0.106"

15/16 x 1-1/8 x 3/32"

2шт.

Part of repair kit A43709

1шт.

17

A61803

SHIM,.100" Thk

(1-1/10" OD x 5/100" width) .100" Thk

1шт.

17

A61802

SHIM,.050" Thk

(1-1/10" OD x 1/10" width) .050" Thk

1шт.

17

A60655

SHIM,.010" Thk

(1-1/10" OD x 1/100" width) .010" Thk

1шт.

18

A59980

SPRING

1-3/16" free length, Order G35350

1шт.

19

A62836

INSERT

LIMITER flow

1шт.

20

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 x 3/8 x 1/16"

1шт.

Part of repair kit A43709

1шт.

21

A59979

WASHER

pressure relief valve

1шт.

22

211-9

BALL,5/16" Dia

pressure relief valve, 5/16" Dia

1шт.

23

A62433

SEAT

pressure relief valve Order G35351

1шт.

24

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1/2 x 5/8 x 1/16"

1шт.

25

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Assy, Incl Ref 26 Hex Soc, 3/4"-16 ORB

1шт.

29

A59969

PLUG

valve cover orifice

1шт.

30

A59951

RING

seal, spool and piston

2шт.

Part of repair kit A43709

1шт.

31

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

2шт.

Part of repair kit A43709

1шт.

32

A59977

PISTON

power assist

1шт.

33

A62833

SPOOL

pressure regulating, Order G35357

1шт.

34

A59975

SPRING

press. regulating spool, 21/32" free length

1шт.

35

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

7/16 x 5/8 x 3/32"

1шт.

Part of repair kit A43709

1шт.

36

A60650

SPOOL

pressure release

1шт.

37

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 x 7/8 x 3/32"

1шт.

Part of repair kit A43709

1шт.

38

211-4

BALL

pressure control, 5/32" dia

1шт.

39

A64916

WASHER

pressure control spring

2шт.

40

A65039

SPRING

check, brake valve, 3/4" free length

1шт.

41

A59973

SNAP RING,0.50", Int, #50

Ring, Snap, 0.50", Int, #50

1шт.

42

D32114

O-RING,0.75" ID x 0.875" OD

3/4 x 7/8 x 1/16"

1шт.

Part of repair kit A43709

1шт.

43

A60652

PLUG

pressure control

1шт.

44

D28157

SNAP RING,0.875", Int, #87

Ring, Snap, , pressure control plug 0.875", Int, #87

1шт.

A43709

SEAL

KIT repair, valve cover, Includes Ref. 5, 6, 7, 16, 20, 26, 30, 31, 35, 37 and 42

1шт.

26

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 x 21/32 x 3/32"

1шт.

Part of repair kit A43709

1шт.
