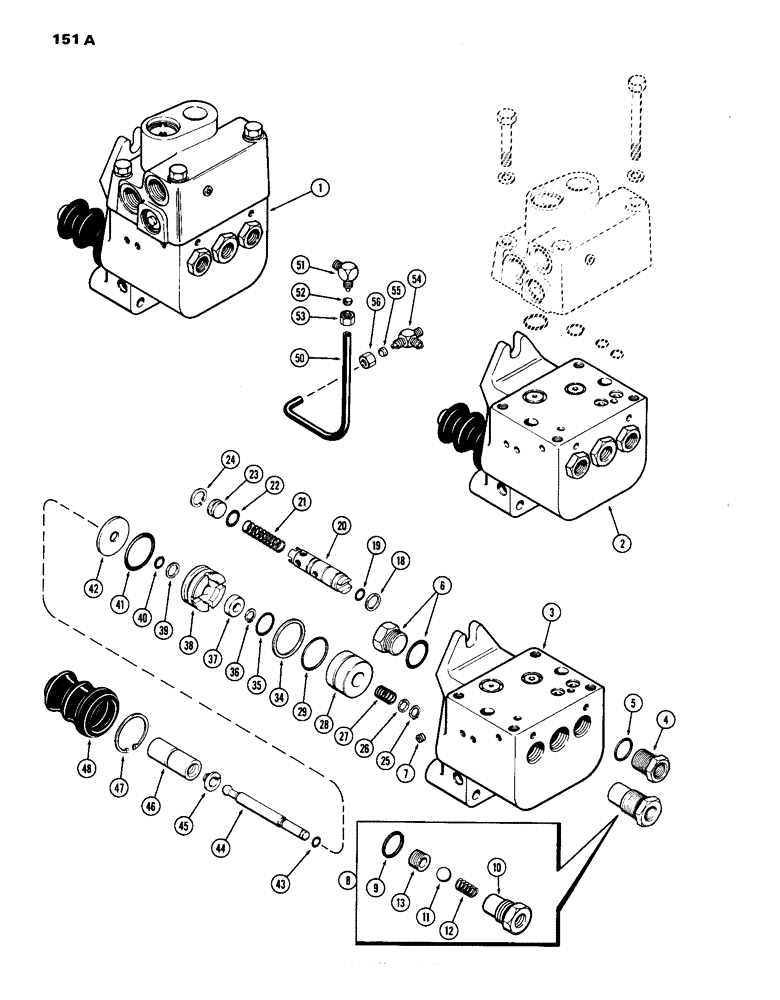

Запчасти Case IH 1070 (151A) - G34991 POWER BRAKE VALVE (07) - BRAKES

1

G34991

VALVE, CHECK

VALVE ASSY. power brake, continued from Figure 150, Includes Ref. 2 - 48

1шт.

2

G100060

VALVE

ASSY. power brake, Includes Ref. 3 - 13

1шт.

3

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

4

A59948

PLUG

reducer, valve body

2шт.

6

86512512

PLUG,7/8" - 14 ORB

Valve body Hex Hd, 7/8"-14 ORB

1шт.

7

221-1850

PLUG,Hex Soc, 1/16"-27

pipe, 1/16" N.F. hex. sckt. hd.

7шт.

8

A61508

VALVE

ASSY. sump pressure relief, Includes Ref. 9 - 13

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32"

1шт.

10

NSS

NOT SOLD SEPARAT

BODY sump relief valve

1шт.

11

211-11

BALL,3/8" Dia

relief, . 3/8" Dia

1шт.

12

A61510

SPRING

compression, 21/32" free length

1шт.

13

A61511

SEAT

relief valve

1шт.

18

A59951

RING

sealing, boost spool

2шт.

Part of repair kit P/N A43710

1шт.

19

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Spool boost

2шт.

Part of repair kit P/N A43710

1шт.

20

G100482

SPOOL

boost

2шт.

21

A59950

SPRING

spool, 1-3/4" free length

2шт.

22

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

7/16 x 5/8 x 3/32"

2шт.

Part of repair kit P/N A43710

1шт.

23

A64911

PLUG

boost spool

2шт.

24

G46147

SNAP RING,0.625", Int, #62

Ring, Snap, , plug 0.625", Int, #62

2шт.

25

G10659

SNAP RING,#31, Ext

Ring, Snap, , piston retaining #31, Ext

2шт.

26

A65936

COLLAR

RETAINER spring

4шт.

27

A59957

SPRING

piston, 21/32" free length

2шт.

28

A59953

PISTON

brake

2шт.

29

A59954

O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro

1-3/16 x 1-5/16 x 1/16"

2шт.

Part of repair kit P/N A43710

1шт.

34

A59955

SEALING RING

RING sealing, piston

2шт.

Part of repair kit P/N A43710

1шт.

35

F8222

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3/4 x 7/8 x 1/16"

2шт.

Part of repair kit P/N A43710

1шт.

36

G10659

SNAP RING,#31, Ext

Ring, Snap, , piston seal washer #31, Ext

2шт.

37

A64912

WASHER

piston seal

2шт.

38

A62072

SEAT

STOP piston

2шт.

39

A59961

RING

back up, piston stop

2шт.

Part of repair kit P/N A43710

1шт.

40

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

3/8 x 9/16 x 3/32"

2шт.

Part of repair kit P/N A43710

1шт.

41

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1-1/4 x 1-1/2 x 1/8"

2шт.

Part of repair kit P/N A43710

1шт.

42

A60646

SPACER

RETAINER piston stop

2шт.

43

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

3/16 x 5/16 x 1/16"

2шт.

Part of repair kit P/N A43710

1шт.

44

A64913

ROD

piston

2шт.

45

A60647

COLLAR

RETAINER piston rod, nylon

2шт.

Part of repair kit P/N A43710

1шт.

46

A59964

CONNECTOR, ELEC

CONNECTOR piston rod

2шт.

47

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, , piston rod 1.50", Int, #150

2шт.

48

A59966

BOOT

piston rod

2шт.

Part of repair kit P/N A43710

1шт.

A43710

KIT

repair, Includes Ref. 18, 19, 22, 29, 34, 35, 39, 40, 41, 43, 45 and 48

2шт.

50

A60770

TUBE

relief valve pressure, 50"

1шт.

51

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

3/8" tube x 1/4" P.T., 90 deg.

1шт.

52

222-5186

SLEEVE,3/8" Tube

for 3/8" Tube

1шт.

53

222-5181

NUT,9/16"-24

NUT, for 3/8" tube

1шт.

54

222-5120

TEE,7/16"-24 x 1/4" NPT Run

3/8" tube x 1/4" P.T.

1шт.

55

222-5186

SLEEVE,3/8" Tube

for 3/8" Tube

1шт.

56

222-5181

NUT,9/16"-24

NUT, for 3/8" tube

1шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 x 21/32 x 3/32"

2шт.
