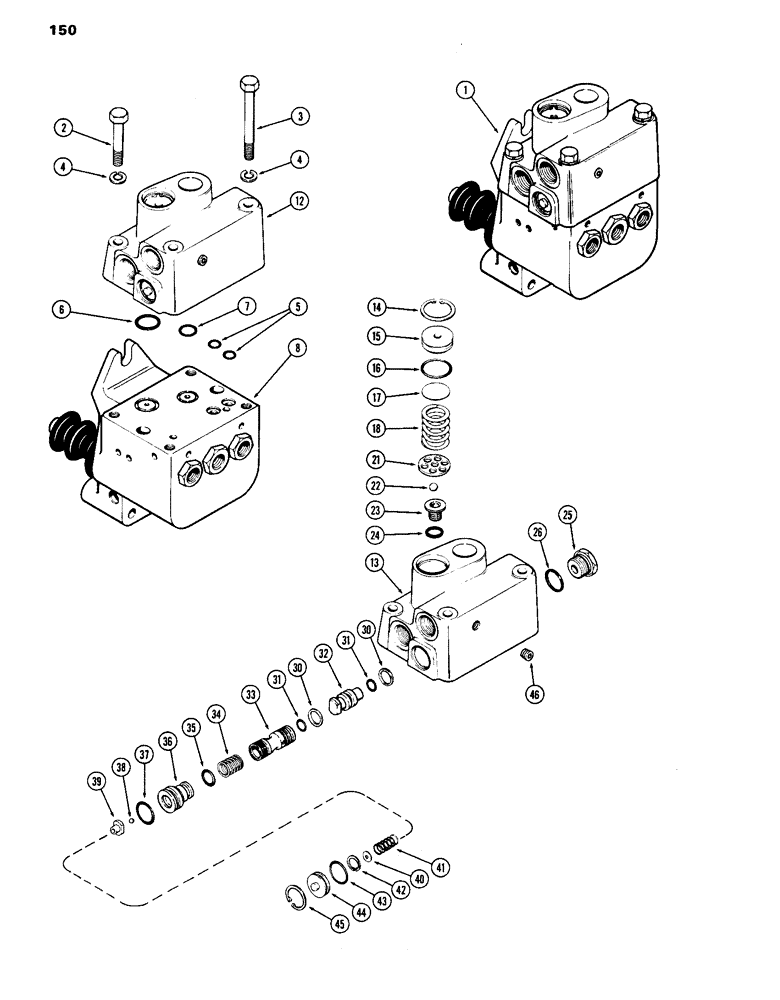

Запчасти Case IH 1070 (150) - G34991 POWER BRAKE VALVE, PART NO. STAMPED ON COVER (07) - BRAKES

1

G34991

VALVE, CHECK

VALVE ASSY. power brake, Replaces A65055, Includes Ref. 2 - 46

1шт.

2

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

3

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

5/16 x 3-1/4" N.C. hex

2шт.

4

92-5

LOCK WASHER,5/16"

4шт.

5

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

2шт.

Part of repair kit A43709

1шт.

6

F10894

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

11/16 x 13/16 x 1/16"

1шт.

Part of repair kit A43709

1шт.

7

D26872

O-RING

1/2 x 5/8 x 1/16"

1шт.

8

G100060

VALVE

ASSY. power brake, See Figure 151A

1шт.

12

G34994

COVER

ASSY. power brake valve, Includes Ref. 13 - 46

1шт.

13

NSS

NOT SOLD SEPARAT

BODY valve cover

1шт.

14

A36277

SNAP RING,1.125", Int, #112

pressure plugs 1.125", Int, #112

1шт.

15

A59981

PLUG

pressure

1шт.

16

A64434

O-RING,0.93" ID x 1.142" x 0.106"

15/16 x 1-1/8 x 3/32"

1шт.

Part of repair kit A43709

1шт.

17

A60655

SHIM,.010" Thk

Pressure adjusting .010" Thk

1шт.

17

A61802

SHIM,.050" Thk

Pressure adjusting, Use (5) A60655 .050" Thk

1шт.

17

A61803

SHIM,.100" Thk

Pressure adjusting, Use (10) A60655 .100" Thk

1шт.

18

G35350

SPRING

relief valve, 1-3/16" free length

1шт.

21

A59979

WASHER

pressure relief valve

1шт.

22

211-259

BALL,5/16" Dia

pressure relief valve

1шт.

23

G35351

SEAT

pressure relief valve

1шт.

24

D26872

O-RING

1/2 x 5/8 x 1/16"

1шт.

25

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Assy, Pressure regulator, Incl Ref 26 Hex Soc, 3/4"-16 ORB

1шт.

30

A59951

RING

seal, spool and piston

2шт.

Part of repair kit A43709

1шт.

31

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

2шт.

Part of repair kit A43709

1шт.

32

G100075

PISTON

power assist

1шт.

33

G35352

SPOOL

pressure regulating

1шт.

34

G35349

SPRING

spool, 21/32" free length

1шт.

35

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

7/16 x 5/8 x 3/32"

1шт.

Part of repair kit A43709

1шт.

36

G35356

SPOOL

pressure release

1шт.

37

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 x 7/8 x 3/32"

1шт.

Part of repair kit A43709

1шт.

38

211-254

BALL,5/32" Dia

pressure control, . 5/32" Dia

1шт.

39

G35353

WASHER

RETAINER pressure spring

1шт.

40

G35355

SHIM

pressure spring

1шт.

41

G35354

SPRING

pressure control, 25/32" free length

1шт.

42

A59973

SNAP RING,0.50", Int, #50

Ring, Snap, 0.50", Int, #50

1шт.

43

D32114

O-RING,0.75" ID x 0.875" OD

3/4 x 7/8 x 1/16"

1шт.

Part of repair kit A43709

1шт.

44

A60652

PLUG

pressure control

1шт.

45

D28157

SNAP RING,0.875", Int, #87

Ring, Snap, , plug 0.875", Int, #87

1шт.

46

221-849

PLUG,Hex Soc, 1/8"-27

1/8" P.T. hex. sckt. hd

1шт.

A43709

SEAL

KIT repair, Includes Ref. 5, 6, 16, 26, 30, 31, 35, 37 and 43

1шт.

26

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

41/64 x 13/16 x 3/32"

1шт.

Part of repair kit A43709

1шт.
