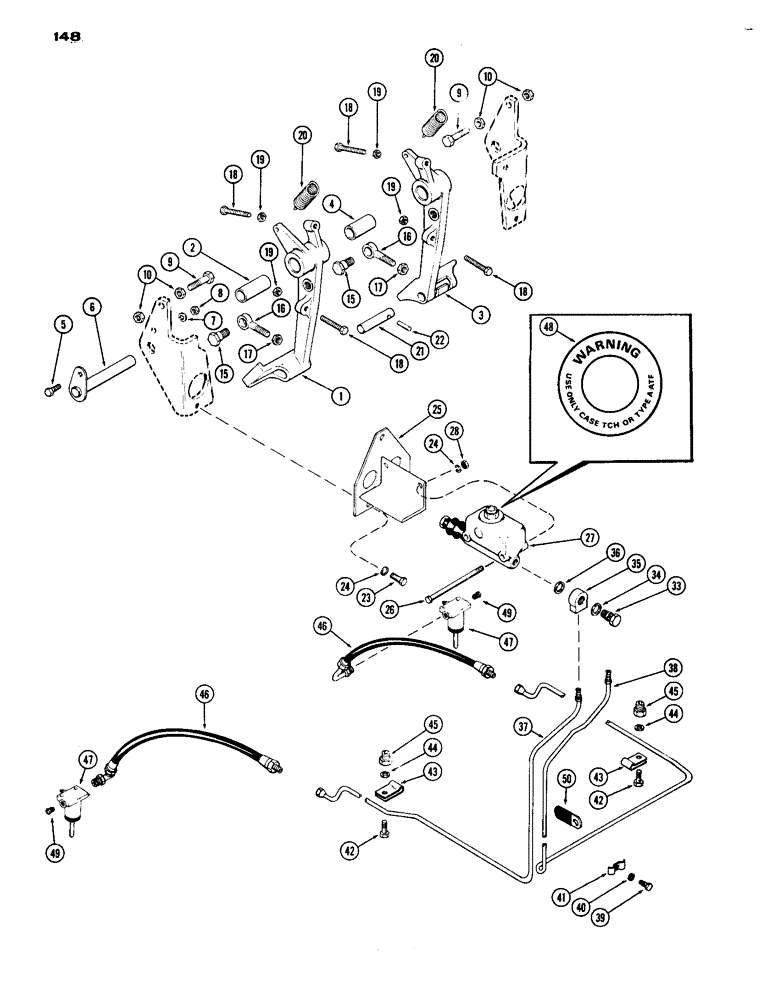

Запчасти Case IH 1070 (148) - HYDRAULIC BRAKE SYSTEM (07) - BRAKES

1

A59394

SPARE PART ASSY, Brake, RH, Includes Ref. 2

1шт.

2

A59398

BUSHING

Brake pedal, RH, 3/4 x 1 x 2-3/5", Order A59475

1шт.

3

A59471

SPARE PART ASSY, Brake, LH, Includes Ref. 4

1шт.

4

A59475

BUSHING

Brake pedal, LH, 3/4 x 1 x 2"

1шт.

5

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

6

A59452

SHAFT

Pivot, brake pedal

1шт.

7

92-5

LOCK WASHER,5/16"

1шт.

8

9635082

NUT,5/16" - 18, Gr 5

Hex

1шт.

9

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

10

25-146

JAM NUT,Jam, 3/8"-16, G5

4шт.

15

A59152

STEP BOLT

Shoulder, brake pedal to master cylinder

2шт.

16

A61269

BOLT

Eye, master brake cylinder push rod

2шт.

17

25-146

JAM NUT,Jam, 3/8"-16, G5

2шт.

18

A59472

BOLT

Hex. hd, brake pedal stop, 5/16 x 2-1/4" N.C.

4шт.

19

25-145

JAM NUT,Jam, 5/16"-18, G5

4шт.

20

A59470

SPRING

Return, brake pedal

2шт.

21

A59454

PIN

Brake pedal lock

1шт.

22

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

Brake pedal

1шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

24

92-6

LOCK WASHER,3/8"

5шт.

25

A59535

SPARE PART Master brake cylinder

1шт.

26

13-688

BULB,Hex, 3/8" - 16 x 5 1/2", Gr 5

2шт.

27

A59534

CYLINDER

ASSY, master brake, See Figure 154

2шт.

28

25-106

NUT,3/8"-16, G5

2шт.

33

A59477

STEP BOLT

Tube fitting connection, Order A12864

2шт.

34

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

GASKET outer, master cylinder, 5/8 x 15/16 x 1/32"

2шт.

35

A18531

FITTING

Brake tube

2шт.

36

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

Inner, master cyl., 1/2 x 5/8 x 1/32", copper

2шт.

37

A59478

TUBE

Hydraulic, brake, RH

1шт.

38

A59479

TUBE

Hydraulic, brake, LH

1шт.

39

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

40

92-4

LOCK WASHER,1/4"

1шт.

41

A60556

SPARE PART Hydraulic tube, brake

1шт.

42

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

43

A59793

SPARE PART Brake tubing

4шт.

44

95-4

WASHER,1/4"

5/16 x 3/4 x 1/16"

4шт.

45

A59481

NUT

Blind fastener, brake tubing, in platform

4шт.

46

A59483

HOSE

Brake

2шт.

47

REF

INSTRUCTION

CYLINDER ASSY, brake slave, 7/8" dia., See Figure 154

2шт.

48

A61114

DECAL

PLATE warning, master brake cylinder

2шт.

49

222-1062

PLUG,7/16"-24, Inv Fl

Steel, 1/4" tube OD

2шт.

50

A22880

CLIP

LH brake tube to LH front firewall to platform bolt

1шт.
