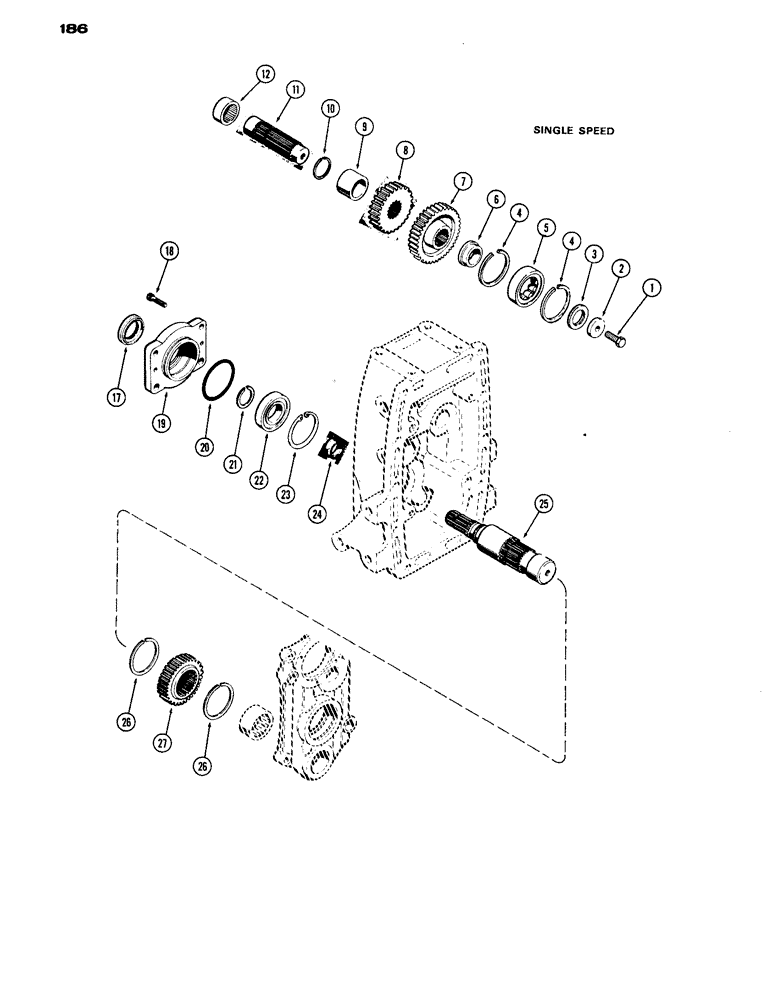

Запчасти Case IH 1070 (186) - P.T.O. OUTPUT AN IDLER SHAFTS, SINGLE SPEED (06) - POWER TRAIN

1

121-415

BOLT,Hex, 1/2" x 1"

1/2 x 1" N.C. hex., jay-lock

1шт.

2

A57462

WASHER

retaining, 2nd idler shaft

1шт.

3

A57509

PLATE

inner race

1шт.

4

A32422

SNAP RING,2.36mm Thk, Int

RING snap, P.T.O. 2nd idler gear

2шт.

5

A32423

BEARING ASSY

BEARING P.T.O. 2nd idler shaft outer race, front

1шт.

6

A57510

BEARING CONE,1.5748" ID x 2.245" OD x 0.74"

BEARING single rib inner race

1шт.

7

A32408

GEAR

driven, P.T.O. 2nd idler, 36T

1шт.

8

A58986

GEAR

P.T.O. 2nd idler driver pinion, 1000 RPM, 28T

1шт.

9

A58207

SPACER

P.T.O. idler shaft, 1000 R.P.M.

1шт.

10

A7339

RING

snap, external, P.T.O. 2nd idler shaft

1шт.

11

A58203

SHAFT

P.T.O. 2nd idler, used prior to trans. ser. no. 2403370, Order A65253 kit, See Figure 184

1шт.

12

A28229

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

BEARING needle, P.T.O. 2nd idler shaft

1шт.

17

A57708

SEAL

oil, 1-3/4 x 2-1/2 x 1/2"

1шт.

18

166-45

12 PT SCREW,Flg, 3/8" - 16 x 1", Gr 8

SCREW, 3/8 x 1" N.C. ferry cap

2шт.

19

A62389

CARRIER bearing, P.T.O. output shaft, 1st used trans. ser. no. 2363134

1шт.

19

A59000

CARRIER bearring, P.T.O. output shaft, used prior to trans. ser. no. 2363134

1шт.

20

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

4 x 4-1/4 x 1/8"

1шт.

21

A27085

RING

snap, external, P.T.O. output shaft, rear

1шт.

22

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING ball, P.T.O. output shaft, rear

1шт.

23

A57921

SNAP RING,3.346", Int, #334

Ring, Snap, , P.T.O. output shaft brg carrier 3.346", Int, #334

1шт.

24

A32419

SLEEVE CYLINDER

SLEEVE P.T.O. output shaft oil seal, 1-5/8 x 1-3/4 x 5/8", 1000 R.P.M. only

1шт.

25

A59026

SHAFT

P.T.O. output, 1000 R.P.M.

1шт.

26

A58234

SNAP RING,#237, 2.295", Ext

RING snap, P.T.O. output shaft

2шт.

27

A59021

GEAR P.T.O. output, 1000 R.P.M., 38 int. and 32 ext. teeth

1шт.
