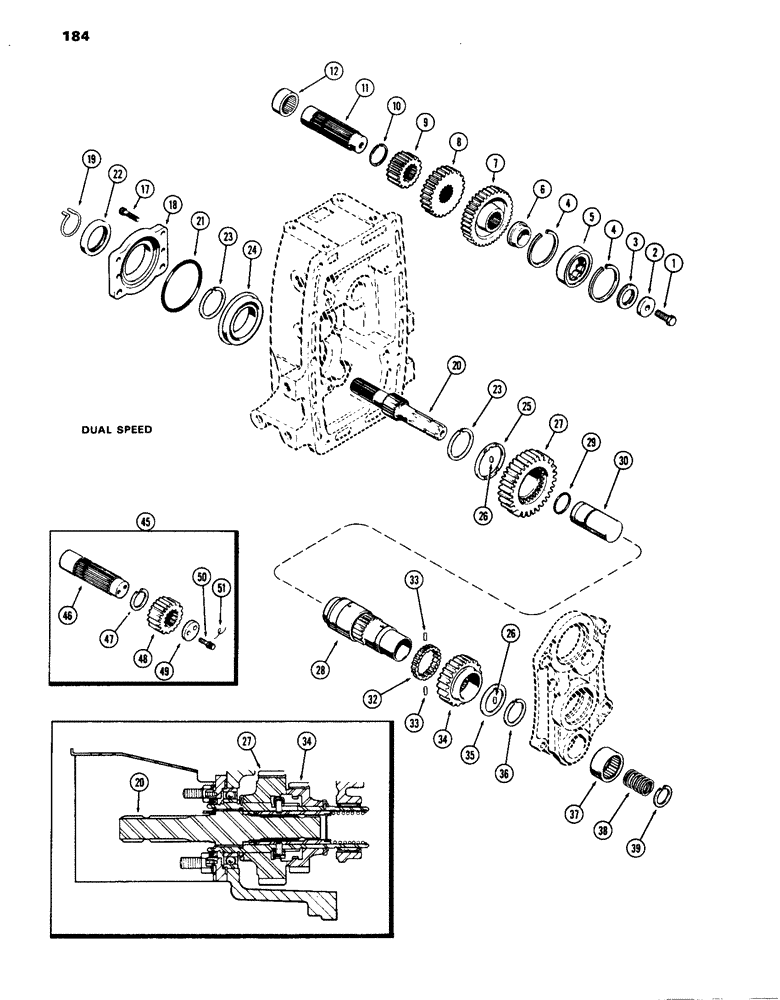

Запчасти Case IH 1070 (184) - P.T.O. OUTPUT & IDLER SHAFTS, DUAL SPEED (06) - POWER TRAIN

1

121-415

BOLT,Hex, 1/2" x 1"

1/2 x 1" N.C. hex., jay-lock

1шт.

2

A57462

WASHER

retaining, 2nd idler shaft

1шт.

3

A57509

PLATE

inner race

1шт.

4

A32422

SNAP RING,2.36mm Thk, Int

RING snap, P.T.O. 2nd idler gear

2шт.

5

A32423

BEARING ASSY

BEARING P.T.O. 2nd idler shaft outer race, front

1шт.

6

A57510

BEARING CONE,1.5748" ID x 2.245" OD x 0.74"

BEARING single rib inner race

1шт.

7

A32408

GEAR

driven, P.T.O. 2nd idler, 36T

1шт.

8

A58986

GEAR

P.T.O. 2nd idler driver pinion, 1000 R.P.M, 28T

1шт.

9

A58985

GEAR

P.T.O. 2nd idler driver pinion, 540 RPM, 19T, used prior to trans. ser. no. 2402370, Order A65253 kit

1шт.

10

A7339

RING

snap, external, P.T.O. 2nd idler shaft

1шт.

11

A58203

SHAFT

P.T.O. 2nd idler, used prior to trans. ser. no. 2402370, Order A65253 kit

1шт.

12

A28229

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

BEARING needle, P.T.O. 2nd idler shaft

1шт.

17

166-43

12 PT SCREW,Flg, 3/8" - 16 x 3/4", Gr 8

SCREW, 3/8 x 3/4" N.C. ferry cap

2шт.

18

A62390

RETAINER

bearing and oil seal, 1st used trans. ser. no. 2363134

1шт.

18

A58222

RETAINER bearing and oil seal, used prior to trans. ser. no. 2363134

1шт.

19

A61029

SNAP RING,3.48mm Thk, Int

snap, retaining, P.T.O. output shaft

1шт.

20

A58214

SHAFT

P.T.O. dual output

1шт.

21

A58224

SEALING RING

tetra, P.T.O. brg. cage, 4-3/4 x 5 x 9/64"

1шт.

22

A58223

OIL SEAL

P.T.O. oil, 2-1/2 x 3-1/4 x 29/64"

1шт.

23

A58217

SNAP RING,#275, 2.594, Ext

RING snap, external, P.T.O. output sleeve

2шт.

24

A58216

BALL BEARING,69.98mm ID x 110mm OD x 20mm W

BEARING rear, P.T.O. output sleeve

1шт.

25

A64309

WASHER,70.28mm ID x 88.9mm OD x 5.59mm Thk

thrust, P.T.O. output sleeve, Replaces A58218

1шт.

26

138-50

LOCK PIN,1/8" x 5/16", Slotted

PIN, 1/8" x 5/16", Slotted

2шт.

27

A58996

GEAR

output sleeve, 540 R.P.M., 41T

1шт.

28

A65997

SLEEVE

P.T.O. output shaft, Replaces A58227

1шт.

29

A59001

O-RING,1.612" ID x 1.818" OD

P.T.O. support, 1-39/64 x 1-51/64 x 3/32"

1шт.

30

A62030

SUPPORT

P.T.O. output shaft sleeve, Replaces A58995

1шт.

32

A58210

COLLAR

P.T.O. shifting

1шт.

33

A62026

PIN

shift collar, Replaces A58228

2шт.

34

A58997

GEAR

output sleeve, 1000 R.P.M., 32T

1шт.

35

A64308

WASHER,58.95mm ID x 76.2mm OD x 5.59mm Thk

thrust, P.T.O. output sleeve, Replaces A58221

1шт.

36

A32300

SNAP RING,#225, 2.174", Ext

RING snap, external, output sleeve

1шт.

37

A58197

NEEDLE BEARING,2.25" ID x 2.6255" OD x 1.25"

BEARING needle, P.T.O. output sleeve

1шт.

38

A58213

SPRING

P.T.O. gear shifting

1шт.

39

A58212

RING

snap, internal, spring retaining

1шт.

45

A65253

GEAR

KIT P.T.O. 2nd idler shaft, w/ gear, Includes Ref. 46 - 51

1шт.

46

A65248

SHAFT

P.T.O. 2nd idler

1шт.

47

A7339

RING

snap, external

1шт.

48

A65252

GEAR

pinion, P.T.O. 2nd idler driver

1шт.

49

A65247

RETAINER

P.T.O. 2nd idler shaft

1шт.

50

A65246

BOLT,Flanged, 3/8" - 16 x 1", Grade 8

retainer to 2nd idler shaft

2шт.

51

391-701

ELECTRICAL WIRE

WIRE lock, 18 ga. x 6"

1шт.
