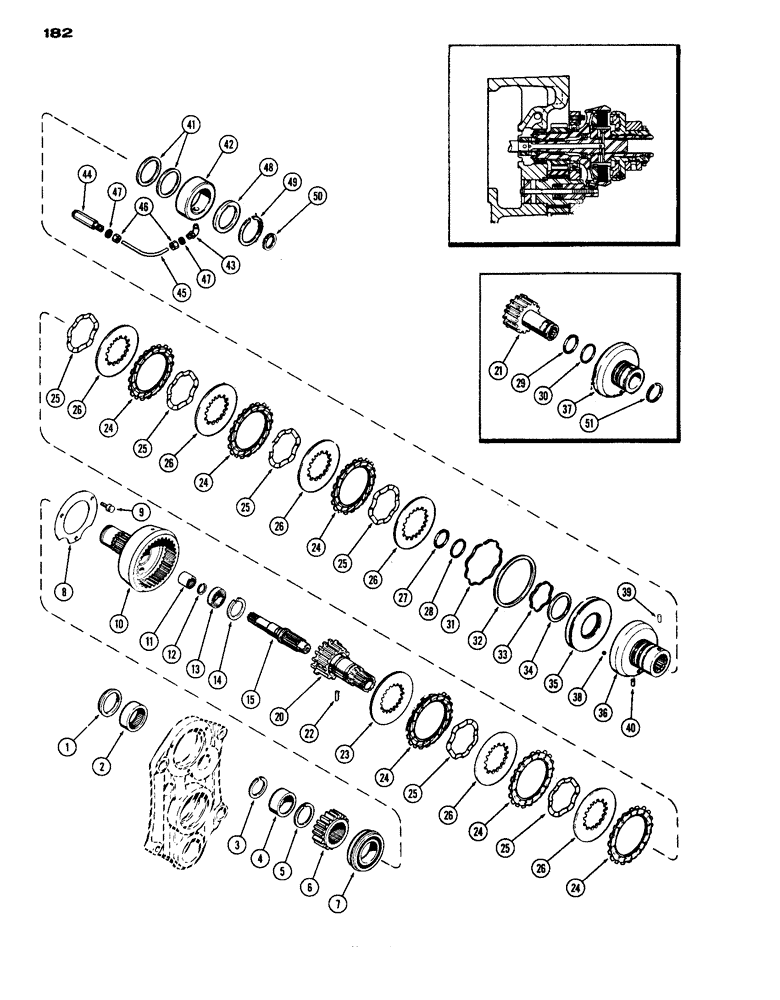

Запчасти Case IH 1070 (182) - P.T.O. CLUTCH AND DRIVE (06) - POWER TRAIN

1

A33007

RING

P.T.O. clutch drum oil restrictor

1шт.

2

A21507

NEEDLE BEARING,Needle, 52.38mm ID x 64.29mm OD x 19.05mm W

BEARING needle, P.T.O. clutch drum

1шт.

3

A33323

RING

snap, retaining, clutch drum bearing race

1шт.

4

A33320

NEEDLE BEARING,1.8125" ID x 2.0625" OD x 1.01"

RACE inner, clutch drum needle bearing

1шт.

5

A32413

SNAP RING,#212, 1.997", Ext

RING snap, pinion retaining

1шт.

6

A32435

GEAR

PINION P.T.O. driver

1шт.

7

A33537

BALL BEARING,54.99mm ID x 90mm OD x 18mm W

BEARING ball, clutch drum, outer

1шт.

8

A59019

RING

clamp, outer bearing retaining

1шт.

9

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

SCREW, 5/16 x 3/4" N.F., ferry hd.

3шт.

10

A61615

DRUM

ASSY. P.T.O. clutch, Replaces A34608, Order A62890, Includes Ref. 11

1шт.

11

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING needle, clutch drum, inner

1шт.

12

A32438

SNAP RING

RING snap, bearing retaining, outer

1шт.

13

A32437

BALL BEARING,24.99mm ID x 47mm OD x 12mm W

BEARING ball, clutch drum, inner

1шт.

14

A32439

RING

snap, bearing retaining, inner

1шт.

15

A59020

SHAFT

drive, hydraulic pump

1шт.

20

A62199

HUB

P.T.O. clutch, w/ external spline, 1st used trans. ser. no. 2353980

1шт.

21

A59023

HUB

P.T.O. clutch, w/o external spline, used prior to trans. ser. no. 2353980, Order 1-A62199 hub, 1-A62200 carrier, (1) A62193 o-ring, (1) A62194 o-ring and (1) A62195 snap ring

1шт.

22

138-58

LOCK PIN,1/8" x 13/16", Slotted

Pin, , clutch hub to pump drive shaft 1/8" x 13/16", Slotted

1шт.

23

A7101

PLATE

backing, P.T.O. clutch

1шт.

24

A59231

PLATE

drive, sintered, P.T.O. clutch, Order (1) A66364 plate and (1) A66365 plate

1шт.

25

A59013

SPRING

P.T.O. clutch separator

6шт.

26

A57170

BRAKE DISC

PLATE driven, steel, P.T.O. clutch

6шт.

27

A62194

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

1-11/16 x 1-1/2 x 3/32", used w/ A62200 carrier

1шт.

28

A62193

O-RING,1.424" ID x 1.63" OD

1-7/16 x 1-5/8 x 3/32", used w/ A62200 carrier

1шт.

29

A59004

O-RING,1.362" ID x 1.568" OD

1-23/64 x 1-9/16 x 3/32", used w/ A59003 carrier

1шт.

30

A57390

O-RING,0.739" ID x 0.879" OD

1-9/16 x 1-3/4 x 3/32", used w/ A59003 carrier, Order D26820

1шт.

31

A59012

SPRING

expander, P.T.O. clutch piston

1шт.

32

A59011

RING

seal, P.T.O. clutch piston

1шт.

33

A59010

SPRING

expander, P.T.O. clutch piston

1шт.

34

A59009

RING

sealing, P.T.O. clutch piston

1шт.

35

A59008

PISTON

P.T.O. clutch

1шт.

36

A62200

CARRIER

P.T.O. clutch piston, w/ internal spline, 1st used trans. ser. no. 2353980

1шт.

37

A59003

CARRIER

P.T.O. clutch piston, w/o internal spline, used prior to trans. ser. no. 2353980) (Order (1) A62199 hub, (1) A62200 carrier, (1) A62193 o-ring, (1) A62194 o-ring and (1) A62195 snap ring

1шт.

38

211-6

BALL,7/32" Dia

clutch piston carrier 7/32" Dia

1шт.

39

135-138

GROOVED PIN,3/16" x 5/8", Type A, Hardened

Pin, Grooved, , shearproof 3/16" x 5/8", Type A, Hardened

1шт.

40

138-2044

PIN,1/16" x 1/2", Coiled

spirol, 1/16 x 1/2"

1шт.

41

A59005

SEAL

RING seal, clutch piston carrier

2шт.

42

A59006

COLLAR

P.T.O. clutch

1шт.

43

222-4047

ELBOW

clutch feed tube, 3/8" tube x 1/4" P.T.

1шт.

44

A59015

CONNECTOR, ELEC

CONNECTOR ASSY. clutch feed tube, in P.T.O. housing

1шт.

45

A62355

TUBE

P.T.O. clutch feed, Replaces A59014, Includes Ref. 46 and 47

1шт.

46

222-114

NUT,5/8"-24

NUT, for 3/8" tube

1шт.

47

222-104

SLEEVE,3/8" Tube

for 3/8" Tube

1шт.

48

A62849

WASHER,58.67mm ID x 76.2mm OD x 6.35mm Thk

retaining, P.T.O. clutch, collar, Replaces A59007

1шт.

49

A32300

SNAP RING,#225, 2.174", Ext

RING snap, P.T.O. clutch piston carrier

1шт.

50

A62195

SNAP RING,#156K, 1.453", Ext, Spiral

RING snap, spirolox, used w/ A62200 carrier

1шт.

51

A26946

RING

snap, external, used w/ A59003 carrier

1шт.
