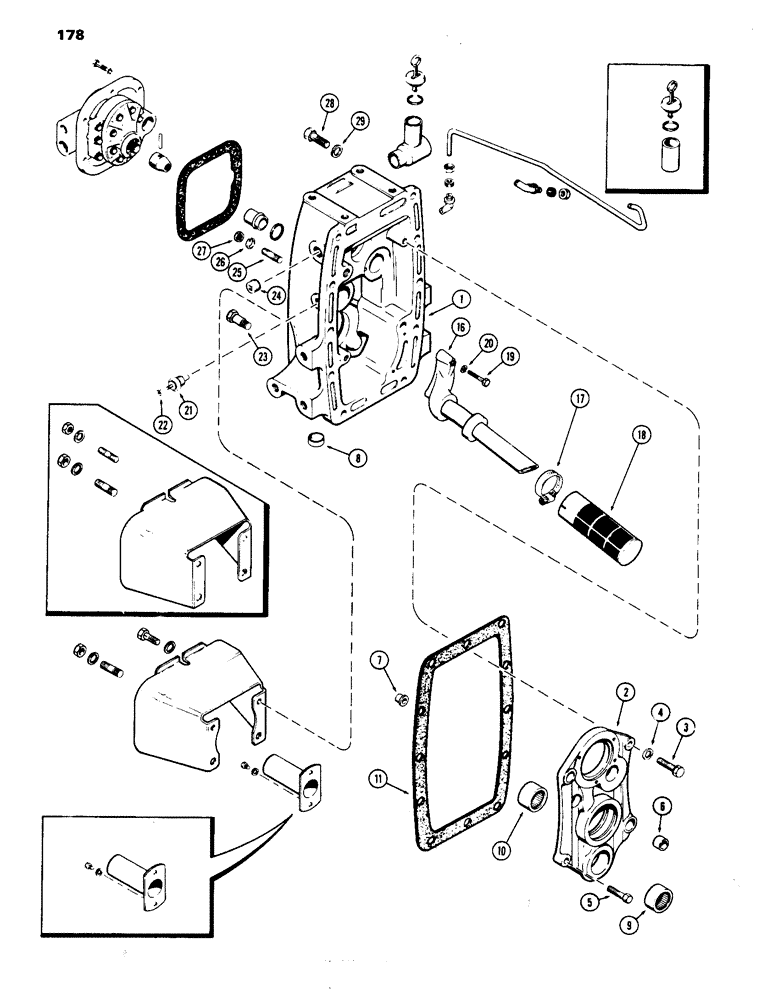

Запчасти Case IH 1070 (178) - P.T.O. HOUSING (06) - POWER TRAIN

A65825

HOUSING

ASSY., casting no. A65824

1шт.

A62190

HOUSING

ASSY., casting no. A62171, Order A65825

1шт.

A59028

HOUSING

ASSY., casting no. A58191, Order A65825, Includes Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING P.T.O. and hyd. pump, Order A65825

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING P.T.O. bearing carrier, Order A65825

1шт.

3

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1/2 x 1-3/4" N.C. hex.

2шт.

4

92-8

LOCK WASHER,1/2"

2шт.

5

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

6

A50011

SLEEVE

dowel, bearing, Serial Range: carrier-hsg.

2шт.

7

A32426

BUSHING

SPACER bearing carrier to hsg., dowel sleeve

2шт.

8

41-1020

PLUG,Cup, 1 1/4"

P.T.O. housing, 1-17/64" cup, Replaces A23468

1шт.

9

A28229

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

BEARING needle, 2nd idler shaft, 1-3/4 x 2-1/8 x 1"

1шт.

10

A58197

NEEDLE BEARING,2.25" ID x 2.6255" OD x 1.25"

BEARING needle, output sleeve, 2-1/4 x 2-5/8 x 1-1/4"

1шт.

11

A32461

GASKET

P.T.O. housing to trans. case

1шт.

16

A61057

TUBE

SCREEN ASSY. hyd. dual pump oil suction, Includes Ref. 17 and 18

1шт.

17

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

1шт.

18

A60299

FILTER STRAINER

SCREEN hyd. dual pump oil suction

1шт.

19

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

20

92-5

LOCK WASHER,5/16"

2шт.

21

A21462

SENDER UNIT

UNIT sensor, trans. temp., Replaces A58984

1шт.

22

129-661

NUT

hex., no. 10-32 brass

1шт.

23

A61670

STEP BOLT

dowel sleeve, special, Order A137225

2шт.

24

221-845

PLUG,Hex Soc, 3/4"-14

P.T.O. housing, R.H. side, 3/4" hex. socket head

1шт.

25

A29396

STUD

5/8" N.C./N.F. x 2-7/8"

2шт.

26

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

27

25-1110

NUT,5/8"-18, G5

5/8" N.F. hex.

2шт.

28

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

6шт.

29

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.
