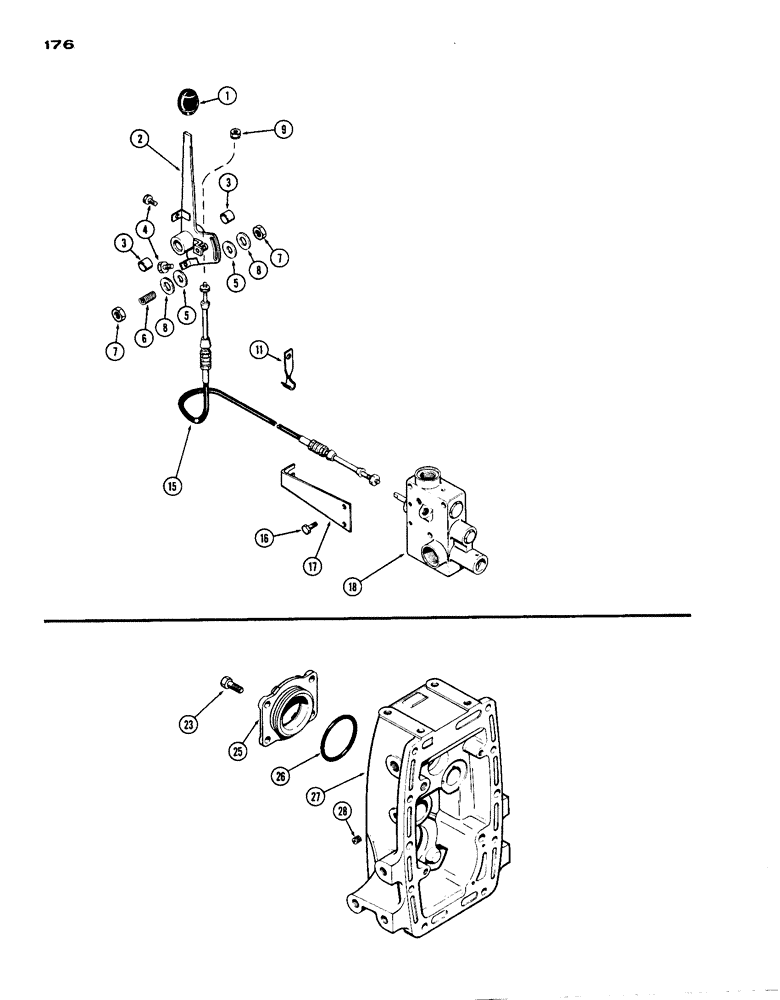

Запчасти Case IH 1070 (176) - P.T.O. CONTROL LINKAGE (06) - POWER TRAIN

1

A62078

KNOB

P.T.O. hand lever, Replaces A23885

1шт.

2

A61072

LEVER

ASSY. P.T.O. hand, w/ bushing, Replaces A59460, Includes Ref. 3

1шт.

3

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

P.T.O. hand lever

2шт.

4

A59463

BOLT

P.T.O. hand lever stop, 1/4 x 5/8", nylon

2шт.

5

A61069

DISC

friction, 25/64 x 1-1/4 x 1/8", Replaces A59432

2шт.

6

26546

SPRING friction disc, P.T.O. hand lever

1шт.

7

131-1306

JAM NUT,Jam, 3/8"-16

NUT hex., friction disc, 3/8" N.C. top face lock

2шт.

8

195-2035

WASHER,7/16" x 1 1/4" x .083"

7/16 x 1-1/4 x 14 ga.

2шт.

9

193-1000

NUT,Keps, w/LW,#10-32

keps, no. 10-32 hex. w/ ext. tooth washer

1шт.

11

A59467

CLIP cable sensing and P.T.O.

1шт.

15

A59466

CABLE

P.T.O. control

1шт.

16

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Bracket to valve body Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

17

A60267

BRACKET

VALVE ASSY Case flow divider and P.T.O. control, See Figure 200 for repairs

1шт.

23

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Cover to hsg., PTO housing used w/o PTO Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

23

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Cover to housing, PTO housing used w/o PTO Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

25

A58193

COVER output shaft opening, P.T.O. housing used w/o P.T.O.

1шт.

26

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

output shaft opening cover, 4 x 4-1/4 x 1/8", P.T.O. housing used w/o P.T.O.

1шт.

27

REF

INSTRUCTION

HOUSING ASSY. hyd. pump, See Figure 178, P.T.O. housing used w/o P.T.O.

1шт.

28

221-841

PLUG

pipe, R.H. side, 1/4" hex. sckt. hd., P.T.O. housing used w/o P.T.O.

1шт.
