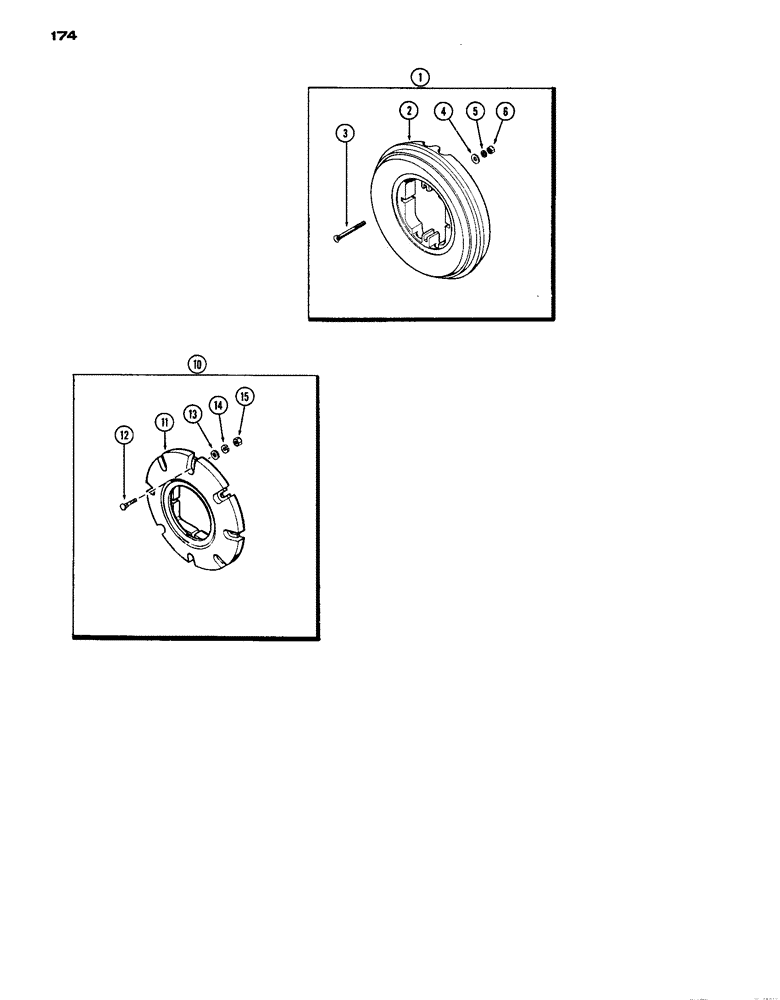

Запчасти Case IH 1070 (174) - REAR WHEEL WEIGHTS (06) - POWER TRAIN

1

A60554M

ATTACHMENT weight, set of 2 rear wheel inner weights, extra heavy, for 30", 34" and 38" universal, machinery item, Includes Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

WEIGHT mounted on inside of each wheel, approx. 395 lbs. each, Order A60554

2шт.

3

111-624

CARRIAGE BOLT,Short NK, 5/8"-11 x 6 1/2", G2

BOLT, 5/8 x 6-1/2" N.C. round head, square neck, used w/ 30", 34" and 38" wheels w/ universal hub

8шт.

4

95-10

WASHER,5/8"

wrought, 11/16 x 1-3/4 x 9/64"

8шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

6

25-1010

NUT,5/8"-11, G5

8шт.

10

A34621M

ATTACHMENT weight, for 30", 34" and 38" wheels, set of 2, approx. 140 lbs. each, machinery item, Includes Ref. 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

WEIGHT rear wheel, Order A34621

2шт.

12

A34619

BOLT carriage, wheel weight, 5/8 x 9" N.C., for 30", 34" and 38" univ. and solid wheels

8шт.

13

95-10

WASHER,5/8"

wrought, 11/16 x 1-3/4 x 9/64"

16шт.

14

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

15

25-1010

NUT,5/8"-11, G5

16шт.
